DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 77

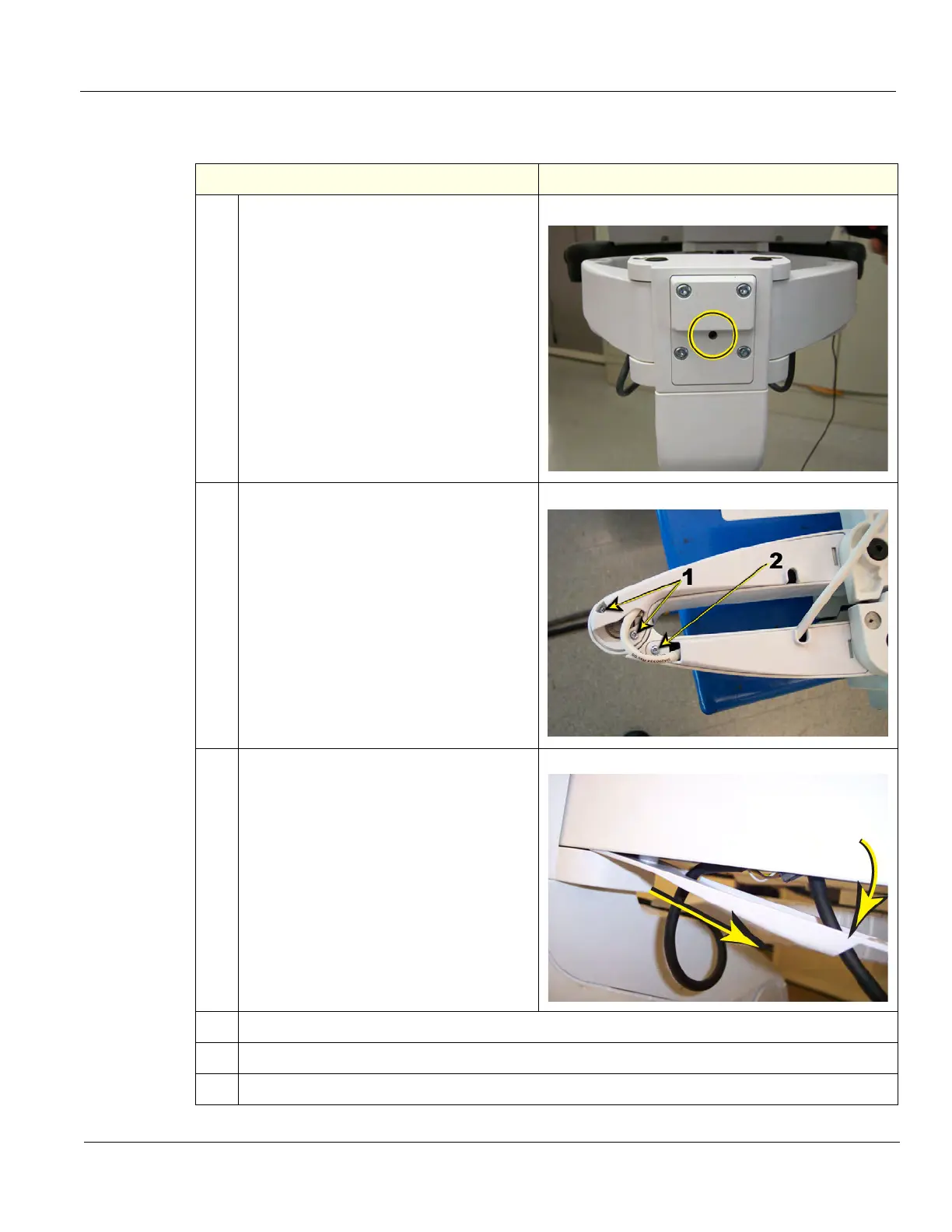

Covers under XY / Frogleg motors removal
Table 8-91 Covers under XY / Frogleg motors removal
Steps Corresponding Graphic
1.
At the rear of the Ultrasound System,
release the LOGIQ E10 frogleg mechanism
by inserting a screwdriver into the release
point and pressing until release. Pull the
console out to its extended position to gain
access to the screws in the next step.
XY / Frogleg mechanism release
2.
Under the XY / Frogleg mechanism,
identify the four separate covers. There are
two types of covers, one type has two
screws (1) and the other type has one
screw (2).
Remove the screws from the cover(s) to
replace.
Right side frog leg, from underneath
3.
Pull down and slide the cover(s) away from
the XY / Frogleg mechanism. Be sure to
flex the plastic slightly so the plastic clears
the XY.
4.
Disconnect the cable.
5.
Remove the screw securing the ground.
6.
Thread the cover(s) off the cable.
To Next Page
