DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 134 Section 8-7 - Replacing Top Console Parts
Bulkhead, Plate, Extended removal
Table 8-152 Bulkhead, Plate, Extended removal

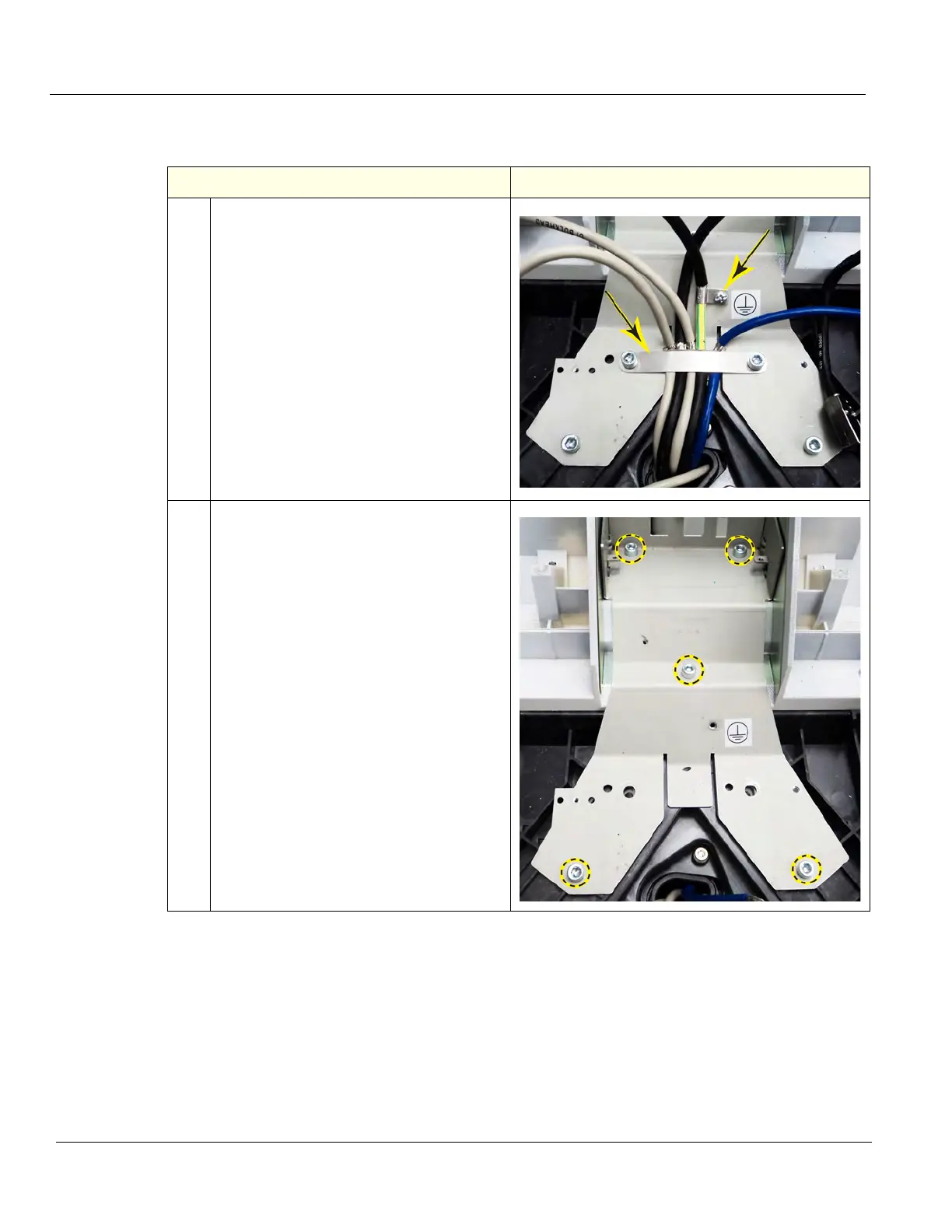

Steps Corresponding Graphic
1. The Bulkhead Plate is used to secure the
Upper UI Frame to the Lower UI Frame.
The OP Grounding Strap Clamp is used to
ground the Upper OP and Monitor Cables.
In addition, the P-clamp also grounds the
Monitor Video (HDMI P10).
NOTE: Mark the order of the cables, under
the Grounding Strap Clamp, before
removal. Marking the order will allow them
to be re-installed in the same location.
Remove the Grounding Strap Clamp, using
a 5 mm hex wrench and the P-clamp screw
and lock washer, using a #1 Phillips
screwdriver.
2. Remove the five fixing screws securing the
Bulkhead Plate, using a 5 mm hex wrench.
Note that the upper two screws are shorter.
• uppers 20 mm long
• middle 45 mm long
• lowers 25 mm long
Remove the Bulkhead Plate and the
Bulkhead Bracket Housing (behind the
plate).
To Next Page
