DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 138 Section 8-7 - Replacing Top Console Parts
Speaker Assembly removal

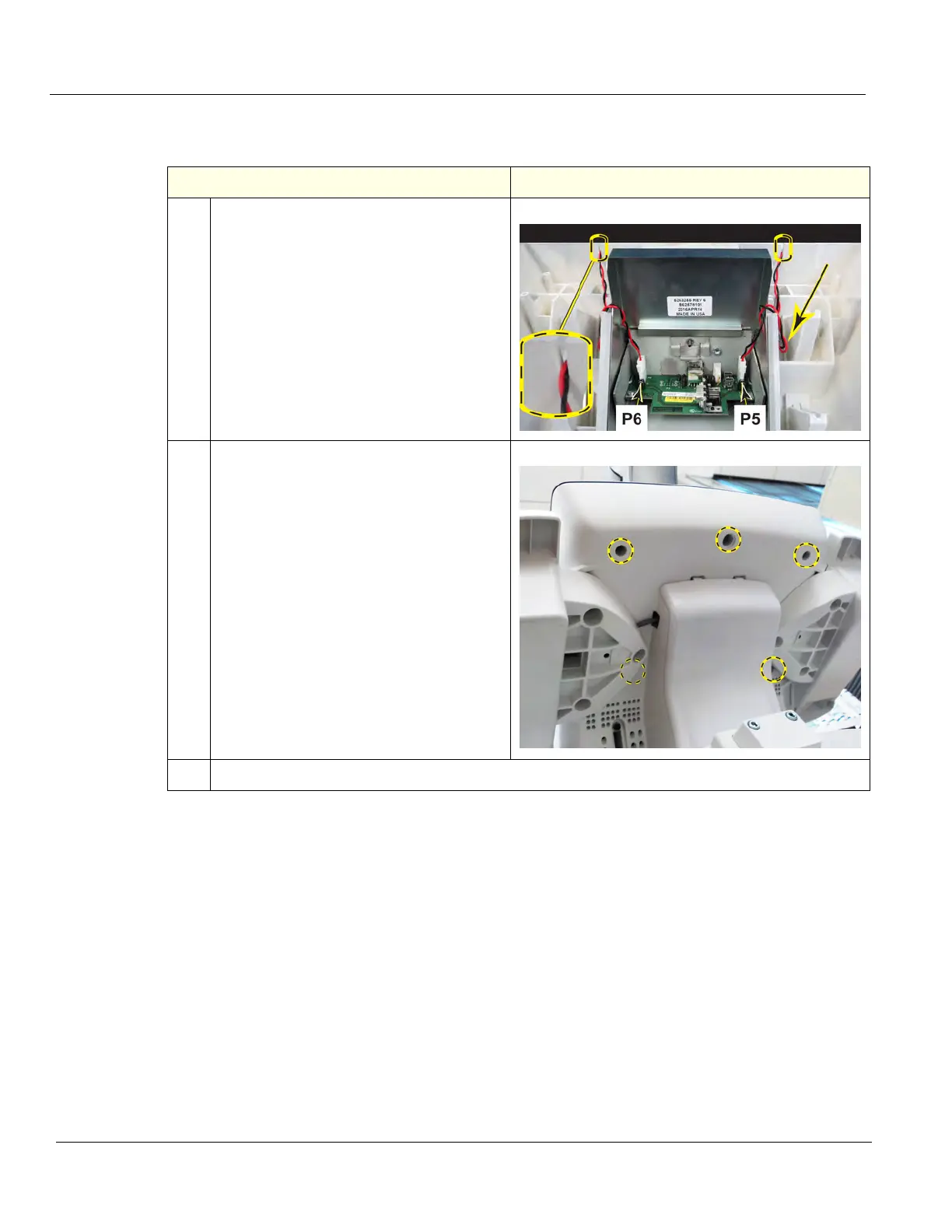

Table 8-157 Speaker Assembly removal
Steps Corresponding Graphic
1. Note how the Speaker cables are routed
and connected.
Disconnect the Speaker Assembly cables
from the Bulkhead Board.
Speaker Assembly cable routing,
connections:
P5 - left
P6 - right
2. Remove the five screws securing the Cover
Assembly to the Upper OP Frame, using a
4 mm hex wrench. (View from UI Upper
Frame bottom.)
3. Lift the Cover straight up.
