DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 139
Speaker Assembly installation
Table 8-158 Speaker Assembly installation
Steps Corresponding Graphic
1. Install the replacement assembly.
Make sure the Speaker cables are
positioned in front of the Speaker
Assembly.
Route the cables as shown and tuck the
cables as deep as possible into the Upper
UI Frame (under each Speaker to ensure
the cables DO NOT vibrate on the
Speakers.
Tucking the cables as deep as possible into
the Upper UI Frame in front of the Speaker
Assembly will ensure the cables DO NOT
get damaged when installing the Upper UI.
Connect Left to P6 and Right to P5.

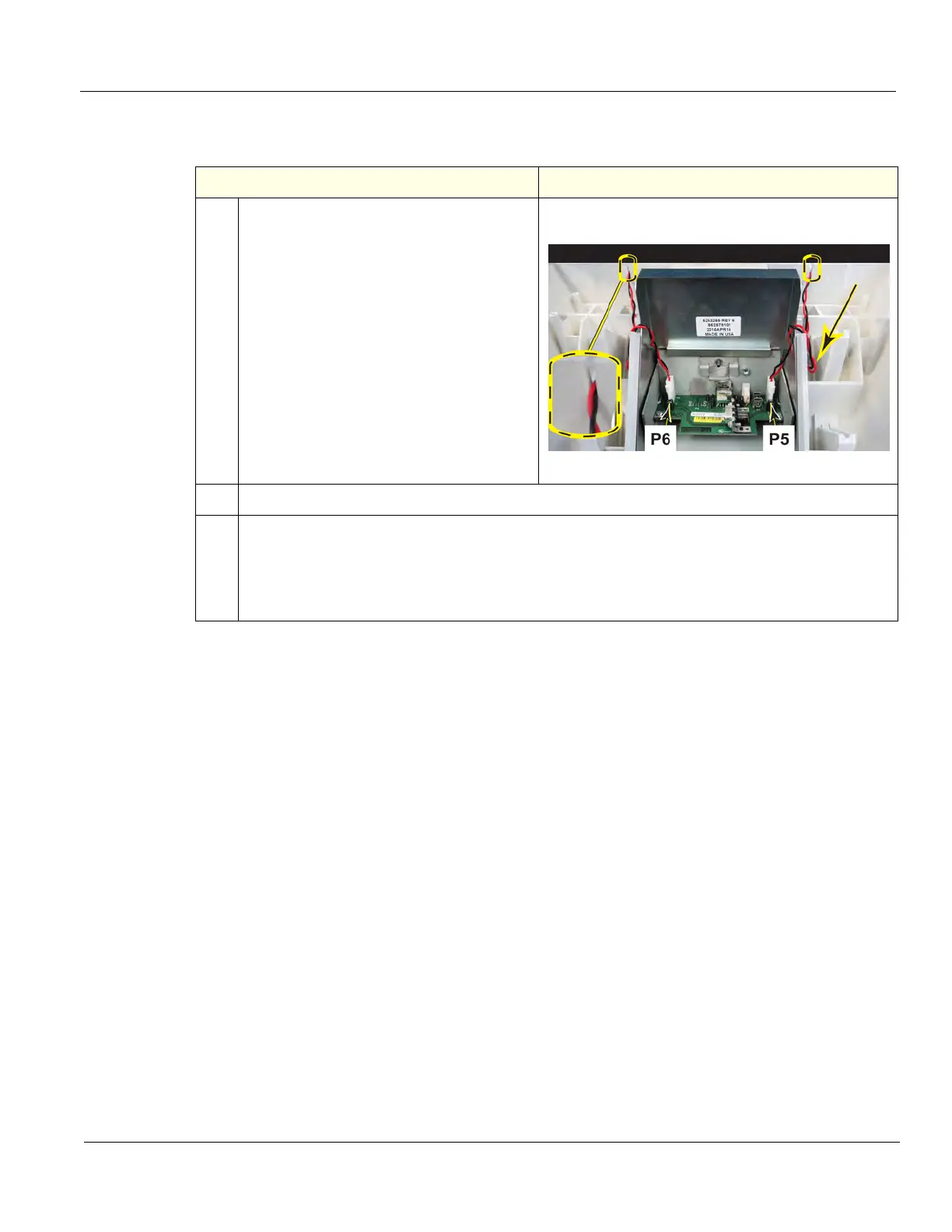

Speaker Assembly connectors and
cable routing
2. Re-install the five screws to secure the Cover. Torque: 3.0 +/- Nm.
3. Re-install:
• Monitor Arm Adapter,
• Monitor Arm and Monitor,
• Upper OP,
• all Covers removed.
To Next Page
