DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 200 Section 8-8 - Replacing XYZ Parts
1. Power down the system.
2. Disconnect the mains power cable from the wall outlet.
3. Remove the:
• Side Covers
, Battery Cover and Top Cover,
• Monitor Rear Cover, Main Monitor assembly, Monitor Arm assembly and Monitor Arm Adapter.
• Upper OP and Lower OP.
• Bulkhead Board and Bulkhead Plate.
• Upper and Lower Frame.
• XY-Mech.
4. Remove the XYZ Control Box and the plate on top of XYZ Control.
Preparation Links (if you need more information):
• 4-2-4 "Power SHUT DOWN" on page 4-9.
• Section 8-6 "Replacing Covers and Bumpers" on page 8-29.
• 8-7-3 "Main Monitor Arm assembly replacement" on page 8-91.
• 8-7-4 "Main Monitor Arm Assembly Adapter replacement" on page 8-99.
• 8-7-9 "Upper OP (Operator Panel)/Touch Panel Assembly replacement" on page 8-117.
• 8-7-10 "Lower OP (Operator Panel) replacement" on page 8-122.
• 8-7-11 "Bulkhead Board replacement" on page 8-127.
• 8-7-17 "Upper OP Frame Assembly replacement" on page 8-152.
• 8-7-18 "Lower OP Frame Assembly replacement" on page 8-156.
• 8-7-12 "Bulkhead, Plate, Extended replacement" on page 8-133.
• 8-8-3 "XY-Mechanism replacement" on page 8-192.
• 8-8-6 "XYZ Control Assembly replacement" on page 8-213.

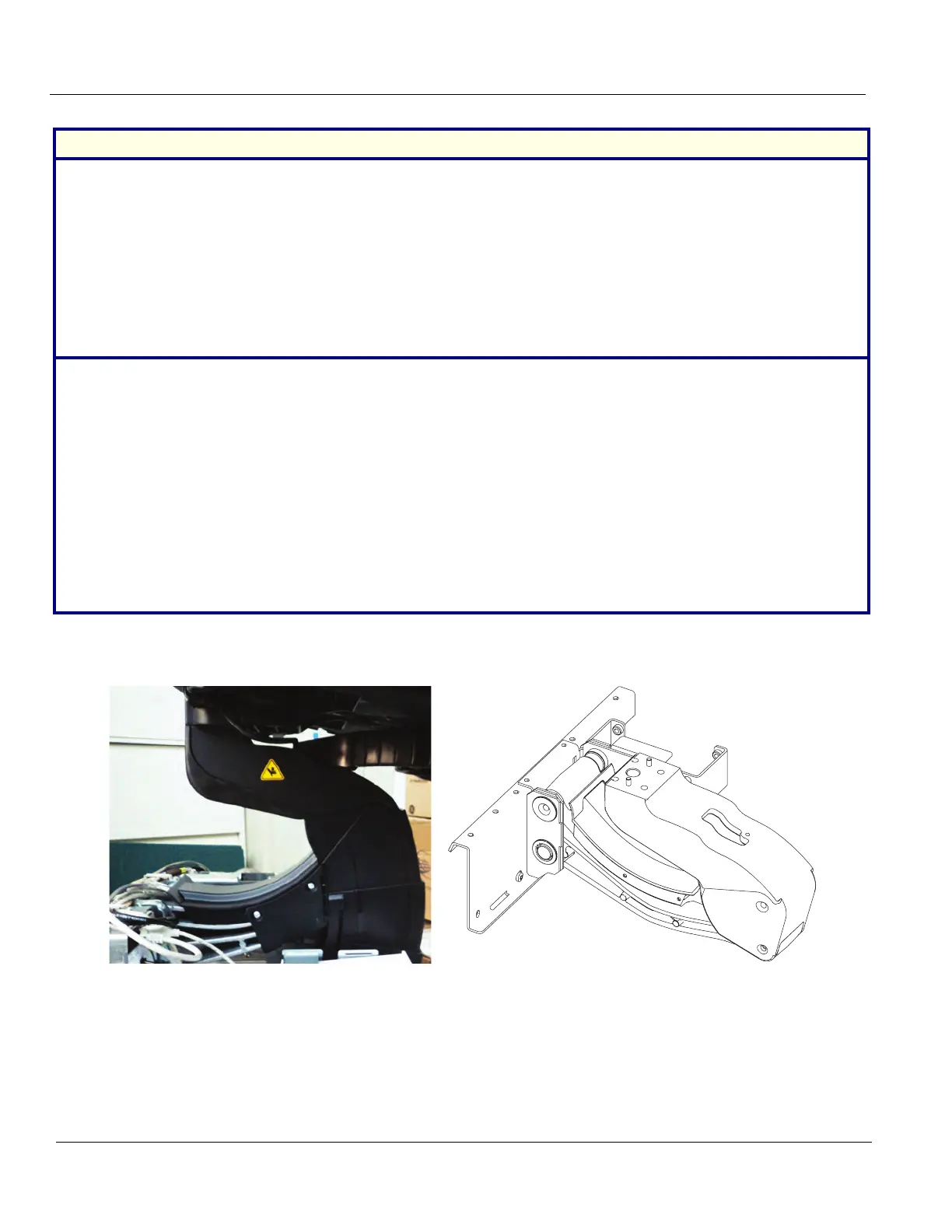

Figure 8-5 Z-Mechanism
Table 8-229 Preparations and Preparation Links
Preparations - you must perform the following steps
