Chapter 8 Replacement Procedures 8 - 221
4.
Remove the flange nut securing the Battery
Bracket to the Option Bracket.
Remove the Bracket.
5.
Remove the screw securing the Subwoofer
audio cable grounding clamp to the Option
Box.
Place the cable and clamp below the
Option Box.

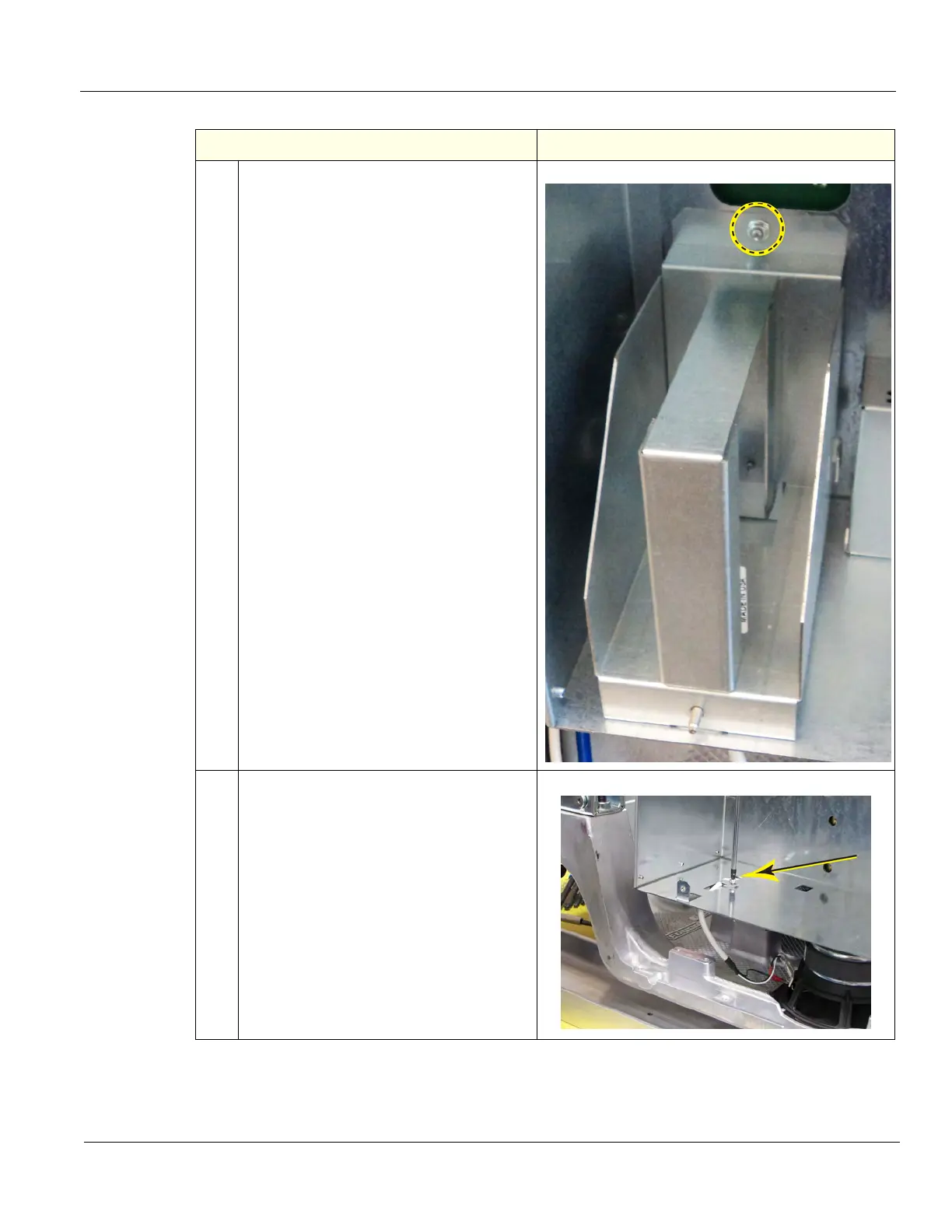

Table 8-245 Subwoofer removal
Steps Corresponding Graphic
