GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 220 Section 8-9 - Main Console parts replacement

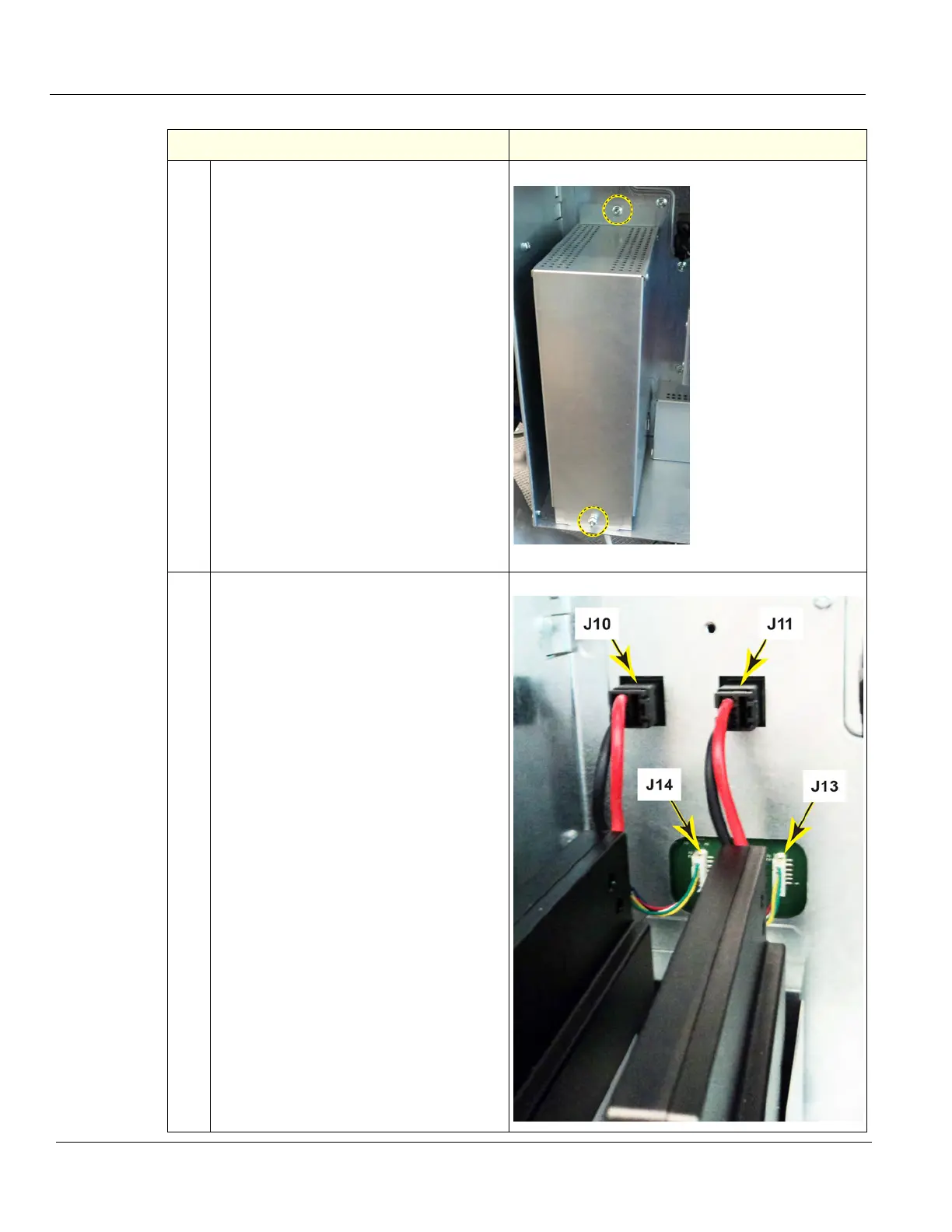

2.
Remove the two flange nuts securing the
Battery Cover to the Option Bracket, using
a 7 mm driver.
Remove the Cover.
3.
Disconnect the from the Backplane:
the Batteries power J10 and J11, and the
signal/communication connections J13
and J14.
NOTE: The power J10 and J11
connections of the Batteries MUST BE
DISCONNECTED as part of the Energy
Control and Power Lockout for the
LOGIQ E10.
Remove the batteries.
Table 8-245 Subwoofer removal
Steps Corresponding Graphic
