GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 246 Section 8-10 - Casters and Brakes replacement

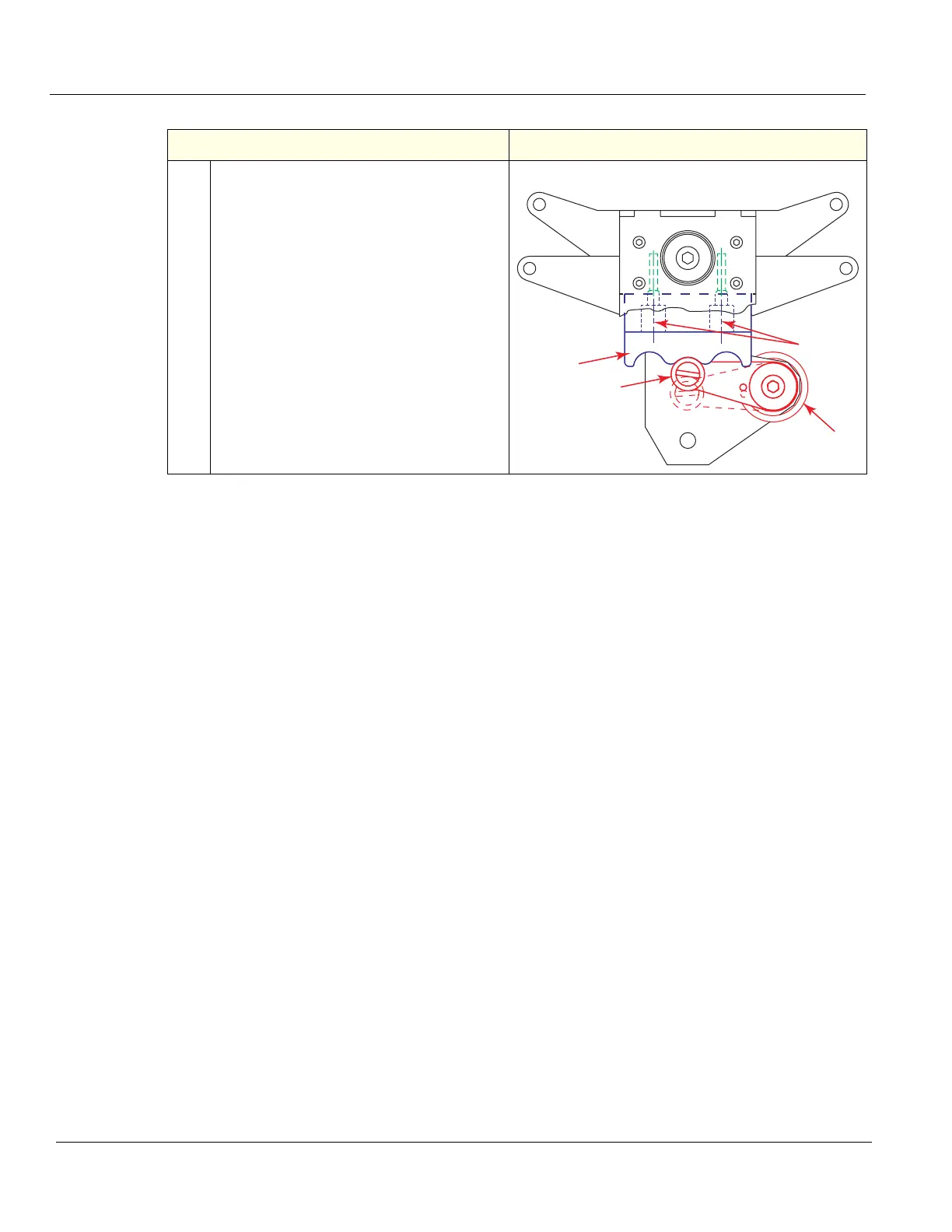

3. The Cam (4) seats above the Cam
Roller (5) and needs to be installed as
shown, or the Cam mounting holes (6) will
not be aligned.
The Cam Roller (5) needs to be lowered to
install the Cam. The Torsion Spring (7) and
Cam Roller will hold the Cam in position,
after the Cam is in place.
Cam Roller seated in center of Cam
Table 8-268 Cam to Pedal Mechanism replacement
Steps Corresponding Graphic
4
5
6
7

GE LOGIQ E10 Specifications

General

Touchscreen	Yes
3D/4D Imaging	Yes
Applications	Vascular, Cardiac, Musculoskeletal, OB/GYN
Image Storage	USB, Network
Connectivity	DICOM, Ethernet, Wireless
