DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
1 - 14 Section 1-3 - Important conventions
21. Possible shock hazard. Do not remove covers or panels. No user
serviceable parts are inside. Refer servicing to qualified service
personnel.
USB 3.0 Ports
Ethernet Connection
S-Video Connector
HDMI Connector
Signal ground point label CAUTION: This is only for “FUNCTIONAL
GROUNDING”, NOT “PROTECTIVE EARTH”.
NOTE: Grounding reliability can only be achieved when this
equipment is connected to a receptacle marked “Hospital Only” or
“Hospital Grade”. (For U.S.A., Canada, Japan)
Possible shock hazard. Do not remove covers or panels. No user
serviceable parts are inside. Refer servicing to qualified service
personnel.
“Equipotentiality” indicates the terminal to be used for connecting
equipotential conductors when interconnecting (grounding) with other
equipment.
Connection of additional protective earth conductors or potential
equalization conductors is not necessary in most cases and is only
recommended for situations involving multiple equipment in a high-
risk patient environment to provide assurance that all equipment is at
the same potential and operates within acceptable leakage current
limits. An example of a high-risk patient would be a special procedure
where the patient has an accessible conductive path to the heart
such as exposed cardiac pacing leads. IEC60417-5021
“Warning” - Dangerous voltage” (the lightning flash with arrowhead)
is used to indicate electric shock hazards. Standard: ISO 7010-
W012.

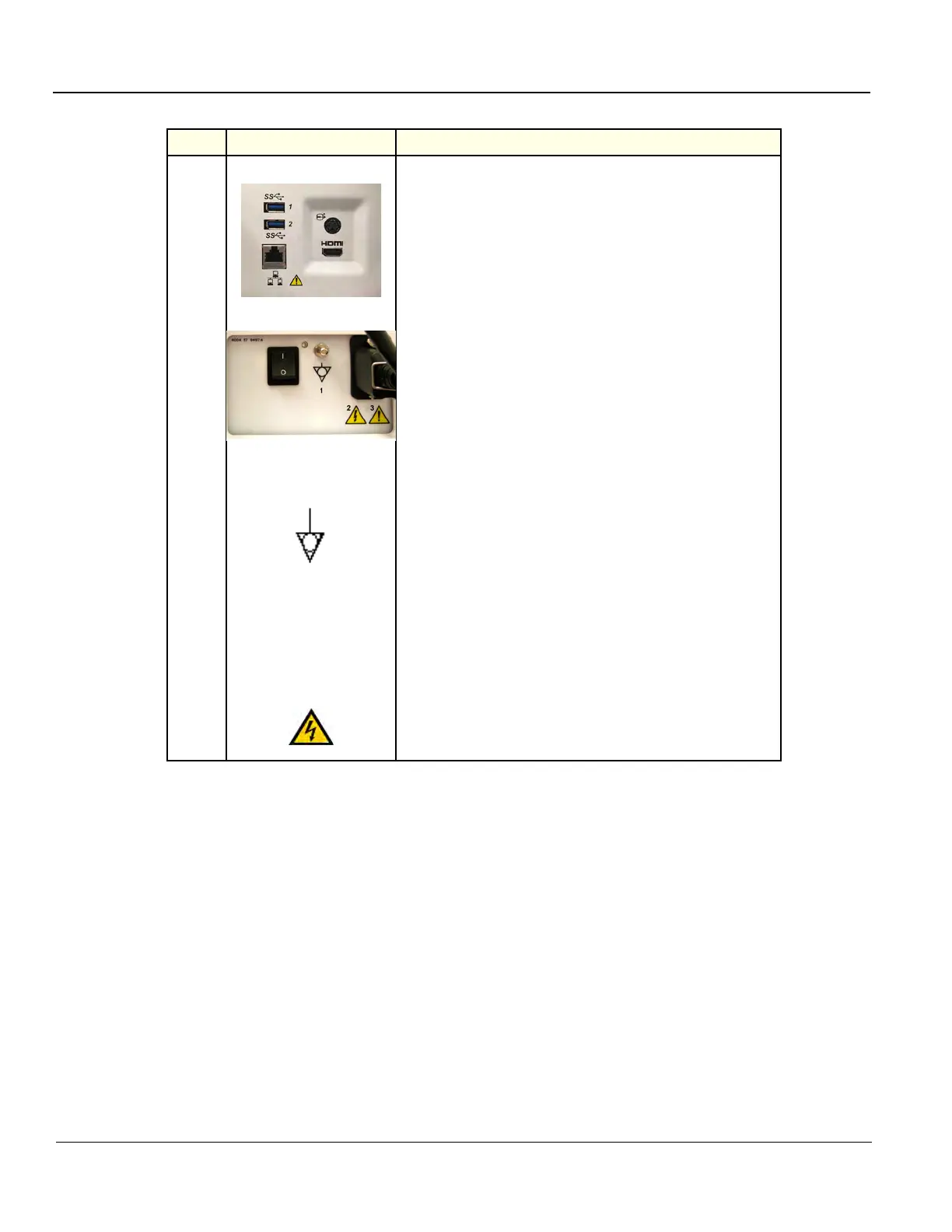

Table 1-5 Label Icons (Rear of Console)(Continued)
Item Label/Icon Purpose/Meaning

GE LOGIQ E10 Specifications

General

Touchscreen	Yes
3D/4D Imaging	Yes
Applications	Vascular, Cardiac, Musculoskeletal, OB/GYN
Image Storage	USB, Network
Connectivity	DICOM, Ethernet, Wireless
