GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 276 Section 8-11 - Front End Acquisition / Card Cage parts replacement

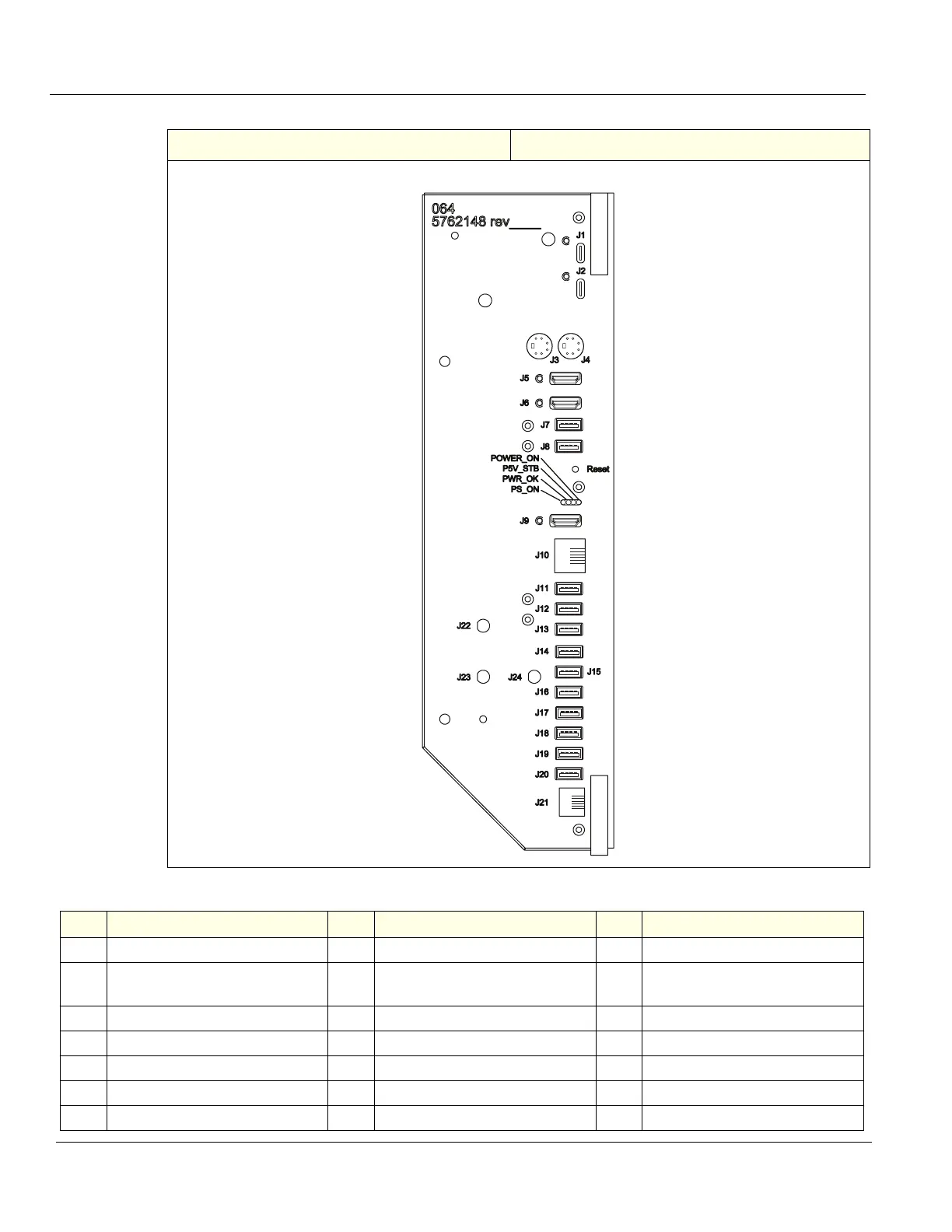

ECB cable connections
Table 8-304 Connections to from ECB
J?? To From ECB J?? To From ECB J?? To From ECB
J1 Hard Drive J2 DVD J3 not used
J4 BayBird Power J5
To P10 Bulkhead Plate, to
OLED Video Cntl
J6 To J22 Upper OP
J7 USB BayBird J8 To Control MPS J9 To Scan Convert - Rear I/O
J10 To Isolate - Rear I/O J11 XYZ Control J12 USB BW Printer
J13 To Cntr + VPD - Rear I/O J14 To USB Hub - Rear I/O J15 To J21 Upper OP
J16 not used J17 not used J18 not used
J19 not used J20 not used J21 Light Block (HDD/NW Status)
Table 8-303 ECB installation
Steps Corresponding Graphic

GE LOGIQ E10 Specifications

General

Touchscreen	Yes
3D/4D Imaging	Yes
Applications	Vascular, Cardiac, Musculoskeletal, OB/GYN
Image Storage	USB, Network
Connectivity	DICOM, Ethernet, Wireless
