GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 376 Section 8-13 - Peripherals replacement
DVD R/W drive removal
DVD R/W drive installation

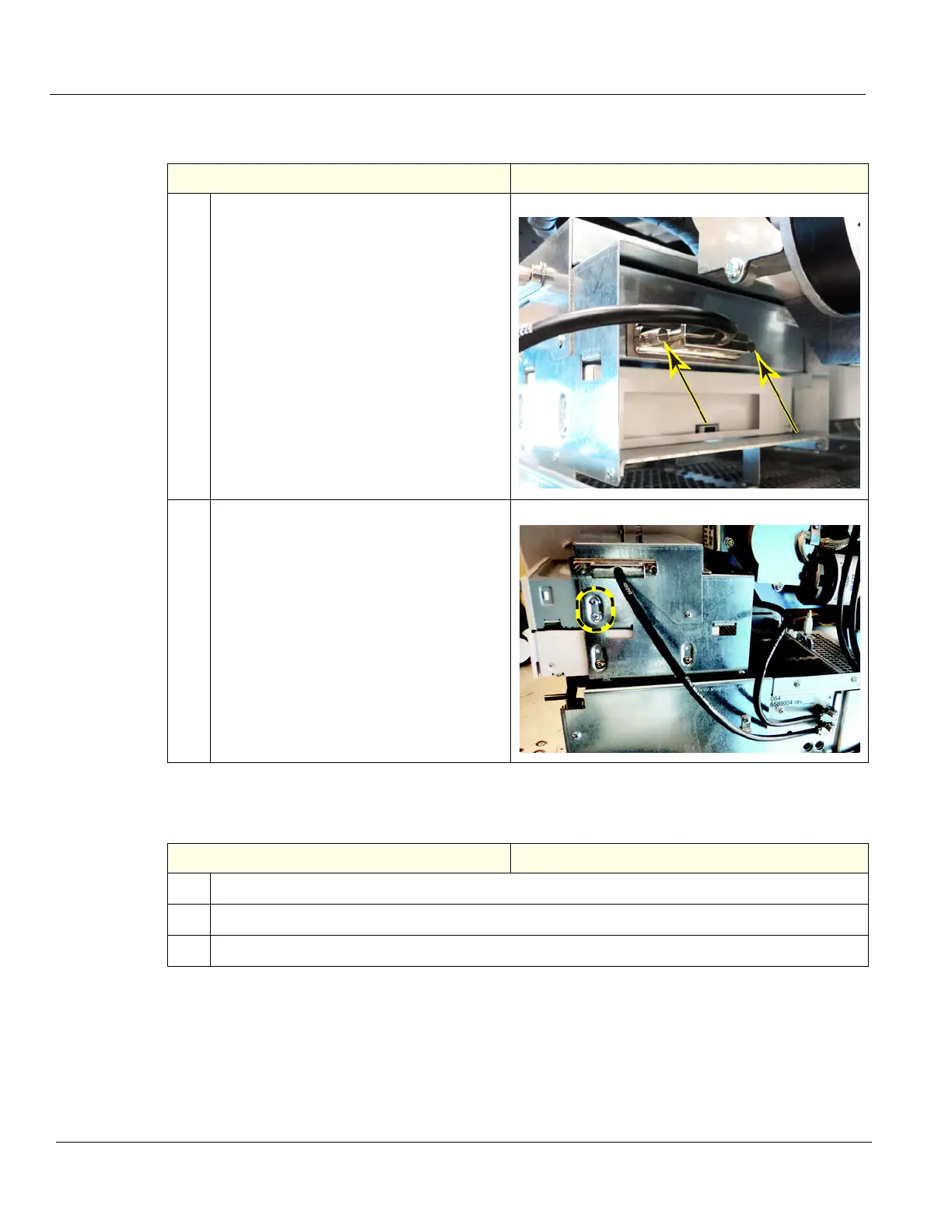

Table 8-382 DVD R/W drive removal
Steps Corresponding Graphic
1.
Disconnect the DVD connector by loosing
the two screws.
2.
Remove the screws that secure the DVD to
the DVD bracket.
Slide the DVD forward to remove.
Table 8-383 DVD R/W drive installation
Steps Corresponding Graphic
1.
Slide the replacement DVD into the DVD bracket and align the mounting holes.
2.
Re-connect the DVD cable from J2 to the DVD and tighten the connector screws.
3.
Re-install all Covers removed.
