8-15-2 Assembling or replacing the Roll Stand
Use these instructions to assembled or replace the Roll Stand.
1.) Insert the post in the base. The locator pin ensures correct alignment.
2.) Using the 1/2 inch socket wrench provided, fasten the post to the base with the hardware shown.

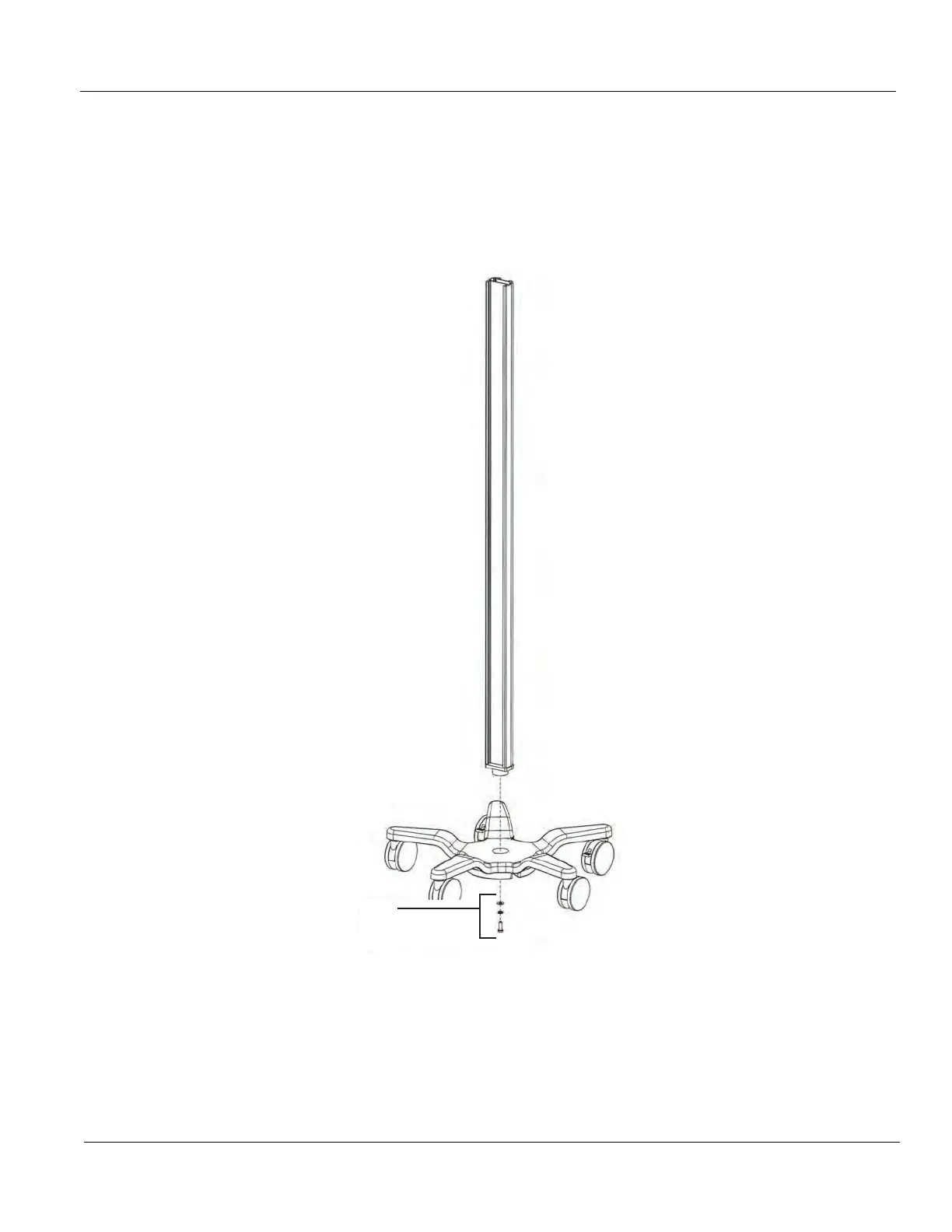

Figure 8-12 Post into Base - (1) 5/16 fLAT Washer, (2) 5/16 Lock Washer,
(3) 5/16-18 x 1 inch Screw - Roll Stand only
1
2
3
