GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 398 Section 8-15 - V Nav Roll Stand Assembling or Replacement
8-15-2 Assembling or replacing the Roll Stand (cont’d)

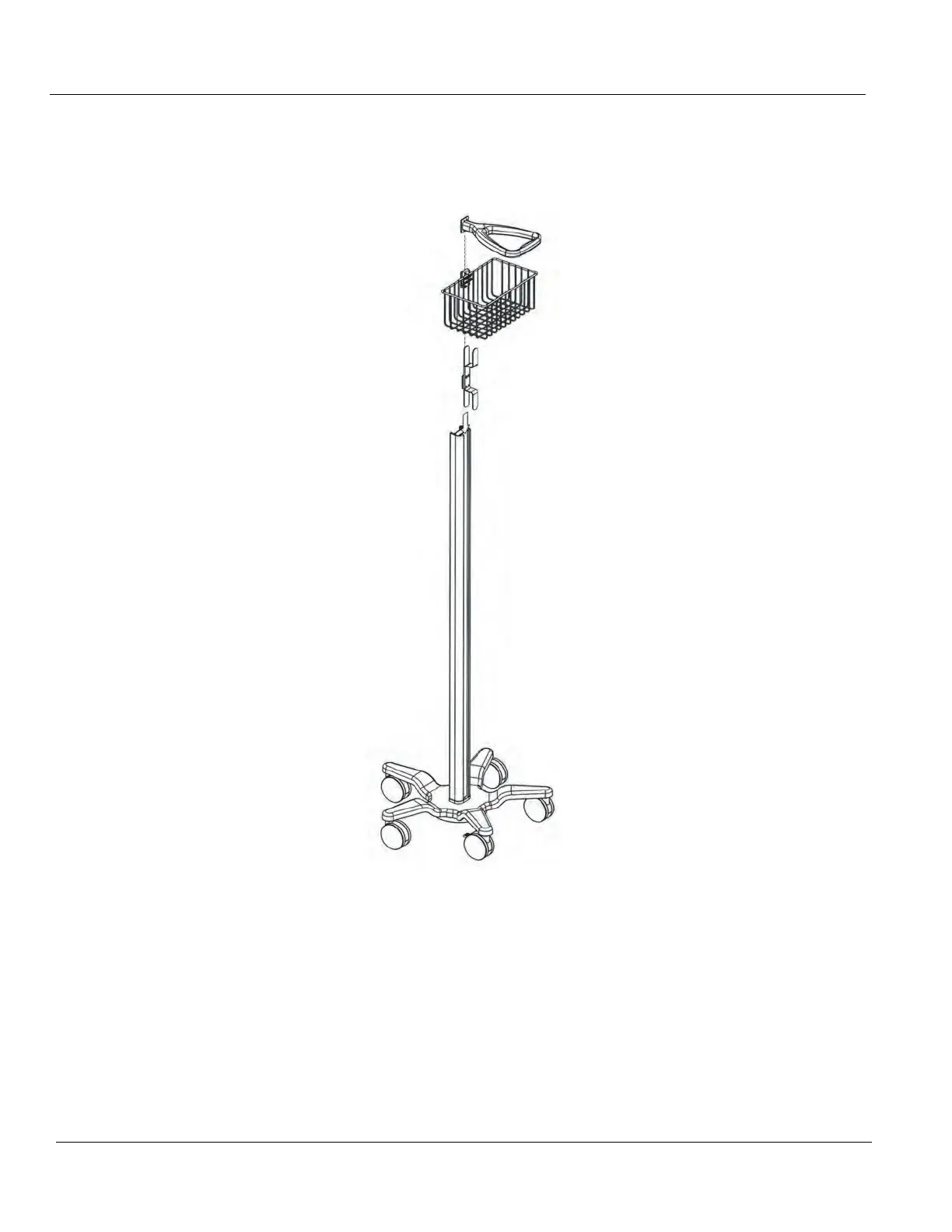

3.) Slide the cord loop hook, basket and handle into the rear channel in the order shown.
4.) Using the hex wrenches provided, tighten all of the set screws in each accessory to secure the po-
sition in the track.
a.) Tighten the top four set screws with the 3/32 inch hex wrench.
b.) Tighten the center four set screws with the 1/8 inch hex wrench.
c.) Tighten the bottom two set screws with 3/32 inch hex wrench.
Figure 8-13 Post Assembly

GE LOGIQ E10 Specifications

General

Touchscreen	Yes
3D/4D Imaging	Yes
Applications	Vascular, Cardiac, Musculoskeletal, OB/GYN
Image Storage	USB, Network
Connectivity	DICOM, Ethernet, Wireless
