GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 49
Section 9-20
Hardware Kit
Hardware Kit for LOGIQ E10 (includes two boxes with hardware) See: Figure 9-2 and Figure 9-3 "Box
2 of P/N 5310019-2 Hardware Kit" on page 9-54. See: Table 9-22 and Table 9-23 "Box 2 of P/N
5310019-2 Hardware Kit Compartment Contents" on page 9-54 to identify and keep the kit organized.
NOTE: This Kit is also used on the LOGIQ E9

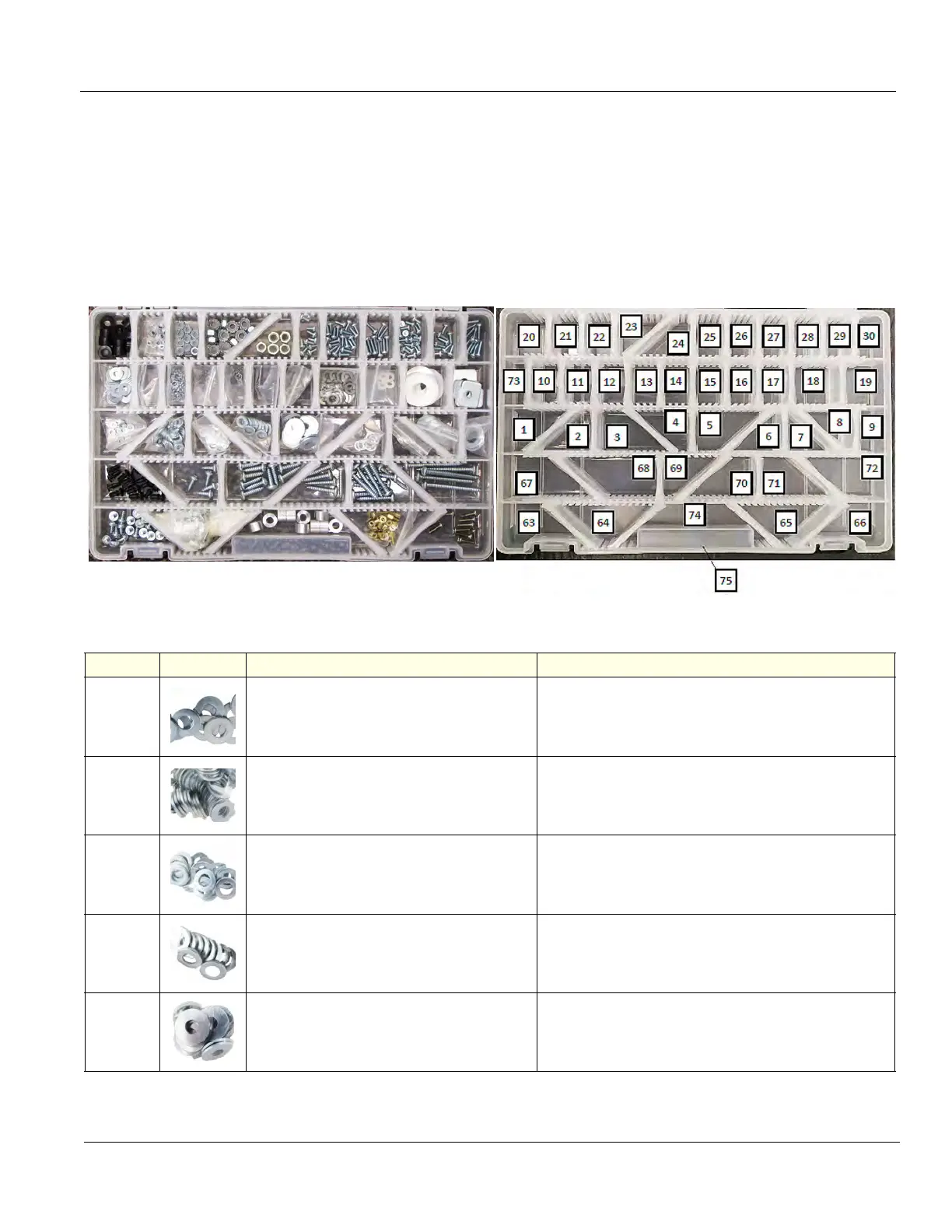

Figure 9-2 Box 1 of P/N 5310019-2 Hardware Kit
Table 9-22 Box 1 of P/N 5310019-2 Hardware Kit Compartment Contents
Number Thumbnail Contents Where Used
1.)
Flat Washer, ISO7089, M3, Steel 140HV, Zinc
Plated, RoHS Fastener
Bulkhead Board Assy
2.)
Flat Washer, ISO7089, M4, Steel 140HV, Zinc
Plated, RoHS Fastener
OP panel; Z-Mech
3.)
Flat Washer, ISO7089, M5, Steel 140HV, Zinc
Plated, RoHS Fastener
Cable hook; bumper rear; cover rear
4.)
Flat Washer, ISO7089, M6, Steel 140HV, Zinc
Plated, RoHS Fastener
Top cover; bracket rear handle
5.)
Large Flat Washer, ISO7093, M6, Steel 140HV, Zinc
Plated, RoHS Fastener
Main PS; BEP; Cardrack

GE LOGIQ E10 Specifications

General

Touchscreen	Yes
3D/4D Imaging	Yes
Applications	Vascular, Cardiac, Musculoskeletal, OB/GYN
Image Storage	USB, Network
Connectivity	DICOM, Ethernet, Wireless
