Chapter 9 Renewal Parts 9 - 51
18.)
Washer POM Bearing Rod Caster lock release assembly
19.)
Washer, Front Cover ICHIRO Cover front
20.)
Spacer Op panel Operator panel
21.)
Hexagon Prevailing Torque Nut, ISO7040, M2.5-
0.45, Grade 8 Steel, Zinc Plated, RoHS Fastener
Removable fan tray magnetic catch
22.)
Hex Nut with Integral Lock Washer, ISO 4032, M4-
0.7 Class 8 Steel, Zinc Plated RoHS Fastener
Harness BEP5 power
23.)
Hexagon Nut with Lock Washer, M6-1, Grade 8
Steel, Zinc Plated, RoHS Fastener
Pedal Rod assy
24.)
Hexagon Nut, ISO4032, M6-1.0, Grade 8 Steel, Zinc
Plated, RoHS Fastener
Rod assembly
25.)
Phillips Pan Head Screw, ISO 7045, M3-0.5, X6mm
Long, Grade 4.8 Steel, Zinc Plated, RoHS Fastener
XYZ MC; printer bracket
26.)
Phillips Pan Head Screw, ISO 7045, M3-0.5, X8mm
Long, Grade 4.8 Steel, Zinc Plated, RoHS Fastener
Infestation guard -Removable fan tray consoles
27.)
Phillips Pan Head Screw, ISO 7045, M3-0.5,
X12mm Long, Grade 4.8 Steel, Zinc Plated, RoHS
Fastener
Subwoofer; BEP5 PS
28.)
Cross Recessed Pan Head Machine Screw_M3-
0.5_ X6mm Long Zinc Plated Steel_RoHS Fastener
DVD; VNAV; BEP5 EPS; 4D MC
29.)
Freedriv Cross Recessed Pan Head Machine
Screw_M3-0.5_ X8mm Long Zinc Plated
Steel_RoHS Fastener
Bulkhead Board Assy; 4D MC

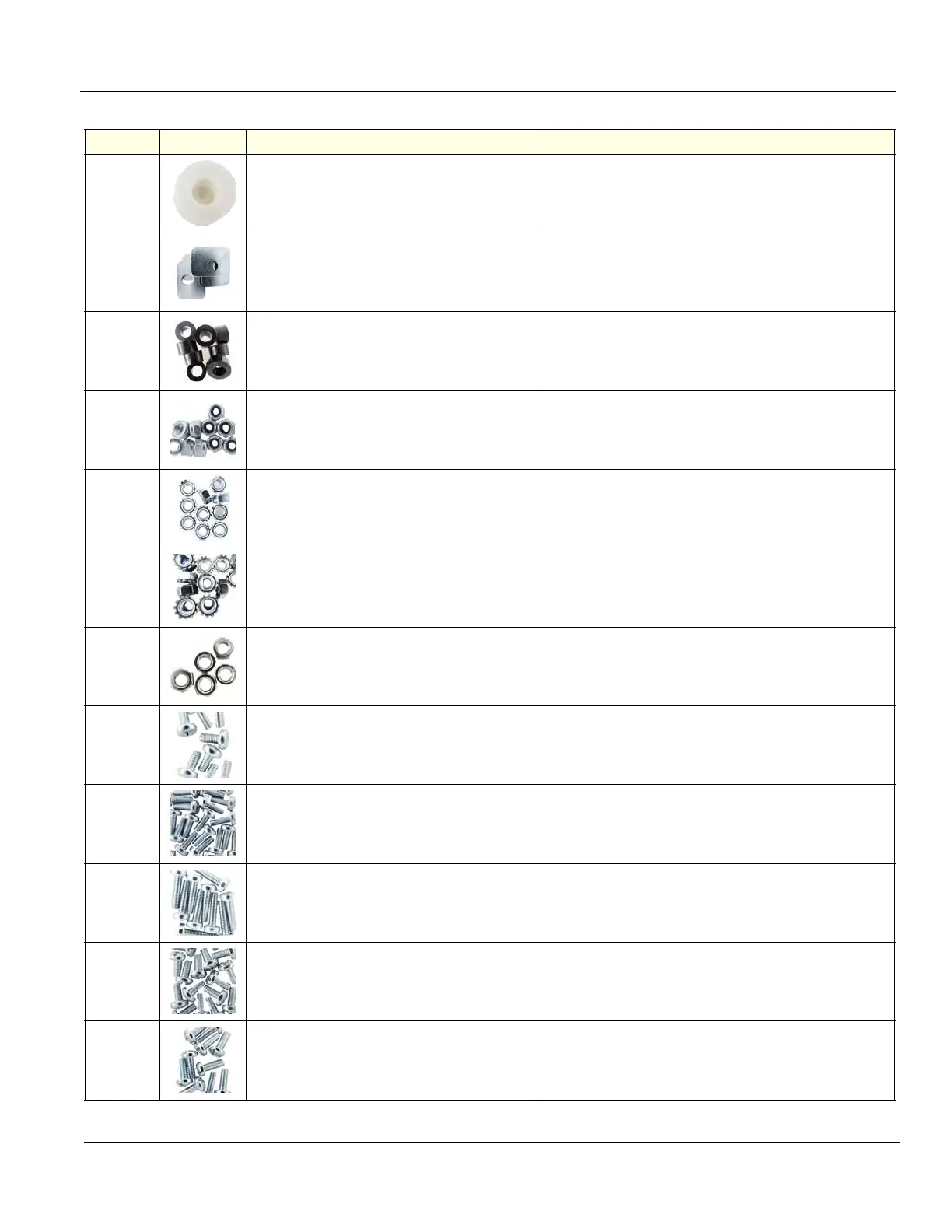

Table 9-22 Box 1 of P/N 5310019-2 Hardware Kit Compartment Contents
