GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 55
37.)
Freedriv Cross Recessed Pan Head Machine
Screw_M4-0.7_ X40mm Long Zinc Plated
Steel_RoHS Fastener
OP panel upper
38.)
Hexalobular Socket Flat C-Sunk Head Screw_ M4-
0.7_ X8mm Long_Grade 8.8_Zinc Plated
Blue_RoHS Fastener
Bracket main cable mount
39.)
Phillips Flat Head Screw, ISO 7046, M4-0.7, X10mm
Long, Grade 4.8 Steel, Zinc Plated, RoHS Fastener
Bracket main cable mount; rear handle
40.)
Nylon M4 X 35 Pan Head Phillips Machine Screw BEP5 EPS
41.)
Screw TP LCD Monitor to arm
42.)
Phillips Pan Head Screw, ISO 7045, M5-0.8 X 10MM
Long, Class 4.8 Steel, Zinc Plated RoHS Fastener
Printer bracket
43.)
Freedriv Cross Recessed Pan Head Machine
Screw_M5-0.8_ X16mm Long Zinc Plated
Steel_RoHS Fastener
Cable hook; bumper rear; cover rear; LCD mount lock assy
44.)
Freedriv Cross Recessed Pan Head Machine
Screw_M5-0.8_ X25mm Long Zinc Plated
Steel_RoHS Fastener
Gel warmer and tray
45.)
Socket Pan Head Screw_ M5-0.8_X8mm
Long_Steel 8.8,Zinc Plated Blue_ RoHS Fastener
Z-Mech
46.)
Hexalobular Socket Pan Head Screw_ M5-
0.8_X16mm Long_Steel 8.8,Zinc Plated Blue_
RoHS Fastener
Main Cable Assembly
47.)
Hexagon Socket Head Cap Screw, M5-0.8, X16mm
Long, Grade12.9 Steel, Black Oxide, RoHS
Fastener
LCD monitor to Daeil arm
48.)
Hexagon Socket Head Cap Screw, ISO 4762, M5-
0.8, X50mm Long, Grade 8.8 Steel, Black Oxide,
RoHS Fastener
LCD arm adapter for ergotron arm

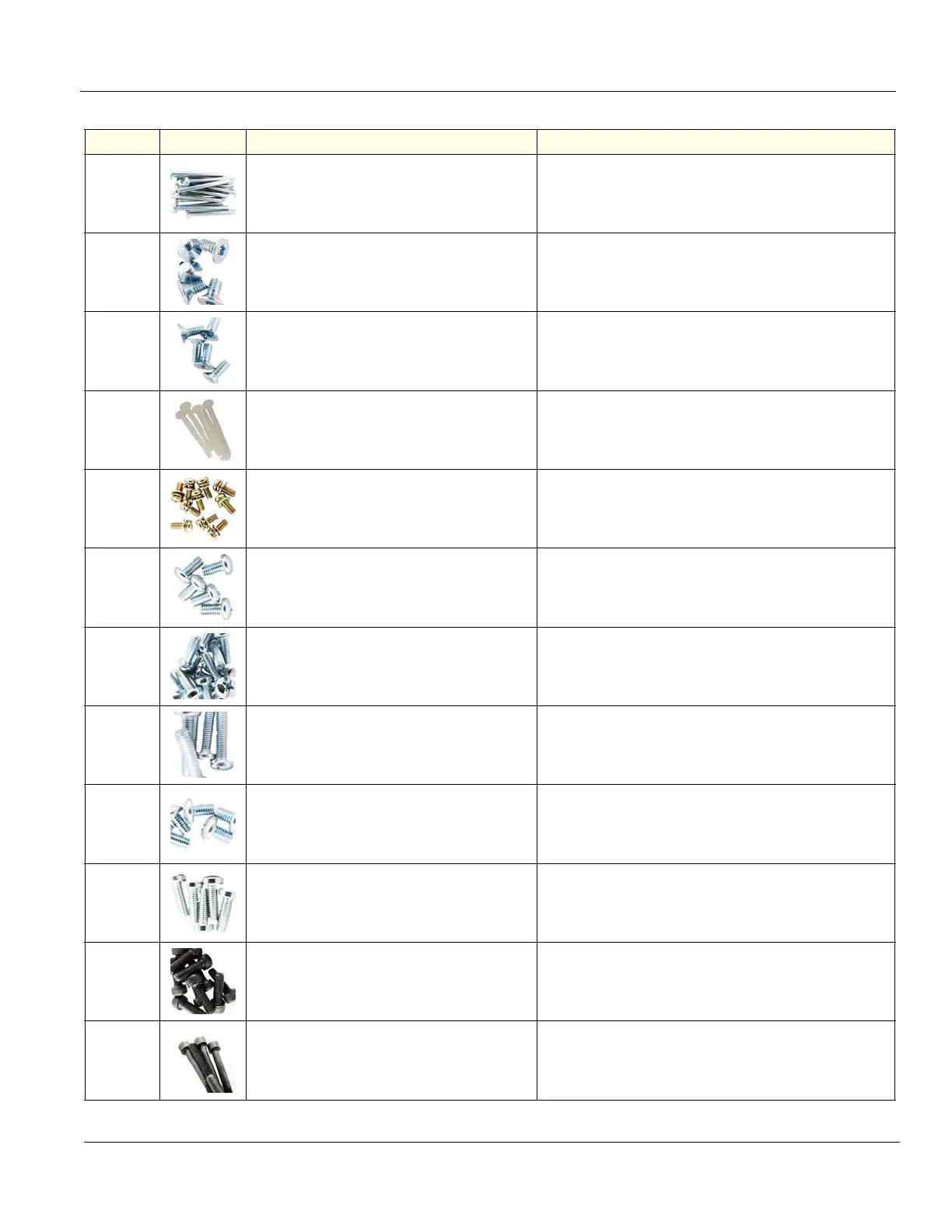

Table 9-23 Box 2 of P/N 5310019-2 Hardware Kit Compartment Contents
Number Thumbnail Contents Where Used
