GE LOGIQ E10

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
9 - 56 Section 9-20 - Hardware Kit
49.)
Freedriv Cross Recessed Pan Head Machine
Screw_M6-1_ X16mm Long Zinc Plated
Steel_RoHS Fastener
Top cover; Front cover
50.)
Hexalobular Socket Pan Head Screw_ M6-
1_X16mm Long_Steel 8.8,Zinc Plated Blue_ RoHS
Fastener
Plate targa; bracket rear handle; main cable assy; Z-Mech
51.)
Hexalobular Socket Pan Head Screw_ M6-
1_X20mm Long_Steel 8.8,Zinc Plated Blue_ RoHS
Fastener
Bulkhead plate
52.)
Hexalobular Socket Pan Head Screw_ M6-
1_X25mm Long_Steel 8.8,Zinc Plated Blue_ RoHS
Fastener
Clamp main cable under the lower op
53.)
Hexalobular Socket Pan Head Screw_ M6-
1_X30mm Long_Steel 8.8,Zinc Plated Blue_ RoHS
Fastener
Z-Mech; break rod assy
54.)
Hexalobular Socket Pan Head Screw_ M6-
1_X45mm Long_Steel 8.8,Zinc Plated Blue_ RoHS
Fastener
Bulkhead plate
55.)
Hexagon Socket Head Cap Screw, M6-1, X16mm
Long, Grade 8.8 Steel, Zinc Plated, RoHS Fastener
Z-Mech motor; cardrack
56.)
Hexagon Socket Head Cap Screw, M6-1, X16mm
Long, Grade12.9 Steel, Black Oxide, RoHS
Fastener
Power supply; BEP
57.)
Hexagon Socket Head Cap Screw, M6-1, X20mm
Long, Grade 8.8 Steel, Zinc Plated, RoHS Fastener
Card rack
58.)
Hexalobular Socket Flat C-Sunk Head Screw_ M6-
1_ X16mm Long_Grade 8.8_Zinc Plated
Blue_RoHS Fastener
Card rack mount to base; bracket lock cover side; clamp frame
main cable
59.)
Hexalobular Socket Pan Head Screw_ M8-
1.25_X20mm Long_Steel 8.8,Zinc Plated Blue_
RoHS Fastener
Caster; pedal brake
60.)
Hexagon Socket Head Cap Screw, M8-1.25,
X30mm Long, Grade 8.8 Steel, Zinc Plated, RoHS
Fastener
Z-Mech

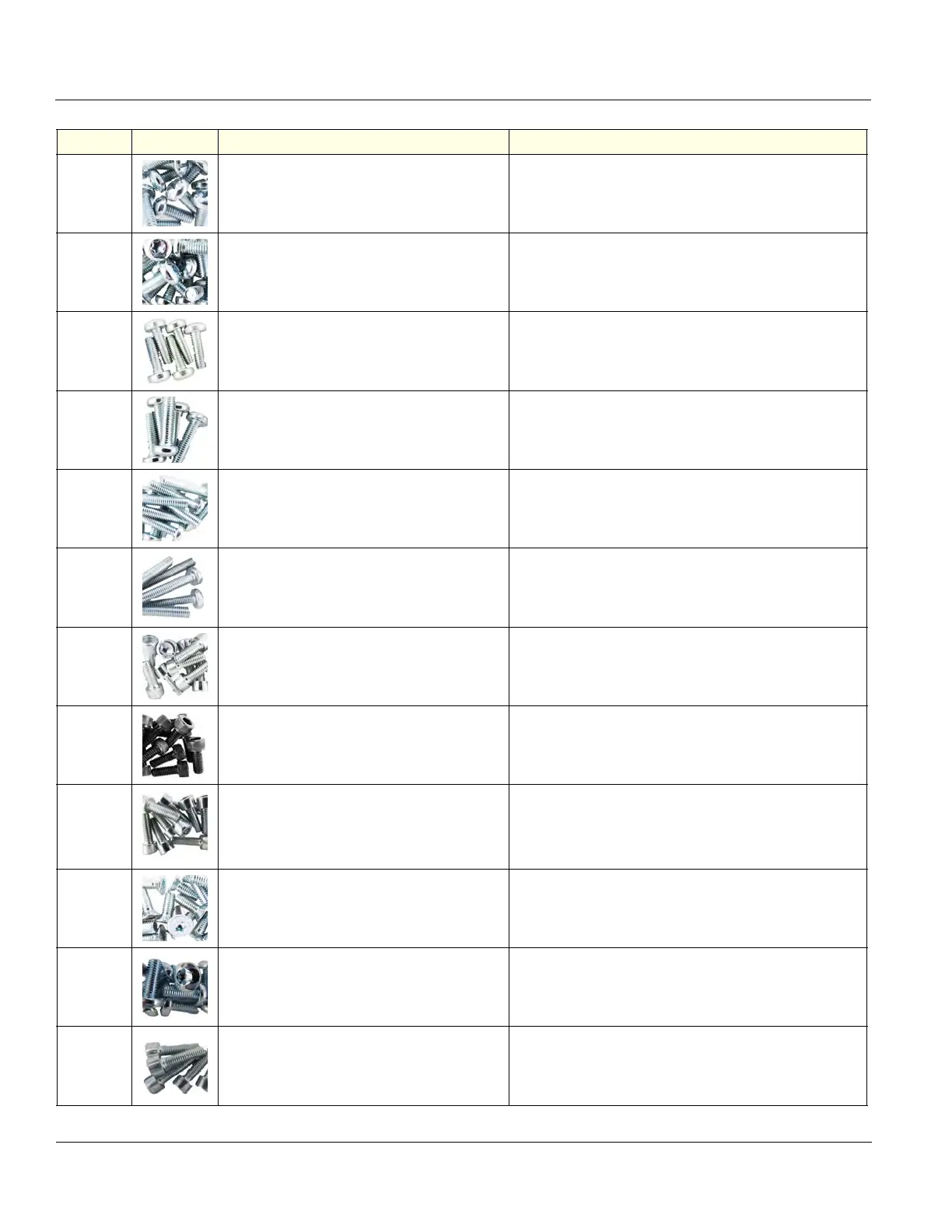

Table 9-23 Box 2 of P/N 5310019-2 Hardware Kit Compartment Contents
Number Thumbnail Contents Where Used
