gefran SIEIDrive ADL300 Functions Description And Parameters List

100 ADL300 • Functions description and parameters list
21.5.10 4418 Word bit9 src LINK 16BIT 6000 0 16384 ERW FVS
21.5.11 4420 Word bit10 src LINK 16BIT 6000 0 16384 ERW FVS
21.5.12 4422 Word bit11 src LINK 16BIT 6000 0 16384 ERW FVS
21.5.13 4424 Word bit12 src LINK 16BIT 6000 0 16384 ERW FVS
21.5.14 4426 Word bit13 src LINK 16BIT 6000 0 16384 ERW FVS
21.5.15 4428 Word bit14 src LINK 16BIT 6000 0 16384 ERW FVS
21.5.16 4430 Word bit15 src LINK 16BIT 6000 0 16384 ERW FVS

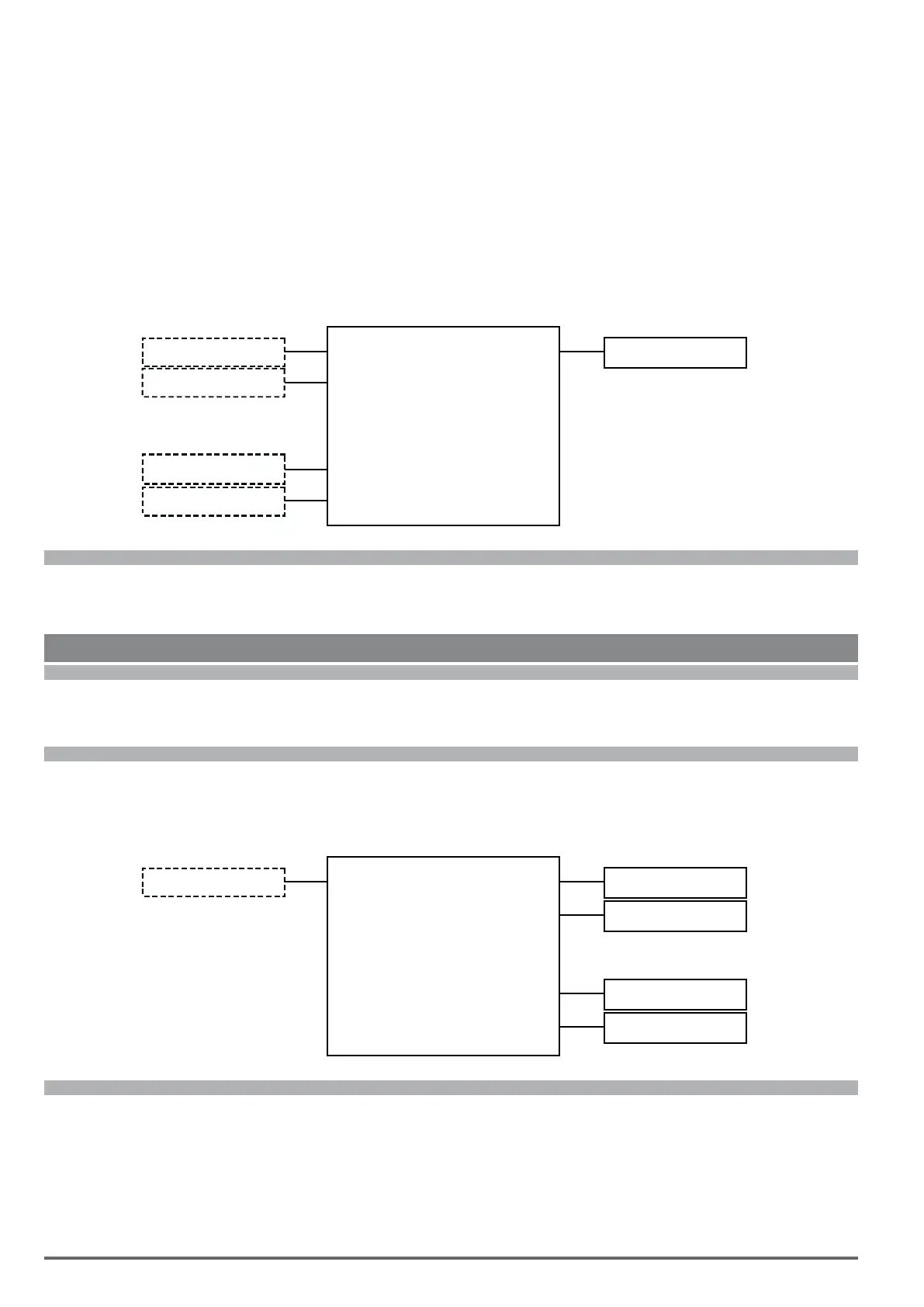

Selection of the origin (source) of the signal to be used for coding in Word comp. This function allows the user to compose
a single word composed of 16 signals, each of which can be selected from among those listed in the “L_DIGSEL1” selec-
tion list”.
The values of the sectioned sizes are converted into a single word.
Word bit0 src
Word bit1 src
Word bit14 src
Word bit15 src
Word comp mon
WORD_0
BIT_0
BIT_1
BIT_14
BIT_15
BIT_1
.........................
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.5.17 4432 Word comp mon UINT32 16BIT 0 0 0 ER FVS
The hexadecimal value of the Word comp output is displayed.
21.6 - COMMUNICATION/WORD COMP
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.6.1 4450 Dig word decomp UINT32 16BIT 0 0 0 ERW FVS
Setting of the digital input decoded by the “Word decomp” block.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.6.2 4452 Word decomp src LINK 16BIT 4450 0 16384 ERW FVS
Selection of the origin (source) of the word to be decoded by the “Word decomp” block. Each bit that is part of the word
to be decoded is associated with the output channel of the “Word decomp” block. The variables that can be used for this
function can be selected from among those listed in the “L_WDECOMP” selection list”
Word decomp src
Bit0 decomp mon
WORD_0
BIT_0
BIT_1
BIT_14
BIT_15
BIT_1
......... ................
Bit10 decomp mon
Bit14 decomp mon
Bit15 decomp mon
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.6.3 4454 Bit0 decomp mon BIT 16BIT 0 0 1 ER FVS
21.6.4 4456 Bit1 decomp mon BIT 16BIT 0 0 1 ER FVS
21.6.5 4458 Bit2 decomp mon BIT 16BIT 0 0 1 ER FVS
21.6.6 4460 Bit3 decomp mon BIT 16BIT 0 0 1 ER FVS
21.6.7 4462 Bit4 decomp mon BIT 16BIT 0 0 1 ER FVS
21.6.8 4464 Bit5 decomp mon BIT 16BIT 0 0 1 ER FVS
