88 ADL300 • Functions description and parameters list
20.5 - FUNCTIONS/DOUBLE PAR SET
Two independent sets of parameters can be stored in the ADL300 drive. These can be selected via the keypad or by using an exter-
nal command.
This makes it possible to change all the drive parameters quickly and automatically according to the various operating require-
ments. For example, two motors with dierent characteristics can be controlled alternately.
Lift application parameters are not included in the two sets of parameters. This makes it possible to switch between all drive
parameters in two separate groups, while having a single set of parameters for the application.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
20.5.1 3300 Par set enable ENUM Disable 0 1 ERW FVS
Enabling of management of two parameter sets
0 Disable
1 Enable
When set to 0 only one parameter set is managed (the one used as the default set).
If set to 1 two separate parameter sets can be congured. These can be selected using a command signal on a digital
input of the terminal strip.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
20.5.2 3302 Par set select src LINK 16BIT 6000 0 16384 ERWZ FVS
Selection of the origin (source) of the signal to be used to select the parameter set to be used. The terminal or digital com-
mand that can be associated with this function can be selected from among those available in the “L_DIGSEL2” selection
list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
20.5.3 3304 Par set select mon ENUM 16BIT Set 0 0 0 ER FVS
The parameter set currently in use is displayed.
0 Set 0
1 Set 1
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
20.5.4 3306 Par set 0 to 1 copy BIT 0 0 1 ERWZ FVS

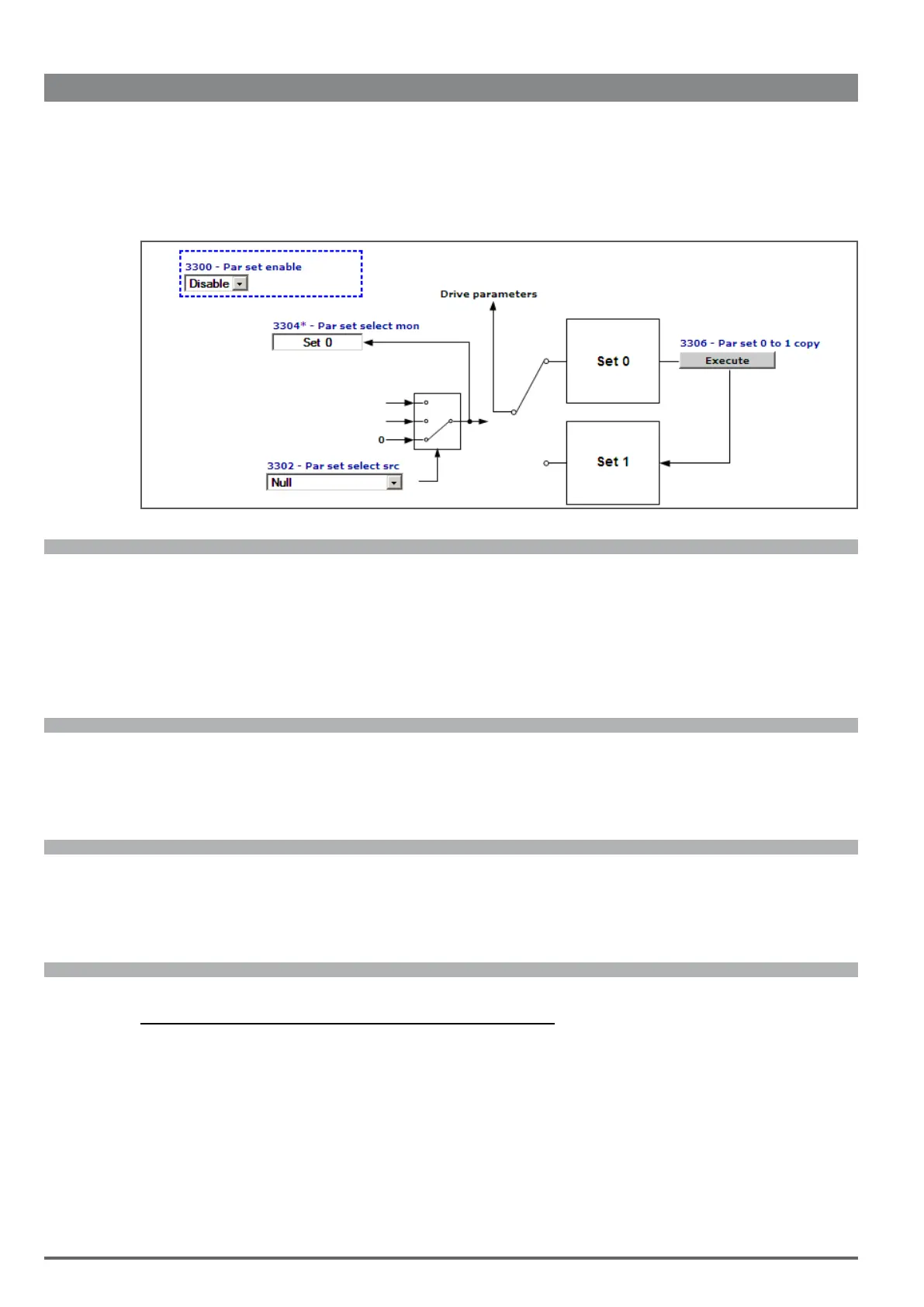

Procedures for setting up and managing the double parameter set
Creating the second set:
This function copies parameter set 0 onto set 1. Before enabling management of the double parameter set, the rst set
should be programmed with the correct values.
When the rst set is ready, the second can be activated as follows:
1 Activate management of the double parameter set by enabling parameter 3300 Par set enable.
2 Copy set 0 onto set 1 using command 3306 Par set 0 to 1 copy.
This creates an initial parameter base in set 1 to which changes can be made.
Save the parameters.
3 Activate set 1 using parameter 3302 Par set select src.
