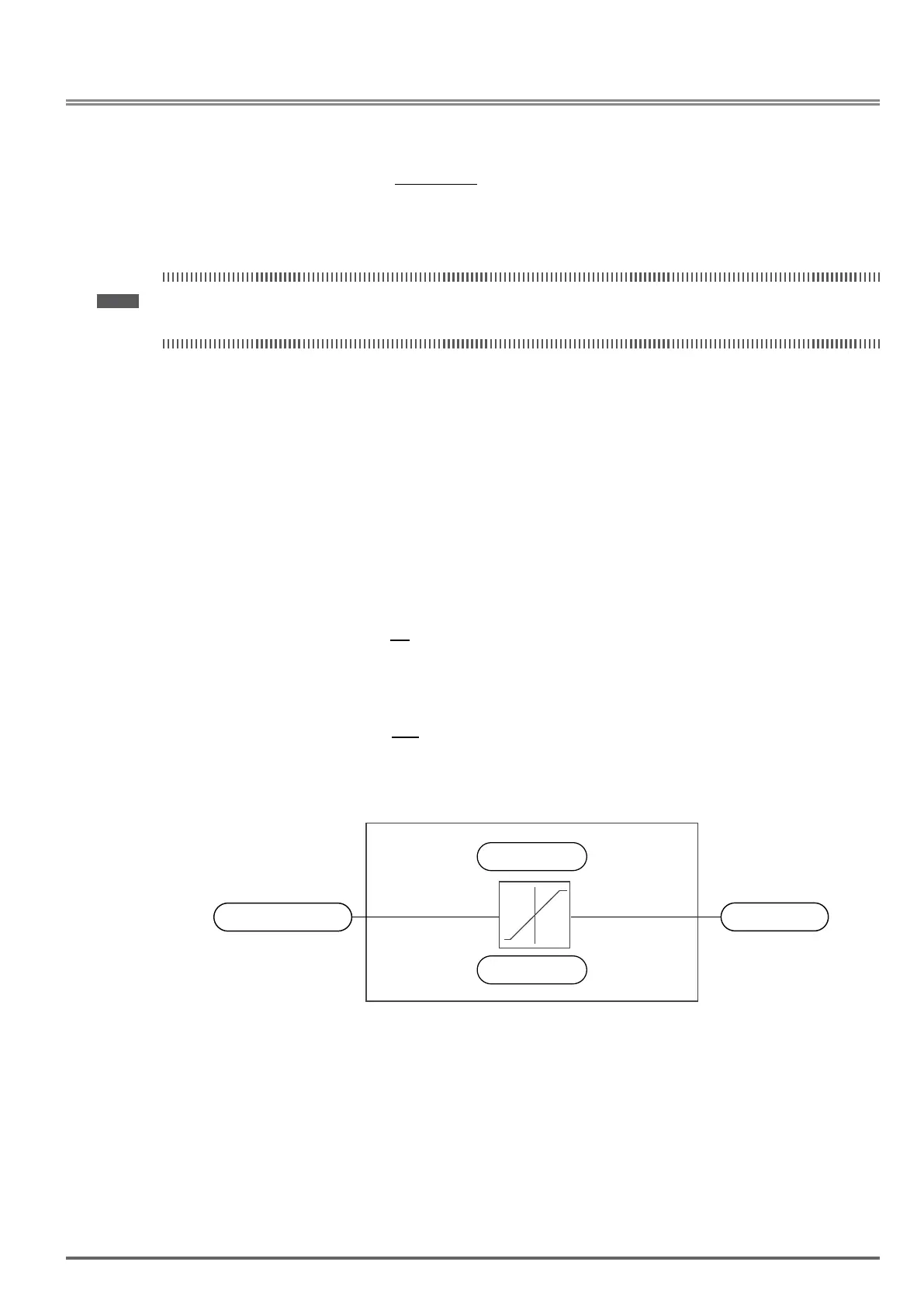

ADL300 • Functions description and parameters list 5
A - Programming
A.1 Asynchronous/Synchronous selection
The ADL300 is factory-set to operate in asynchronous motor control mode.
To switch to the synchronous motor control mode, set PAR 6100 Load synch control (Menu 4 - DRIVE CONFIG). For
information on switching control mode via keypad, reference should be made to the ADL300 Quick Start Guide (via inte-
grated keypad, see paragraph 8.2.9; via optional keypad, see paragraph 8.3.15).
Note! If synchronous motor control is selected, use the ADL300 Description of functions and list of parameters – Vector inverter for lifts with synchro-
nous motors manual
A.2 Menu display modes
The programming menu can be displayed in two modes, which can be selected using the Access mode parameter (04 -
DRIVE CONFIG menu):
Easy (default) only the main parameters are displayed.
Expert all the parameters are displayed.
A.3 Programming of “function block” analog and digital input signals
The signals, variables and parameters of each single “function block” of the drive are interconnected in order to achieve
the congurations and controls inside the control system.
These can be managed and modied using the keypad, PC congurator or eldbus programming.
The programming mode is based on the following logic:
Src (source; i.e.: Ramp ref 1 src, PAR: 610)
This term denes the source of the function block input, i.e. the signal to be processed in the function
block.
The di󰀨erent congurations are dened in the relative selection lists
.
Mon (display; i.e.: Ramp ref 1 mon, PAR: 620)
This term refers to the variable output from the function block, which is the result of the calculations
performed on the actual block
.
Input selected
Variable
src Monitor
Function block
Parameter
Parameter
A.4 Variable interconnections mode
The source (src) allows the desired control signal to be assigned to the function block input.
This operation is performed by using specic selection lists.
Possible control signal sources:
1 – Physical terminal
The analog and digital signals come from the terminal strip of the regulation card and/or from those of the expansion cards.
