78 ADL300 • Functions description and parameters list
18 - TORQUE CONFIG
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
18.1 2350 Torque curr lim Pos A FLOAT 16/32BIT CALCF 0.0 CALCF ERWS FVS
Setting of the active torque limit of the drive for the positive current direction (clockwise rotation and anti-clockwise braking).
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
18.2 2352 Torque curr lim Neg A FLOAT 16/32BIT CALCF 0.0 CALCF ERWS FVS
Setting of the active torque limit of the drive for the negative current direction (anti-clockwise rotation and clockwise braking).
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
18.3 2354 Torque curr lim sel ENUM Sorg limcoppia 0 3 ERWZ FVS
Setting of the type of behaviour of the drive in the current limit condition.
0 O󰀨
1 T clim +/-
2 T clim mot/gen
3 T limit src
If set to 0 no specic type of current limitation is set.
If set to 1 the active positive torque limit is Torque curr lim Pos and the active negative torque limit is Torque curr lim Neg.
speed
Torque curr lim Neg
Torque curr lim Neg
Torque curr lim Pos
Torque curr lim Neg
+1% di Rated speed
-1% of Rated speed
speed
torquetorque
Torque curr lim Pos
Torque curr lim Neg
Torque curr lim Pos
Torque curr lim Pos

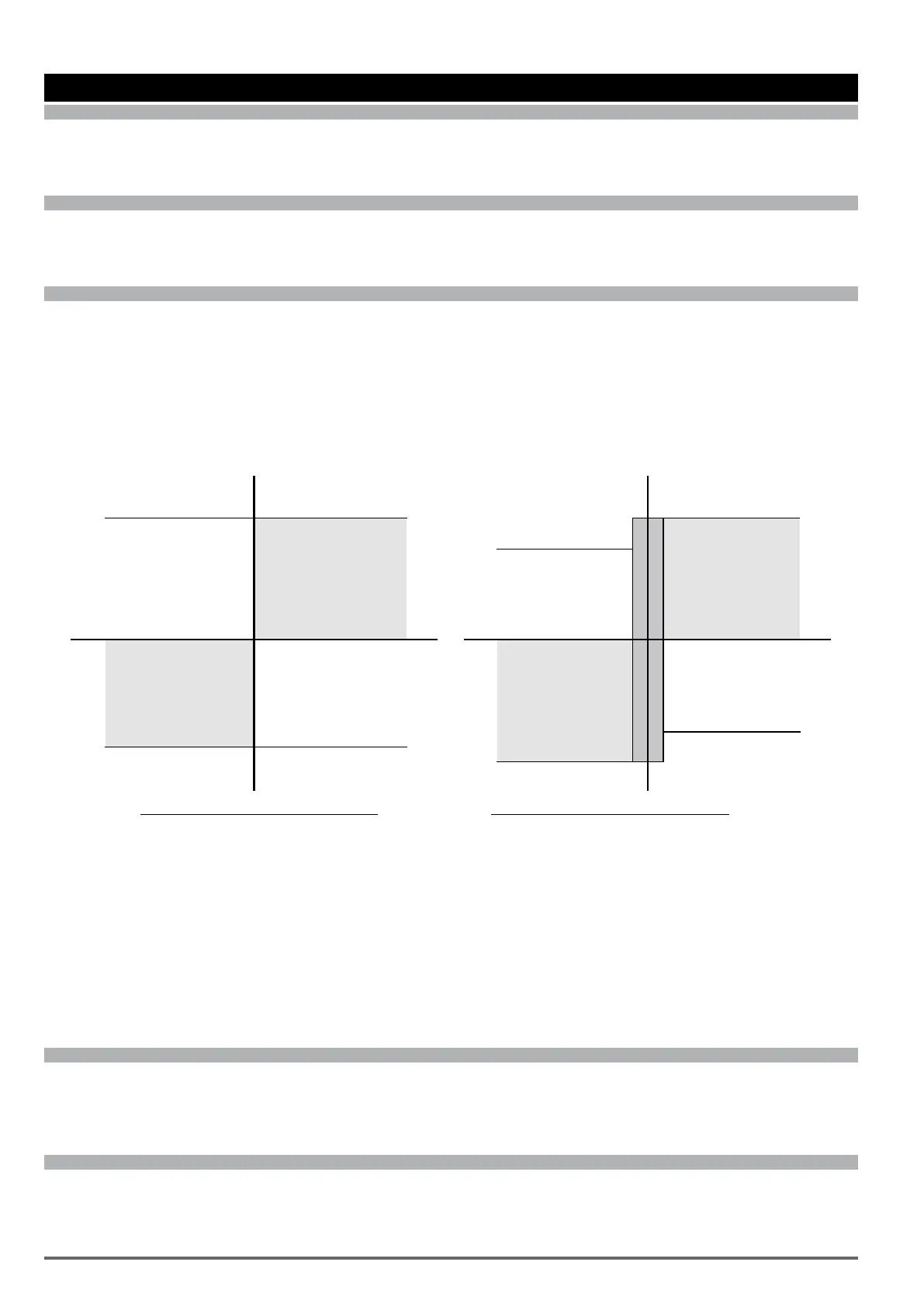

Torque limits with Torque curr lim Sel = 1 Torque limits with Torque curr lim sel = 2
If set to 2 three conditions are possible:
1 – If the motor speed is > +1% of Rated speed the active positive torque limit is Torque curr lim Pos and the active
negative torque limit is Torque curr lim Neg.
2 – If the motor speed is < -1% of Rated speed the active positive torque limit is Torque curr lim Pos and the active
negative torque limit is Torque curr lim Neg.
3 – If -1% of Motor non speed < motor speed < + 1% of Rated speed the active positive torque limit is Torque curr lim
Pos and the active negative torque limit is Torque curr lim Neg
If set to 3 the torque limits are symmetrical. The value written in the source selected via the Torque limit src parameter
(PAR 2358) is taken as the torque limit.This mode is not managed with SSC control mode.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
18.4 2358 Torque limit src LINK 16/32BIT 3726 0 16384 ERWZ F_S
Selection of the origin (source) of the signal to be used for the torque current limit. The signals that can be associated with
the function are listed in the “L_LIM” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
18.5 2360 Torque climPos Inuse A FLOAT 16/32BIT 0.0 0.0 0.0 ER FVS
The positive torque limit value currently being used is displayed.
