5.3 – LIFT SEQUENCES
This menu shows the parameters used to manage and dene the travel of the lift depending on the status of the inputs and alarms.

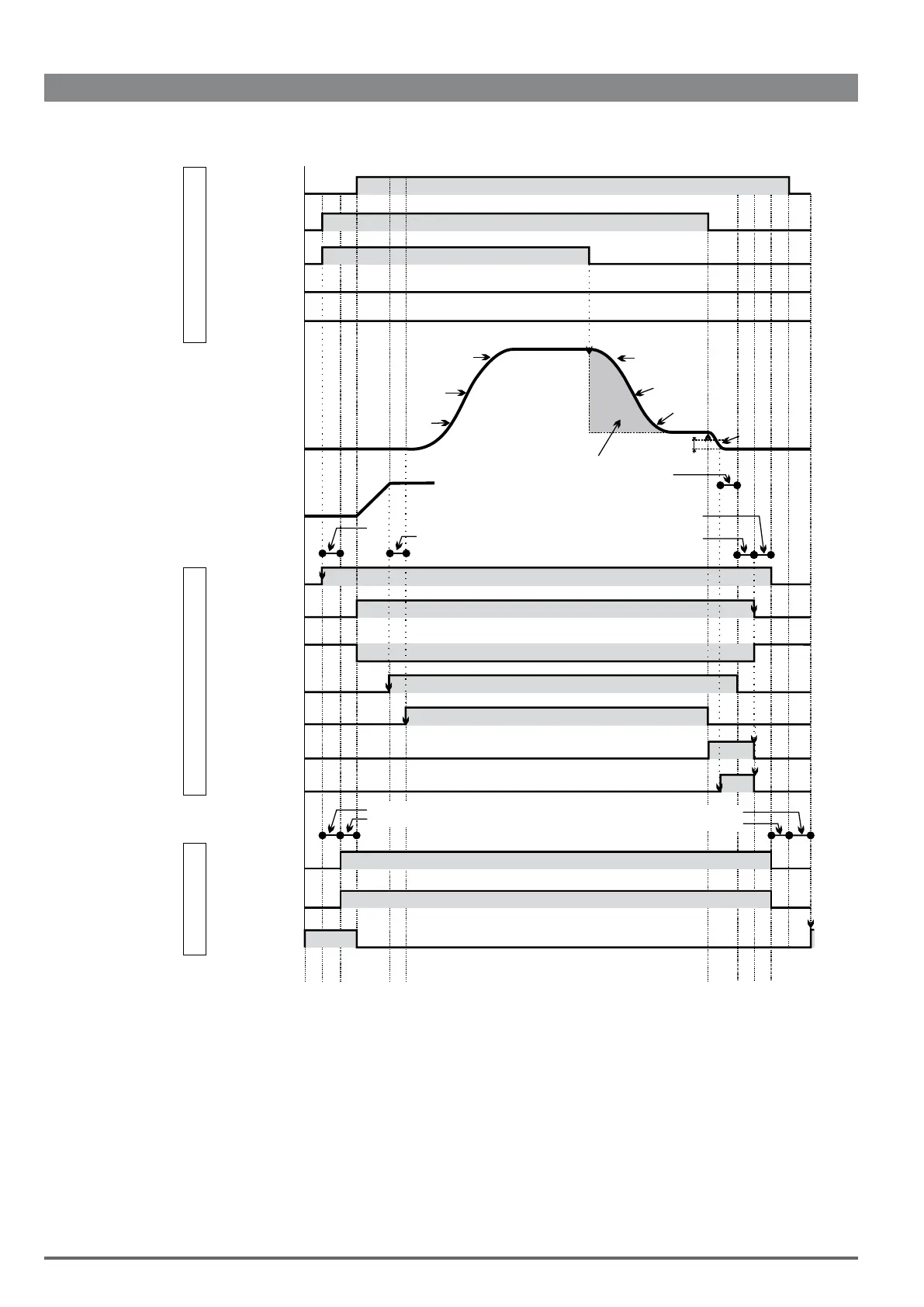

The structure of the lift sequences is summarised below.
K4 delay
K2M/K3M delay
Acc ini jerk
Acceleration
Dec ini jerk
Deceleration
Dec end jerk
End decel
Brake open delay
Open contac.
Start Fw / Rw
Close contact
Start magnet.
Open brake
Running
Wait 0 ref
Close brake
Run Cont Close delay
Spd 0 ref delay
Brake close dly
Start / Rev cmd
Mlt spd s 0
Mlt spd s 1
Mlt spd s 2
Speed ref 1
Magn. current
RUN cont
Lift enable
cmd mon
BRAKE cont mon
Lift Start mon
Lift Landing mon
Lift DC brake mon
Slow Down dist
PLC TO DRIVE SIGNALS
DRIVE TO PLC SIGNALS
Acc end jerk
(Only FOC/BRS)
(Only V/F)
HW Enable
Spd 0 ref thr
SAFETY SIGNALS
Contactorless OK
Contactorless
enable
K2M / K3M
K4
K4 delay
K2M/K3M delay of the contactors
Run Cont open delay
Starting sequence:
1 Reading of the enable hardware input and checking for alarms (enabling is aborted in case of an alarm)
2 Detection of the Enable and Start commands as set in the Sequence start mode parameter
3 When the Start forward/reverse command is received, a command is sent to close the contactors, depending on the
direction of travel
4 When the time set in Cont close delay has elapsed the internal Enable lift signal is activated
5 The system waits for the magnetisation signal from the drive (Drive ready)
6 At the end of magnetisation the open brake signal is activated
