gefran SIEIDrive ADL300 Functions Description And Parameters List

56 ADL300 • Functions description and parameters list
12 - ANALOG INPUTS
Note ! These parameters are only available with cards provided with analog inputs.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
12.1 1600 Analog input 1X mon cnt INT16 16/32BIT 0 0 0 ER FVS
12.13 1650 Analog input 2X mon cnt INT16 16/32BIT 0 0 0 ER FVS
The value of the voltage on the output of the function block of the relative analog input is displayed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
12.2 1602 Analog inp 1X type ENUM -10V..+10V 0 2 ERW FVS
12.14 1652 Analog inp 2X type ENUM -10V..+10V 0 2 ERW FVS
Selection of the type of input (voltage or current). Depending on the input signal, move the switches on the regulation card.
The factory parameter is inputs set for di󰀨erential voltage signals (± 10V).
0 -10V..+10V
1 0.20mA , 0.10V
2 4..20mA
Select option 0 in order to connect a maximum voltage of ±12.5V (typically ±10V/5mA) to the analog input concerned. If the
signal is used as a reference, reverse the direction of rotation by inverting the voltage polarity.
Select option 1 to connect a max voltage of 12.5V (typically 10V/5mA) or a signal in current from 0 ... 20 mA to the analog
input concerned. The signal must be positive.
Select option 2 to connect a current signal of 4...20 mA to the analog input concerned. The signal must be positive.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
12.3 1604 Analog inp 1X scale FLOAT 1.0 -10.0 10.0 ERW FVS
12.15 1654 Analog inp 2X scale FLOAT 1.0 -10.0 10.0 ERW FVS

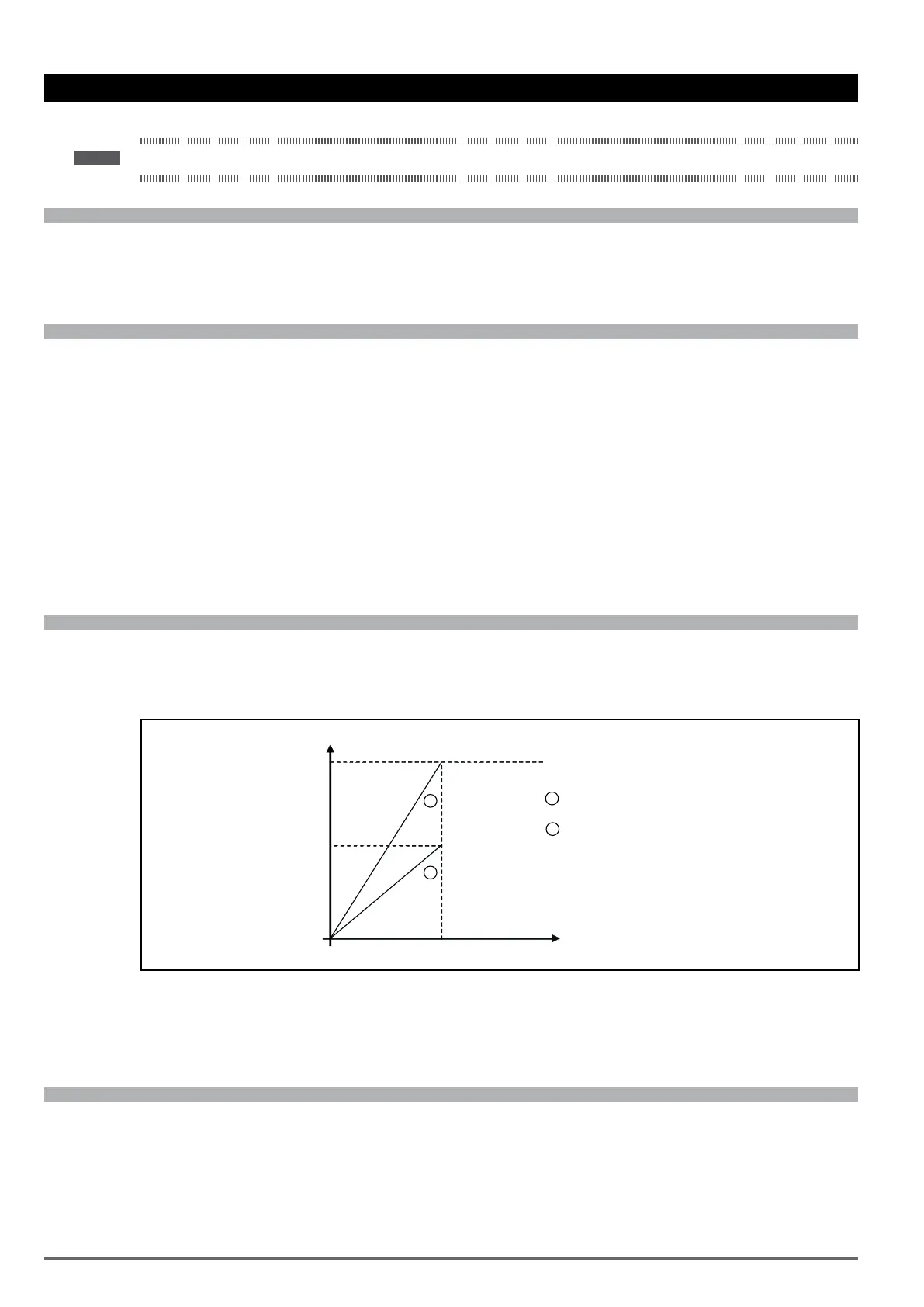

Setting of a multiplier factor to be applied to the relative analog input of the expansion card.
1
2
1
2
Analog inpxscale = 1,0
Analog inpxscale = 2,0
0
10V
100%
50%
5V
Speed
Example :
The speed reference of a drive is assigned with a max external voltage of 5V. With this value the drive must reach the
maximum speed allowed (set using Full scale speed).
As the Analog inp XX scale parameter the scale factor of 2 is entered (10V : 5V)
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
12.4 1606 An inp 1Xoffset tune BIT 0 0 1 ERW FVS
12.16 1656 An inp 2Xoffset tune BIT 0 0 1 ERW FVS
Self-tuning command for the o󰀨set of the relative analog input of the expansion card. Automatic ne tuning of the input.
To perform self-tuning, set the input signal to its minimum value and execute the command. The conditions containing an
o󰀨set can be compensated. When this command is sent, An inp xX o󰀨set tune is automatically selected so that the avail-
able input signal corresponds to the zero value of the variable.
