Gesipa 8000 - Dimension Sheet, Technical Data and Working Range

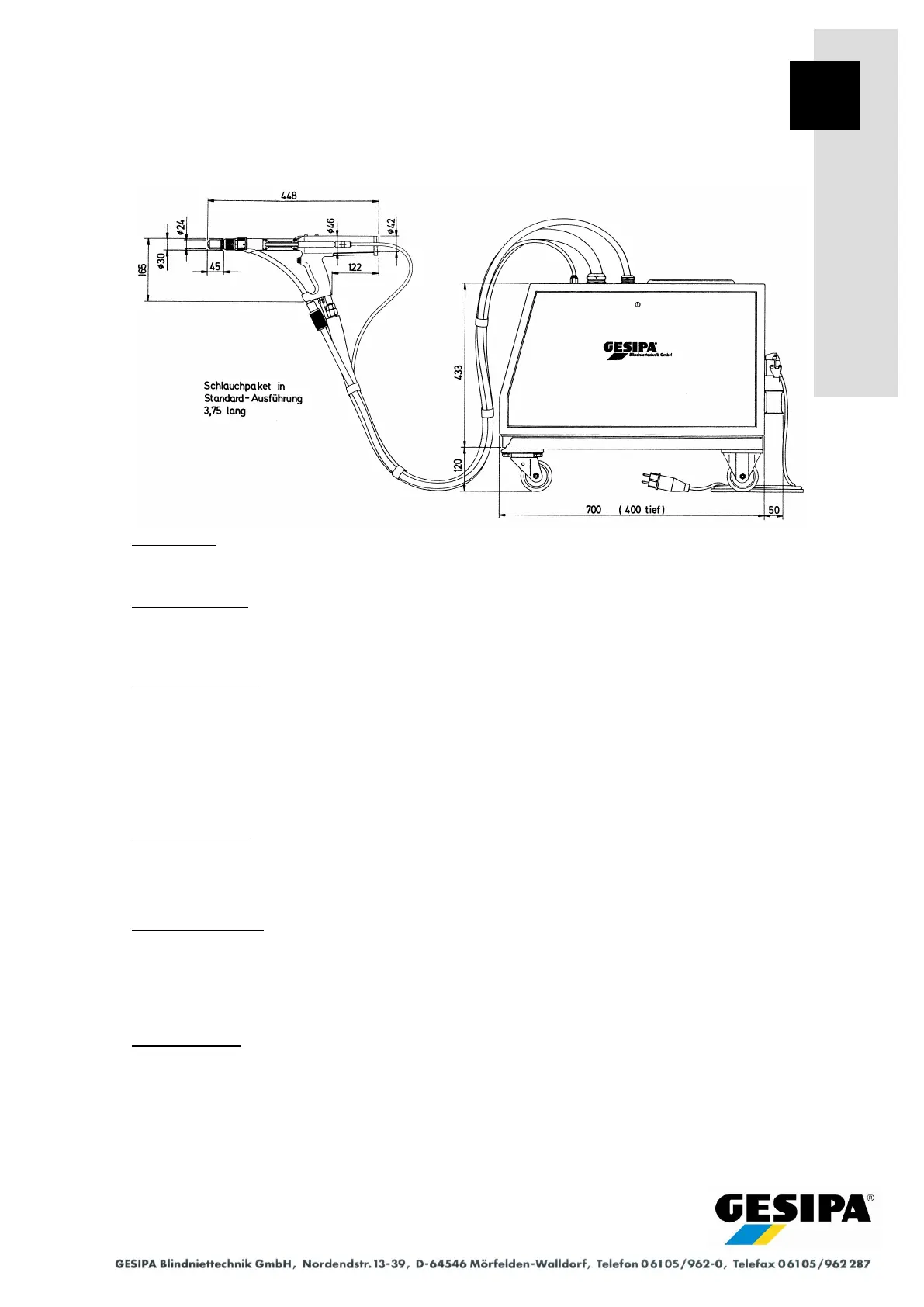

1 Dimension Sheet, Technical Data and Working Range
Dimension Sheet, Technical Data
and Working Range
Supply unit
Weight:
100 kg
Volume of spent mandrel container:
approx. 1800 - 5500 pieces (3.5 l) depending on size
Electrical system
- Nominal voltage:
230 Volt ~ 50 Hz
- Nominal current:
< 2.5 A
- Protection class:
IP 54
Pneumatic system
- System pressure:
< 10 bar
- Operating pressure:
6 - 7 bar
- Air consumption/riveting operation:
15 NL
- Air consumption/spent mandrel evacuation system (VAS)
340 NL/min.
- Power cable:
½ " (12.5 mm) max. 5 m long
- Mandrel evacuation hose:
3.75 m long / outside  8 mm / inside  5 mm
- Pressure booster:
pneumatic/hydraulic
Hydraulic system
- Hydraulic oil ISO-VG 46 (e.g. Shell Hydrol HV 46 or comparable HVLP-D products):
1.2 l
- Viscosity, kinematic at 40°C (DIN 51562) with no silicone components:
47 mm²/s
Ambient temperature:
10 - 40 °C
Blind riveting gun
- Weight:
approx. 2.5 kg
- Setting stroke:
16 - 20 mm
- Setting force:
11770 N
- Length of hose assembly (standard):
3.75 m
- Working cycle (theoretical setting rate) when used as intended:
1.25 s
Working range
- Blind rivet up to Ø 5.0 mm stainless steel
- Blind rivet up to Ø 6.0 mm steel
- Blind rivet up to Ø 6.4 mm aluminium
- Max. setting head diameter:
11.4 mm
- Max. blind rivet body length:
(other lengths available on request)
25.0 mm
The device is set up for a defined type of blind rivet
suitable for automatic machines as per delivery agreement.
