9.2 Pressure Sensors
GAV Settings
9.2 Pressure Sensors
DS1 System pressure
Monitors the compressed air supply to GAV
(for settings see Section 5 "Start-Up and Operation").
Max. system pressure
System pressure fault on exceeding the set value.
Min. system pressure
System pressure fault on dropping below the set value.
DS2 Riveting gun air
Monitors the compressed air supply to the GAV riveting gun.
Hand trigger
Cycle starts when the pressure drops below the set value.
Vent cycle
Cycle continues from stroke position when the pressure drops be-
low the set value.
Supply delay
Delayed supply of the riveting gun air blocked in home position af-
ter pressure drops below the min. DS1 system pressure.
Supply time
Duration of riveting gun air supply.
The setting range of the individual parameters can vary depending
on other set parameters.
Default
Resets all settings to default.
Cycle
Executes one processing cycle
(see Section 8.7 "Manual Operation" "Cycle" function).
Stroke
Moves riveting gun to stroke position
(see Section 8.7 "Manual Operation" "Stroke Position" function).
Cal
"DS1/DS2 Pressure Sensor Calibration" menu.
DS3
"DS3 Pressure Sensor Calibration" menu.
Navigation:
AUTO
►MAN
► Menu
► GAV settings
► Pressure sensors

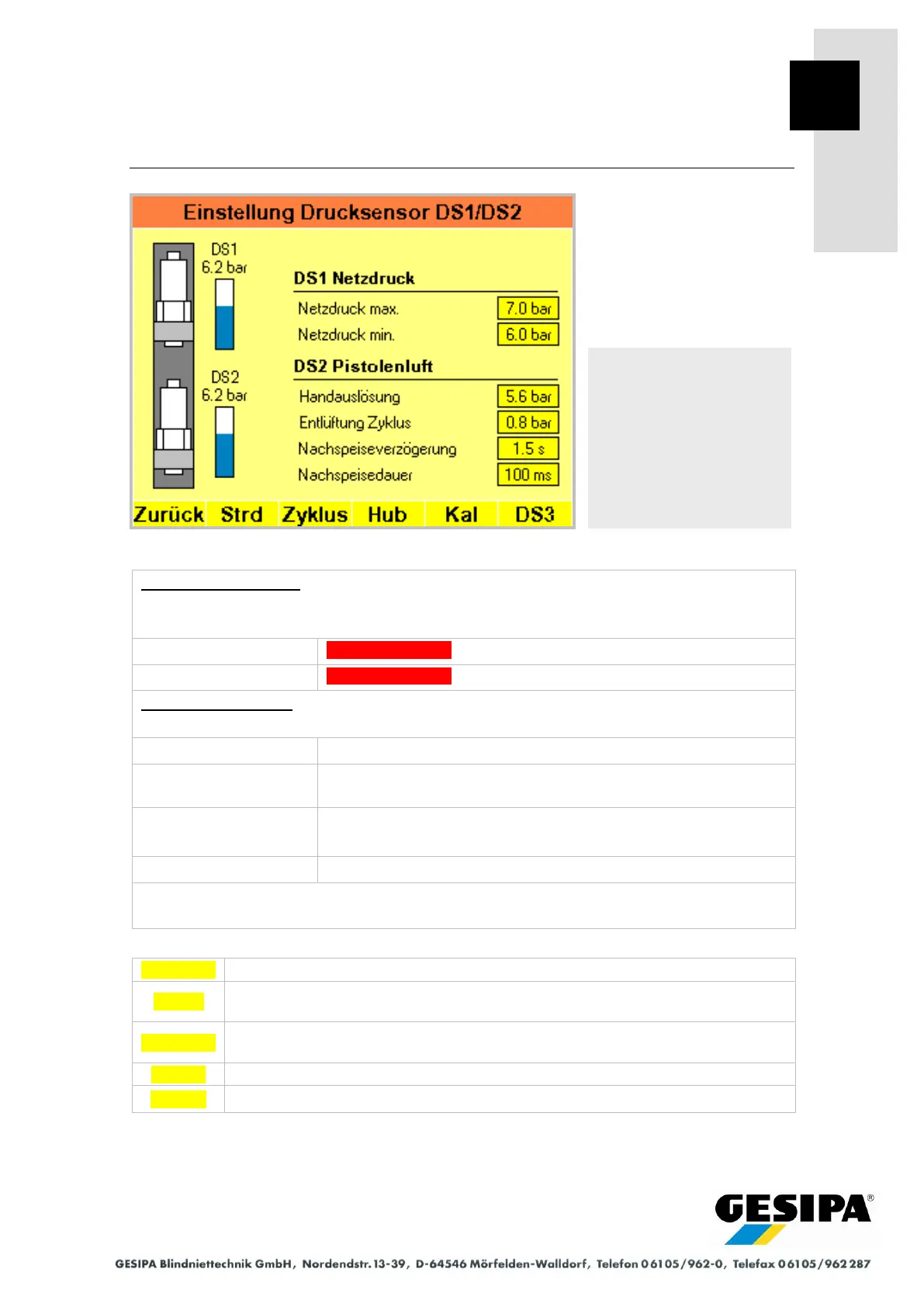

DS1/DS2 Pressure sensor
settings menu
9
