Gesipa 8000 - Small Pressure Booster

9.4 Small Pressure Booster
GAV Settings
9.4 Small Pressure Booster
WS3 Oil level
Monitors the oil level in the small pressure booster.
Warning - min. oil level
Oil level warning on reaching the set value.
Fault - min. oil level
Oil level fault on reaching the set value.
Fault delay
The evaluation of the "oil level fault" is delayed.
Lock stroke
Cannot be set.
Shows the last lock stroke. This parameter is used to set the pa-
rameter for "nosepiece fault".
Nosepiece fault
Nosepiece fault on reaching the set value.
Setting:
- Release spreader nosepiece on riveting gun by a ¼ turn
- Open and close the lock with the Open button
- Adopt value of the "lock stroke" parameter
- Tighten the spreader nosepiece on the gun
The setting range of the individual parameters can vary depending
on other set parameters.
Default
Resets all settings to default.
Cycle
Executes one processing cycle
(see Section 8.7 "Manual Operation" "Cycle" function).
Open
Opens the riveting gun lock in home position
(see Section 8.7 "Manual Operation" "Lock Open" function).
Cal

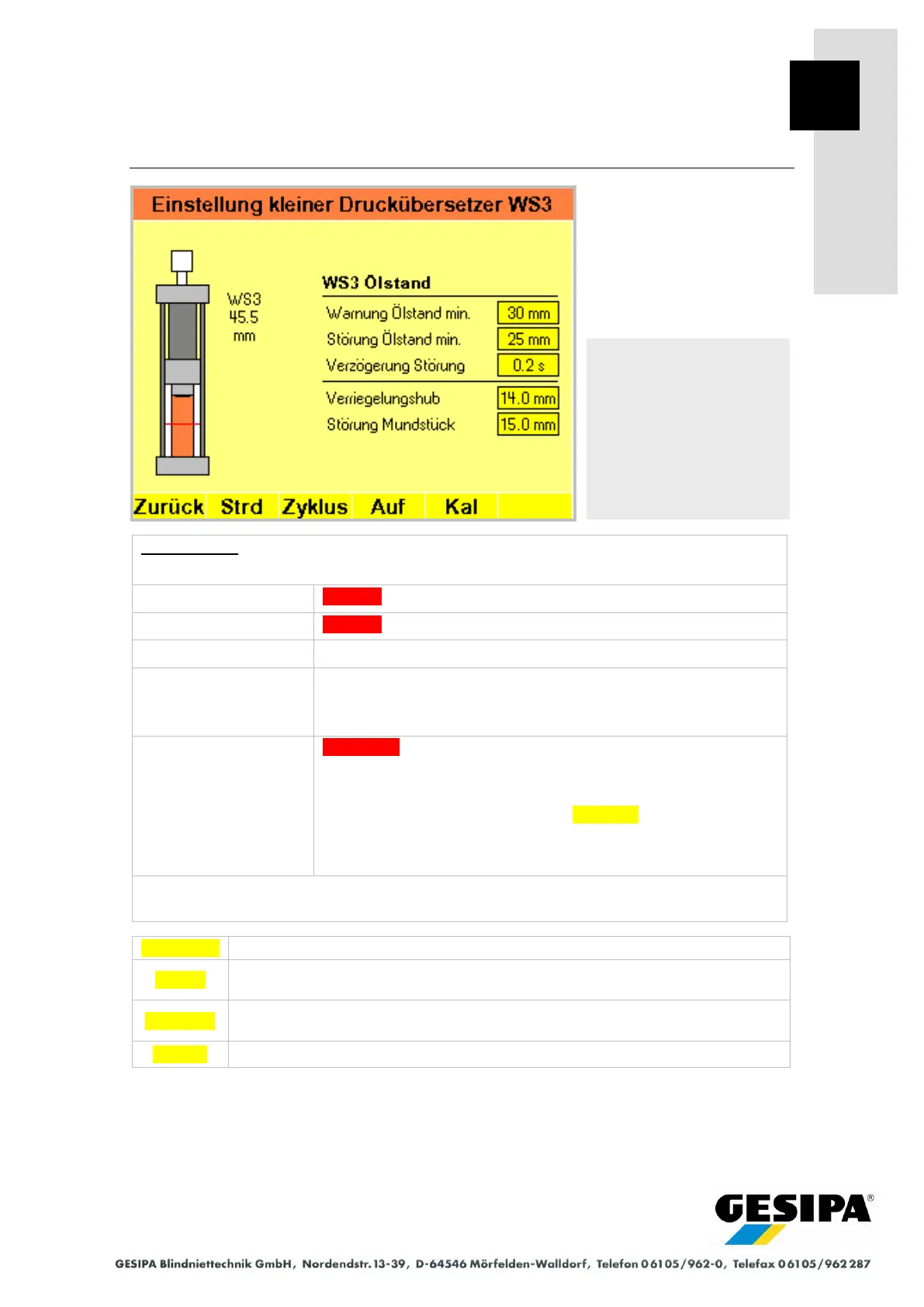

"WS3 Small Pressure Booster Calibration" menu.
9
- 40 -
Navigation:
AUTO
►MAN
► Menu
► GAV settings
► Small pressure booster
Small pressure booster
settings menu WS3 dis-
placement sensor
