9.3 Large Pressure Booster
GAV Settings
9.3 Large Pressure Booster

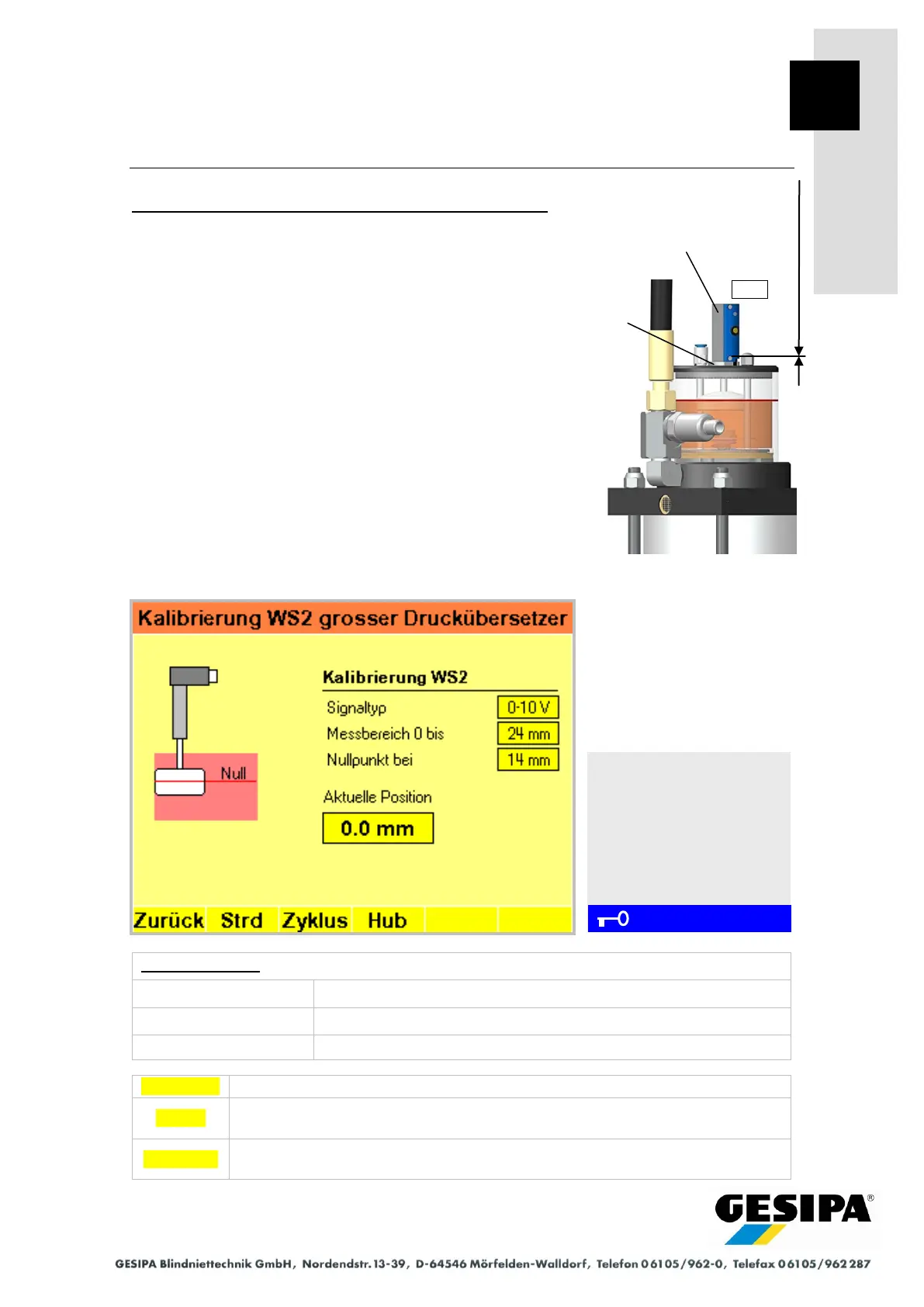

WS2 Displacement Sensor Calibration and Basic Setting
The displacement sensor (WS2) can be replaced with the
pressure booster installed in position.
When installing the displacement sensor (WS2) the cable
side of the sensor body must be directed downwards to-
wards the top of the sensor retaining nut and the longitudinal
side of the displacement sensor (WS2) additionally pressed
flush against the sensor holder and screwed in position.
The displacement sensor (WS2) is calibrated and the cali-
bration data "signal type" and "measuring range" in the
"WS2 Large Pressure Booster Calibration" menu are set at
the factory and must not be changed.
The basic setting of the float is achieved with the "zero
point" parameter. For this purpose, the oil level must be
topped up to reach the mark on the sight glass. The "zero
point" parameter is set such that the "current position" is
0.0 mm. The "zero point" should then be 14 mm. Slight cor-
rections can be made by shifting the displacement sensor in
the pressure booster.
Signal type of displacement sensor.
Measuring range of displacement sensor.
Zero point of displacement sensor.
Resets all settings to default.
Executes one processing cycle
(see Section 8.7 "Manual Operation" "Cycle" function).
Moves riveting gun to stroke position
(see Section 8.7 "Manual Operation" "Stroke Position" function).
Navigation:
AUTO
►MAN
► Menu
► GAV settings
► Large pressure booster
► WS2
► Cal
Large pressure booster
calibration menu
WS2 displacement sensor
Installation dimension
0 mm
