Gesipa 8000 - Separator

9.5 Separator
GAV Settings
9.5 Separator
Basic setting of proximity switch NS1
(vibration feed control)
- Disconnect plug and release lock nut.
- Set sensor flush with inner edge of chute plate.
- Tighten lock nut and reconnect plug.
Basic setting of proximity switch NS2
(separator scoop monitoring)
- Separator closed in home position.
- Disconnect plug and release lock nuts.
- Screw in sensor by hand as far as it will go.
- Release sensor by a ¼ turn.
- Tighten lock nut and reconnect plug.
Basic setting of control valve
(separator stop damping)
Undo adjusting screw of control valve by 2 turns from the closed position.
NS1 Vibration feed control
See Section 9.1 "Vibration Feed Unit Settings".
NS2 Separator
Monitors the status of the separator.
Separator fault when the respective end position is not reached.
Fault delay
The evaluation of the "separator fault" is delayed.
Safe monitoring
The separator closing is the start condition for the cycle.
Default
Resets all settings to default.
Cycle
Executes one processing cycle
(see Section 8.7 "Manual Operation" "Cycle" function).
Open
Opens the separator in GAV home position
(see Section 8.7 "Manual Operation" "Separator Open" function).
9
- 42 -
Navigation:
AUTO
►MAN
► Menu
► GAV settings
► Separator

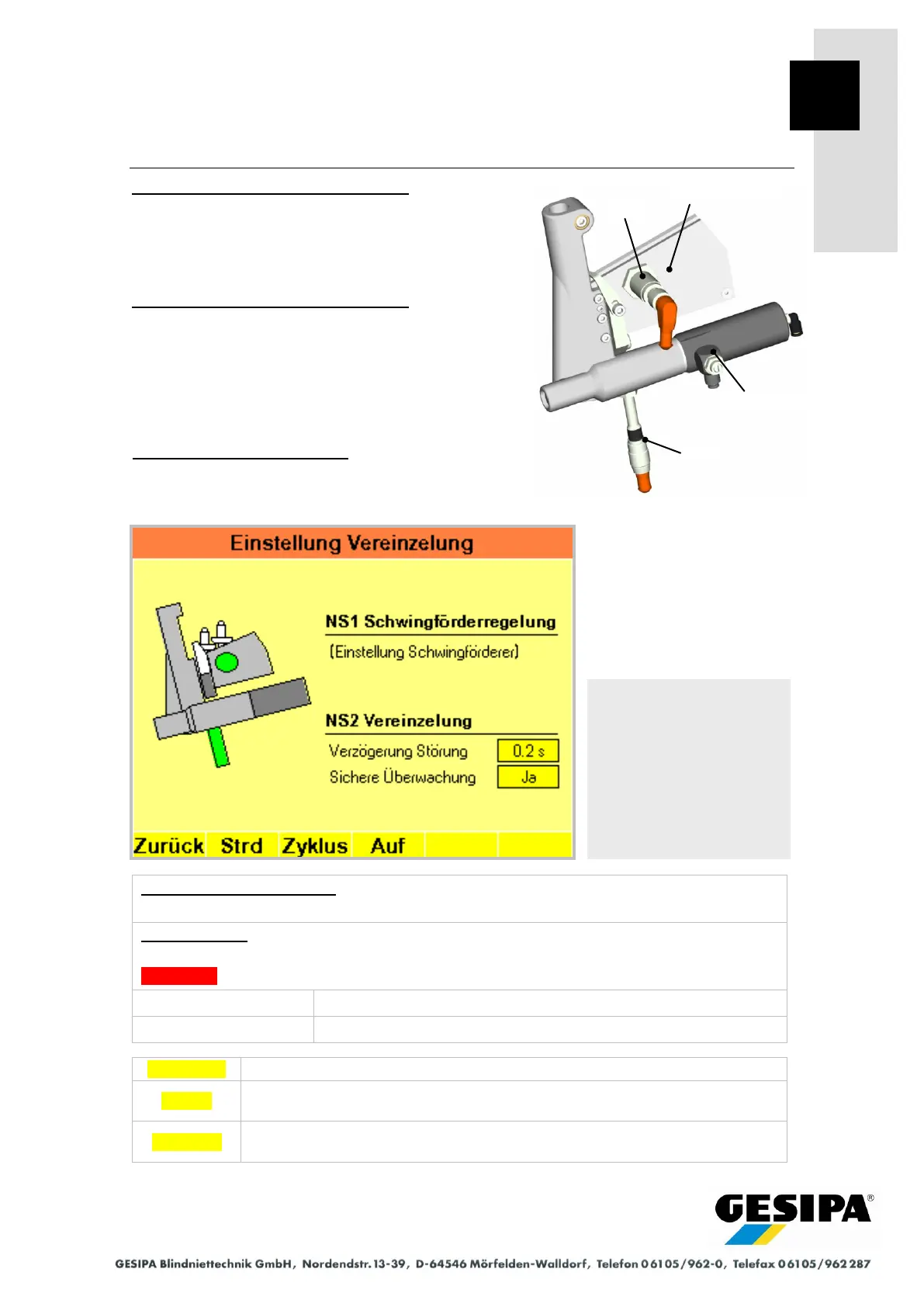

Separator settings
menu
NS1
NS2
Chute plate
Control valve
