Gesipa 8000 - PLC Interface Test

9.13 PLC Interface Test
GAV Settings
9.13 PLC Interface Test

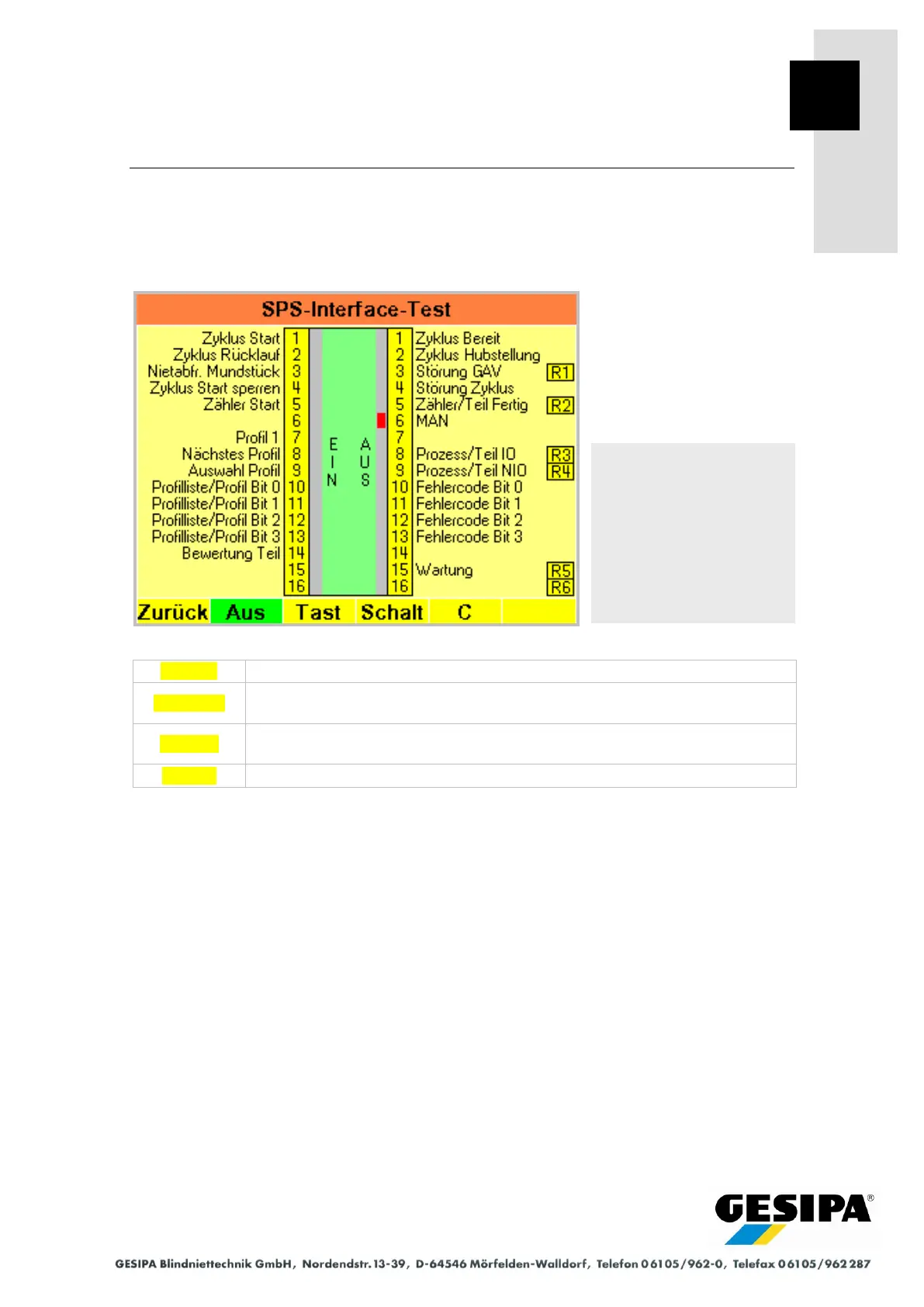

The input and output assignments of the PLC interface are shown and the connection from the
GAV to the interface tested in the PLC interface test menu. Communication with a connected
PLC, an operating and evaluation unit or input and signalling devices can be additionally tested
individually for each input and output.
Refer to Section 28 "PLC Interface".
OFF
No test function active.
Button
Output test active, outputs 1..16 can be selected with the rotary knob and
switched on/off with the button function.
Switch
Output test active, outputs 1..16 can be selected with the rotary knob and
switched on/off with the switch function.
C
Outputs 1..16 are reset when the output test is active.
9
- 52 -
Navigation:
AUTO
►MAN
► Menu
► GAV settings
► PLC interface test
PLC interface test
