Functional Description

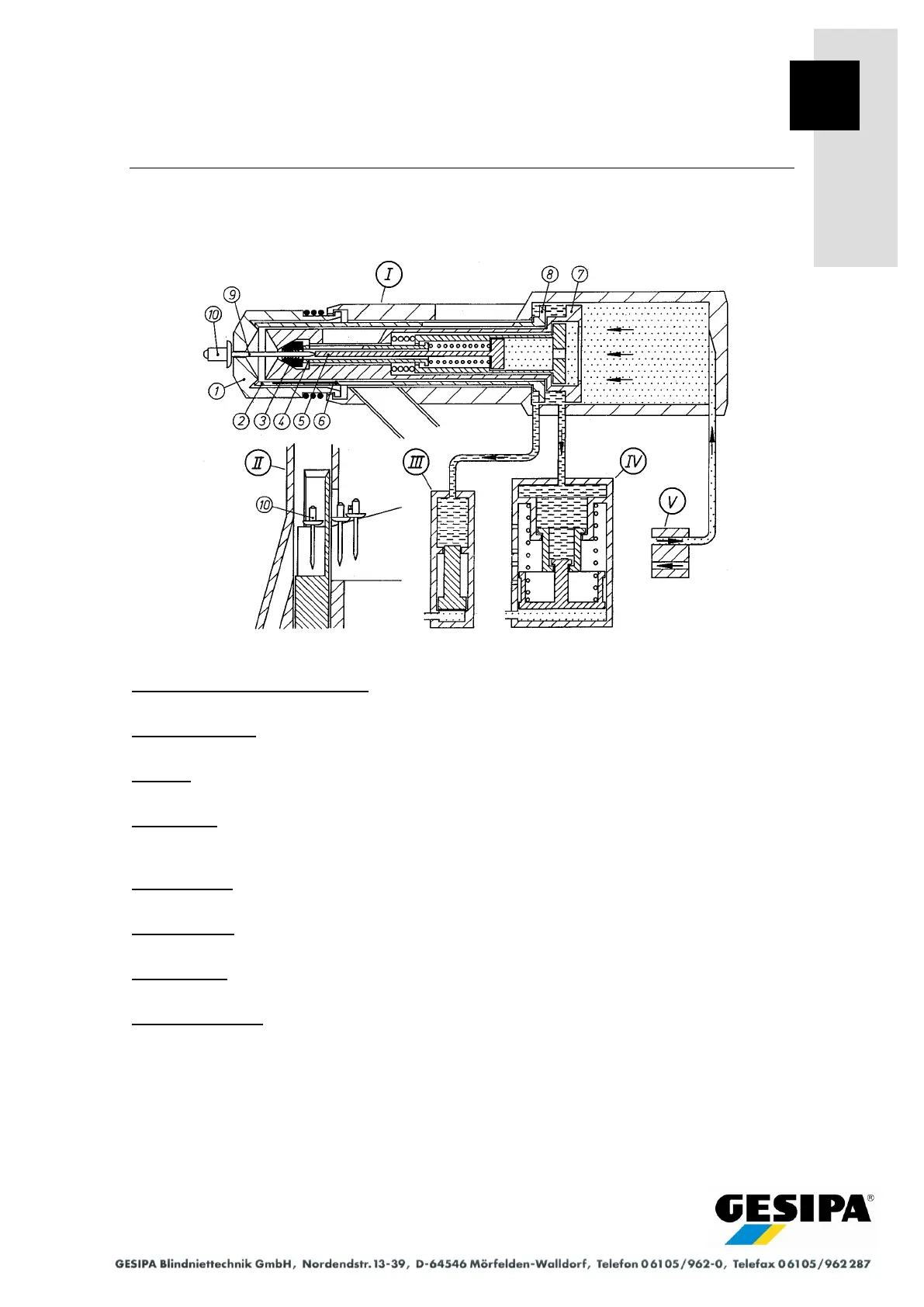

7 Functional Components of the Blind Riveting Gun
The schematic diagrams and descriptions below illustrate the control and functional procedures
in simplified form.
Spreader nosepiece - 3-piece - (1)
Loads the blind rivet positioned in the gun head into the processing position.
Closing sleeve (2)
Locks and unlocks the spreader nosepiece (1).
Jaws (3)
Grasp the blind rivet mandrel (9) and set the blind rivet (10).
Jaw tube (4)
Transfers the closing pressure to the jaws (3) to securely grasp the blind rivet mandrel (9) and
set the blind rivet (10).
Stop piston (5)
End stop for blind rivet mandrel (9) while loading the rivet.
Lock spring (6)
Positions the blind rivet (10) in the gun head.
Pull piston (7)
Bears the complete gripping mechanism for setting the blind rivet (10).
Pressure piston (8)
Bears the closing sleeve (2) that locks and unlocks the spreader nosepiece (1).
