9.3 Large Pressure Booster
GAV Settings
9.3 Large Pressure Booster

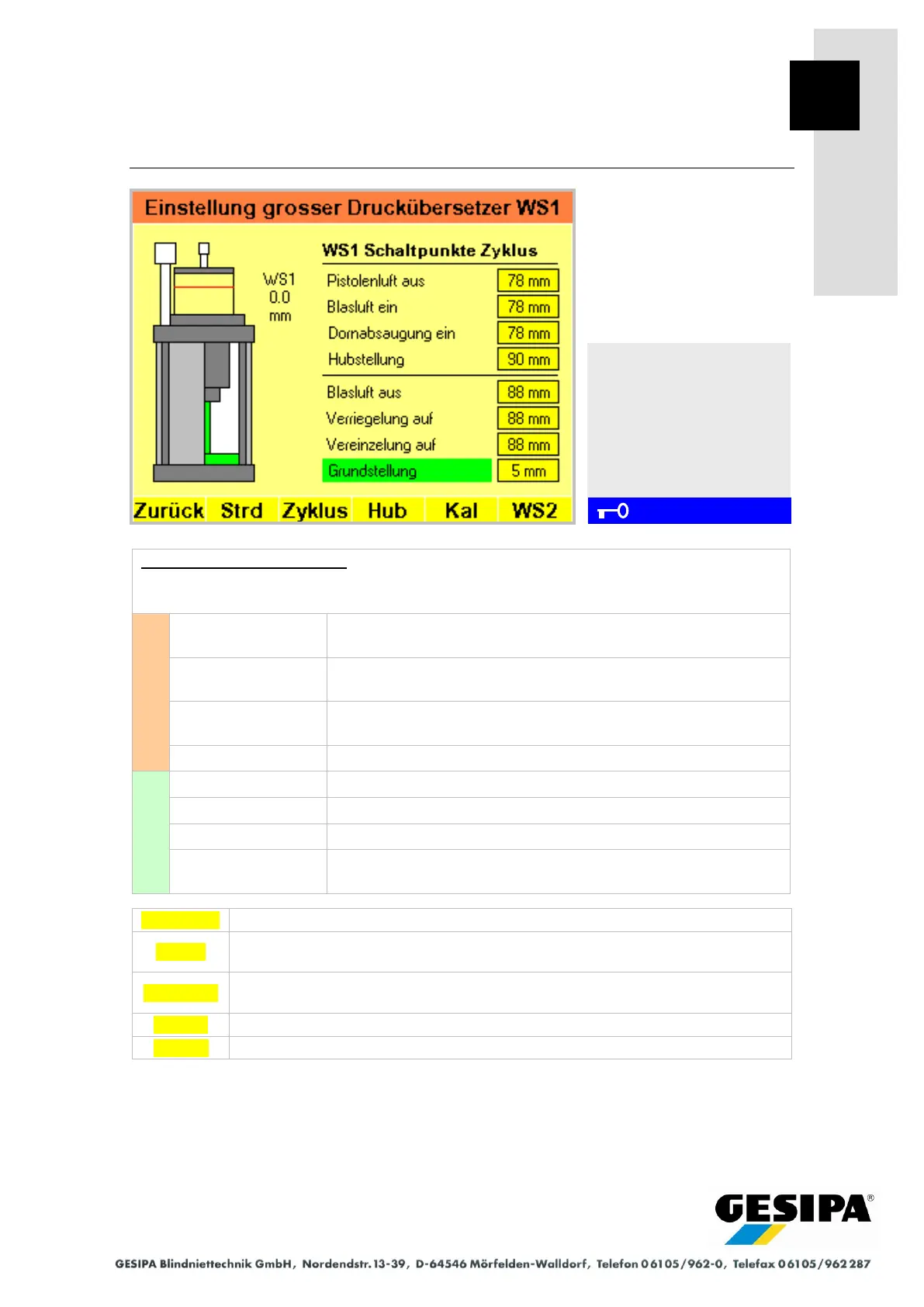

WS1 Cycle switching points
The switching points control the sequences within the processing cycle. The setting range is
the entire measuring range as from sensor zero point.
Pulling
Riveting gun air
OFF
Switches off the riveting gun air at the end of the power stroke,
the jaws are opened and the spend mandrel released.
Blow air ON
Switches on the blow air at the end of the power stroke, the
spent mandrel is ejected and a new blind rivet loaded.
Mandrel evacuation
ON
Switches mandrel on mandrel evacuation, the spent mandrel is
conveyed into the spent mandrel container.
Stroke position
Stroke position reached:
Return
Blow air OFF
Switches off the blow air.
Lock open
Opens the lock to load a blind rivet.
Separator open
Opens the separator for a new blind rivet.
Home position
Home position reached, the lock is activated and the separator
closed.
Default
Resets all settings to default.
Cycle
Executes one processing cycle
(see Section 8.7 "Manual Operation" "Cycle" function).
Stroke
Moves riveting gun to stroke position
(see Section 8.7 "Manual Operation" "Stroke Position" function).
Cal
"WS1 Large Pressure Booster Calibration" menu.
WS2
"WS2 Large Pressure Booster Settings" menu.
Navigation:
AUTO
►MAN
► Menu
► GAV settings
► Large pressure booster
Large pressure booster
settings menu
WS1 displacement sensor
GESIPA code
9
