9.3 Large Pressure Booster
GAV Settings
9.3 Large Pressure Booster
WS1 Displacement Sensor Calibration and Basic Setting
The displacement sensor (WS1) can be replaced with the pres-
sure booster installed in position. Based on the hydraulic con-
nection, the displacement sensor (WS1) should be installed on
the tie rod on the right-hand side.
When installing the displacement sensor (WS1) the end face of
the sensor body (cable side facing upwards) must be directed
with the sensor holder towards the top of the baseplate and the
longitudinal side of the displacement sensor (WS1) additionally
pressed flush against the cylinder wall and screwed in position.
The displacement sensor (WS1) is calibrated and the calibra-
tion data "signal type" and "measuring range" in the "WS1
Large Pressure Booster Calibration" menu are set at the factory
and must not be changed.
The basic setting of the pressure booster is achieved with the
"zero point" parameter. In the basic setting, "zero point" is set
such that the "current position" is 0.0 mm. The "zero point" pa-
rameter should then be 3 mm. Slight corrections can be made
by shifting the displacement sensor on the pressure booster.
Signal type of displacement sensor.
Measuring range of displacement sensor.
Zero point of displacement sensor.
Resets all settings to default.
Executes one processing cycle
(see Section 8.7 "Manual Operation" "Cycle" function).
Moves riveting gun to stroke position
(see Section 8.7 "Manual Operation" "Stroke Position" function).
Navigation:
AUTO
►MAN
► Menu
► GAV settings
► Large pressure booster
► Cal

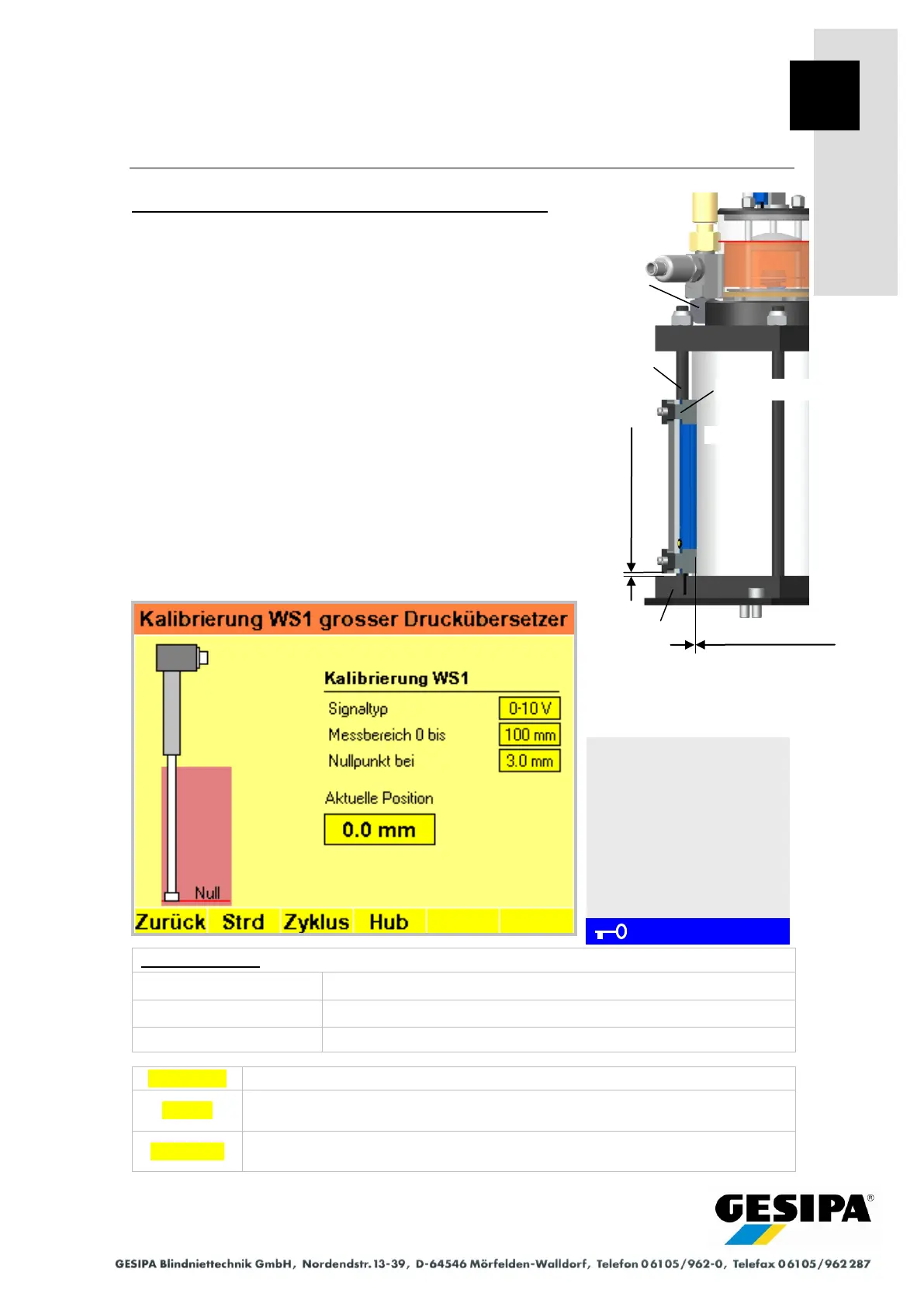

Large pressure booster
calibration WS1 displace-
ment sensor menu
Instalation dimension
0mm
Instalation dimension
"Aktuelle Position" 0,0mm
