9.3 Large Pressure Booster
GAV Settings
9.3 Large Pressure Booster

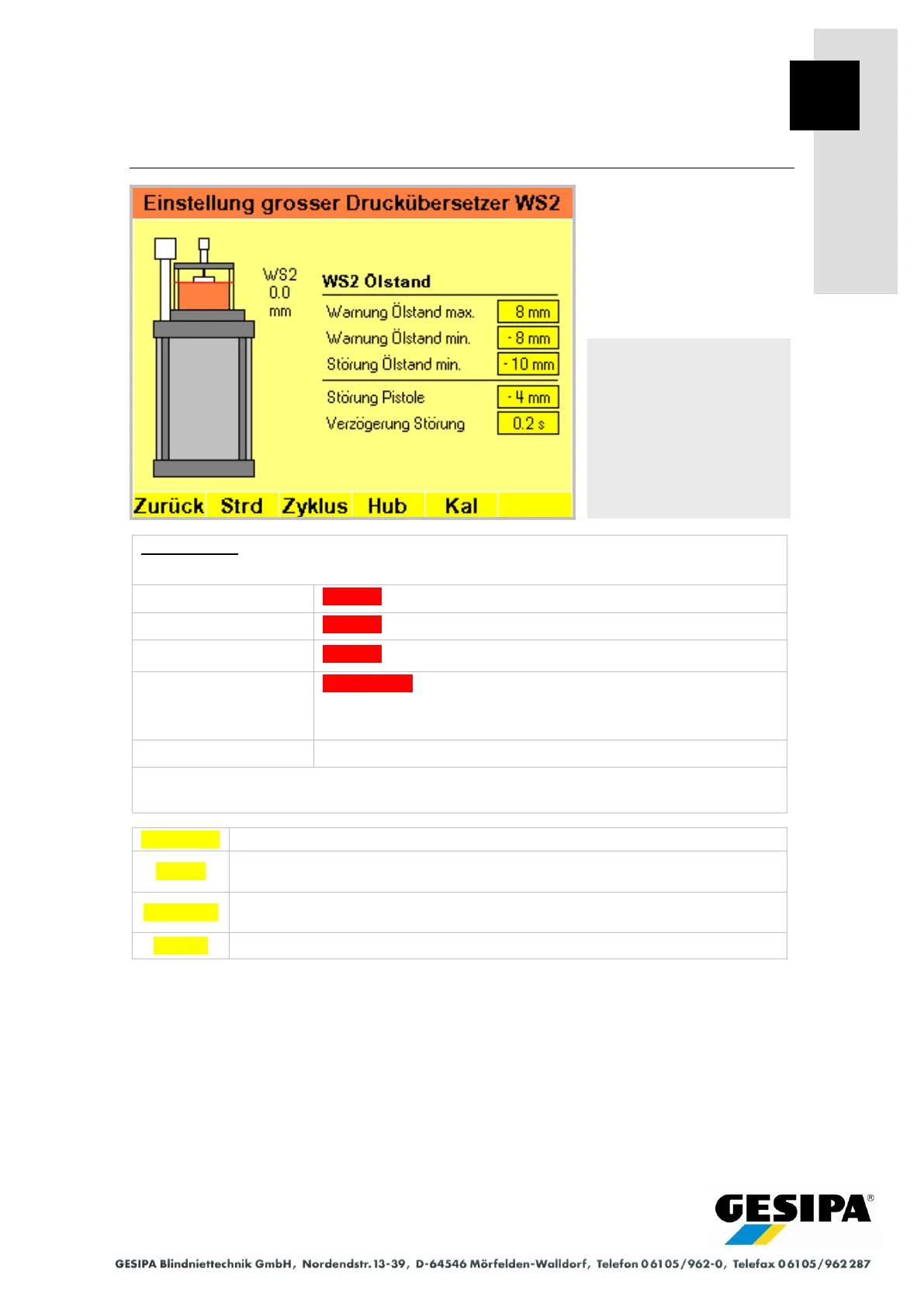

WS2 Oil level (3-8198)
Monitors the oil level in the reservoir of the large pressure booster.
Warning - max. oil level
Oil level warning on reaching the set value.
Warning - min. oil level
Oil level warning on reaching the set value.
Fault - min. oil level
Oil level fault on reaching the set value.
Fault - riveting gun
Riveting gun fault on reaching the set value.
A riveting gun blocked while moving back results in a rapid drop in
the oil level, the fault is evaluated in home position.
Fault delay
The evaluation of the "riveting gun fault" is delayed.
The setting range of the individual parameters can vary depending
on other set parameters.
Default
Resets all settings to default.
Cycle
Executes one processing cycle
(see Section 8.7 "Manual Operation" "Cycle" function).
Stroke
Moves riveting gun to stroke position
(see Section 8.7 "Manual Operation" "Stroke Position" function).
Cal
"WS2 Large Pressure Booster Calibration" menu.
9
Navigation:
AUTO
►MAN
► Menu
► GAV settings
► Large pressure booster
► WS2
Large pressure booster
settings menu WS2 dis-
placement sensor
