Gesipa 8000 - Blind Riveting Gun Repair Instructions; To replace lock spring 2-33; To replace jaws; To replace leaf spring 2-6093

Caution!
21 Blind Riveting Gun Repair Instructions
Grease
Jaws
Stop ring
Washer
Jaw housing
Caution!

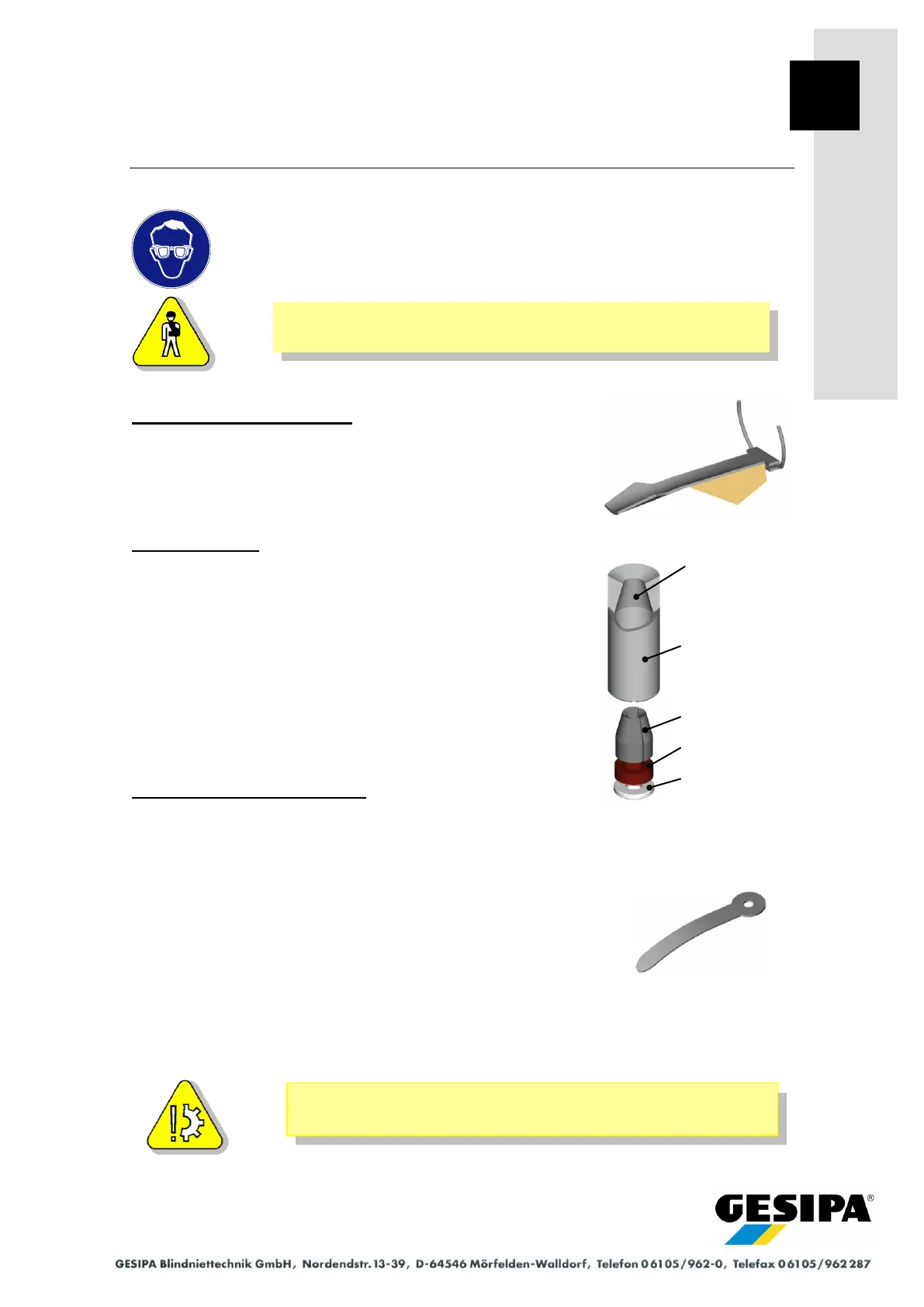

Blind Riveting Gun Repair Instructions
Observe safety and environmental information!
Wear safety goggles!
Switch off master switch and disconnect compressed air supply
from device!
To replace lock spring 2-33
- Unscrew spreader nosepiece 2-80.
- Remove closing sleeve 2-22.
- Pull lock spring 2-33 out of latch.
- Install in reverse order of removal.
To replace jaws
- Unscrew spreader nosepiece 2-80.
- Remove closing sleeve 2-22.
- Unscrew jaw mechanism.
- Remove set of jaws complete with washer, stop ring and
opening springs.
- Coat sliding surface of jaw housing with grease before re-
installing the complete set of jaws.
- Fit jaw housing over the set of jaws.
- Insert stop ring and washer.
- Install in reverse order of removal.
To replace leaf spring 2-6093
Installation aid: Assembly pin E9-20 (accessory)
- Disconnect compressed air supply from device.
- Switch off master switch.
- Unscrew spreader nosepiece 2-80.
- Remove closing sleeve 2-22.
- Unscrew cover 2-2 and threaded plug 2-6003.
- Use assembly pin E9-20 (pin facing downward) to push
back lock activator 2-6009 up to the stop face.
- Remove feather key 2-6023 with pliers.
- Remove leaf spring and replace. After reinstalling feather
key 2-6023 push lock activator 2-6009 forward by pressing
with the thumb such that the feather key fits in the keyway.
- Reinstall threaded plug 2-6003 and cover 2-2.
Do not reconnect the compressed air supply before threaded plug
2-6003 and cover 2-2 have been reinstalled!
