Gesipa 8000 - To replace jaw tube 2-6032; To replace stop piston 2-6020

21 Blind Riveting Gun Repair Instrcutions
Caution!
Blind Riveting Gun Repair Instructions
To replace jaw tube 2-6032
- Unscrew spreader nosepiece 2-80.
- Remove closing sleeve 2-22.
- Unscrew jaw mechanism.
- Pull jaw tube 2-6032 out of latch.

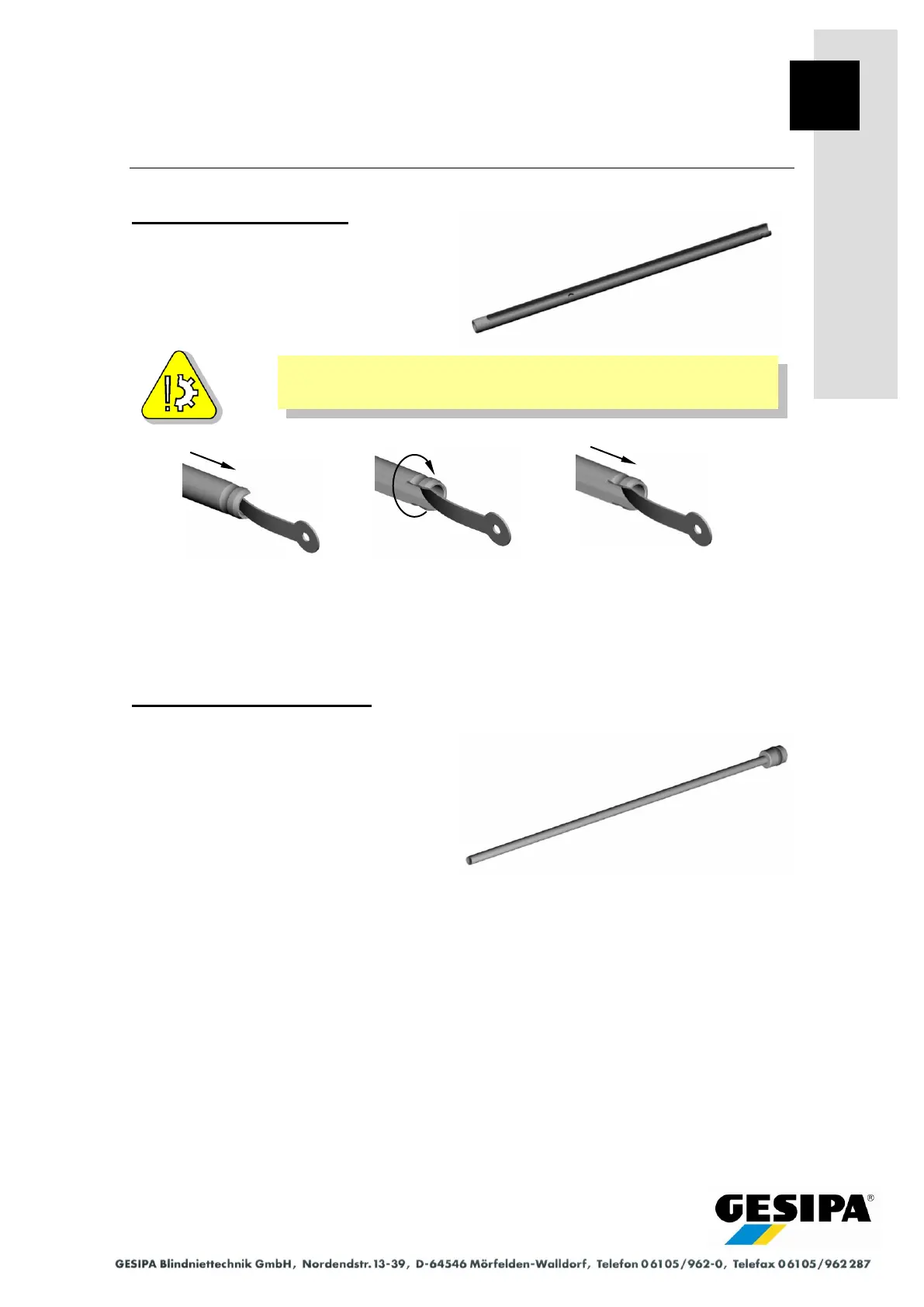

To avoid damaging the leaf spring, install the jaw tube as shown in
Item 1 - Item 3.
- Initially insert jaw tube 2-6032 with the slotted side facing the leaf spring 2-6093 (Item
1).
- Holding leaf spring 2-6093 carefully turn jaw tube 2-60032 by 180° (Item 2) while moving back
and forth by 1-2 mm and lock in the end position (Item 3).
To replace stop piston 2-6020
Installation aid: Assembly pin E9-20 (accessory)
- Switch off master switch and disconnect
device from compressed air supply!
- Unscrew spreader nosepiece 2-80.
- Remove closing sleeve 2-22.
- Use assembly pin E9-20 (pin facing up-
ward) to push back lock activator 2-6009
until the pin engages.
- Unscrew cover 2-2 and threaded plug 2-6003.
- Remove circlip 2-6043. Take care that the inner parts under spring force do not spring out.
- Remove reset piston 2-6013, stop piston 2-6020, compression spring 2-35 and cylinder sleeve
2-6012.
- Install new stop piston 2-6020 with O-ring 2-55.
When installing, make sure that
- O-ring 2-55 on stop piston 2-6020 is greased.
- the parts are fitted in the correct order.
- cylinder sleeve 2-6012 with control holes is installed correctly.
- the threaded plug 2-6003 protrudes by approx. 2 mm at the end of the housing.
21
Item 2
Item 1
Item 3
- 91 -
