GRivCheck
In the "GRivCheck" menu the connection between the GAV dialogue unit and PC is prepared
with the GRivCheck operating software via the RS232 interface and communication shown after
the connection has been set up. A connection can be established between the PC and GAV di-
rectly or via the PLC interface. Detailed information can be found in the description of the
GRivCheck operating software.

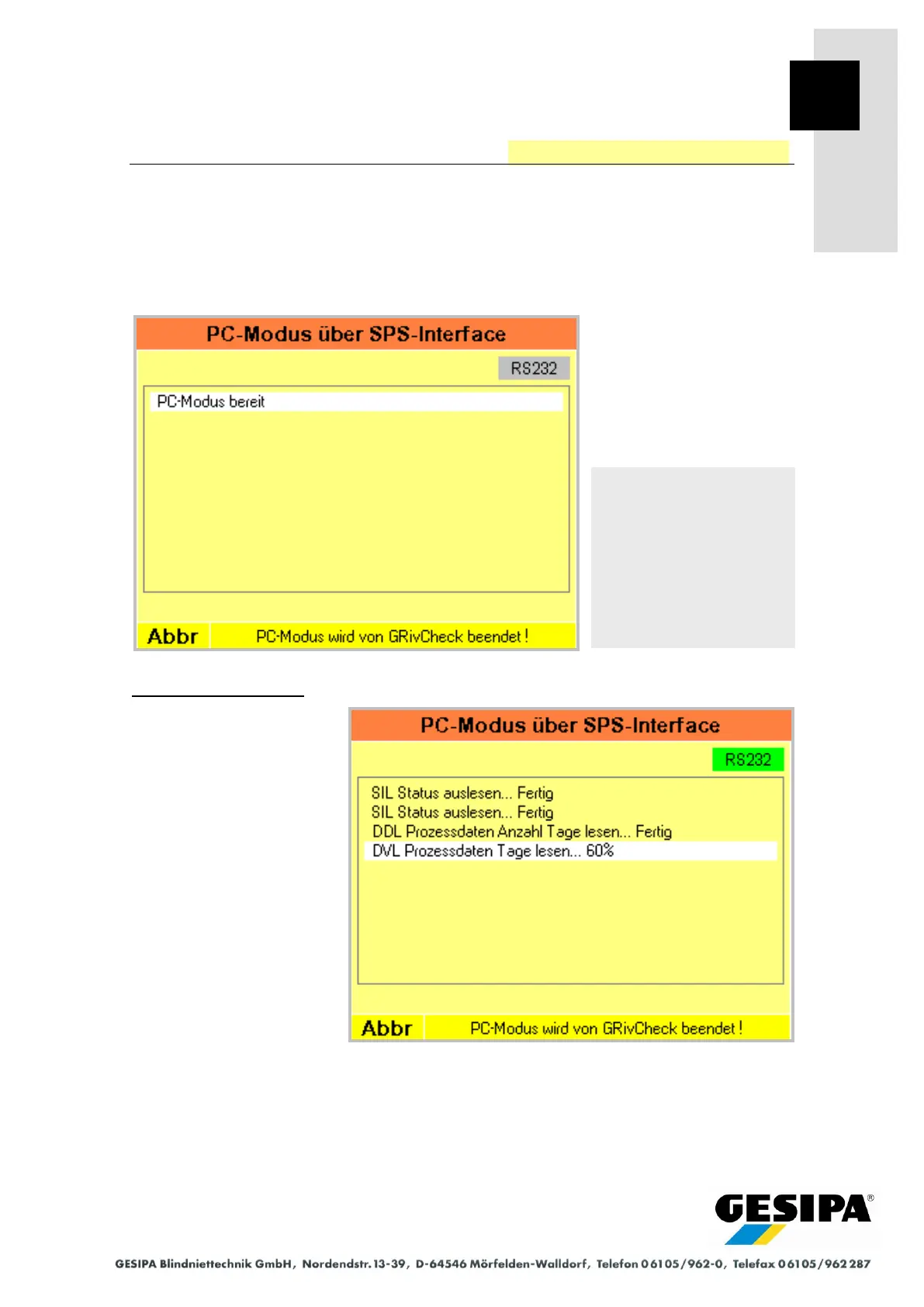

Example (see screens):
The "PC mode ready" mes-
sage shows that the GAV is
ready to set up the connec-
tion.
After the connection has
been set up, the GAV will on-
ly respond to commands from
GRivCheck, the current sta-
tus is shown directly.
In the illustrated example,
process data are transferred
from GAV to GRivCheck, the
command, a short description
and the status are displayed.
Navigation:
AUTO
►MAN
► Menu
► GRivCheck
