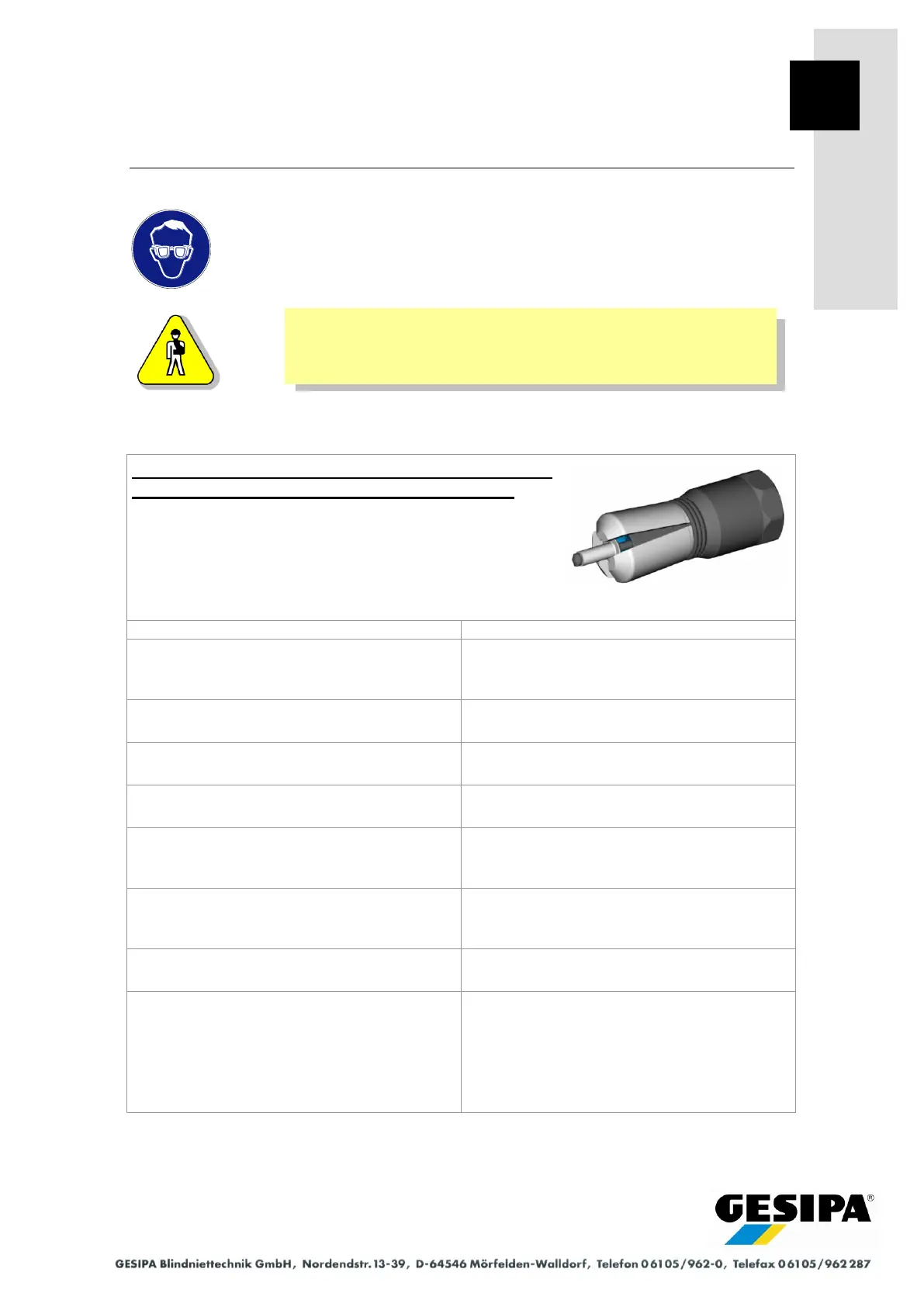

20 Fault - Blind Riveting Gun
Fault - Blind Riveting Gun
Observe safety and environmental information!
Wear safety goggles!
Always disconnect the compressed air supply from the device
and turn off the master switch before unscrewing the spreader
nosepiece or with the nosepiece spread.
Blind rivet is not conveyed out of the spreader
nosepiece or spreader nosepiece will not close
- Press OFF button
- Unscrew spreader nosepiece 2-80
- Remove blind rivet
- Screw on and lock spreader nosepiece 2-80
- Press ON button
- Execute "Cycle" function in "MAN" menu.
Blind riveting gun was held too close to the
workpiece while loading.
Make sure there is sufficient spacing between
the spreader nosepiece and workpiece while
loading.
Insufficient mandrel protrusion.
Blind rivet must correspond to the specifica-
tion.
Air pressure too low or pressure drop too high
during riveting process.
A compressed air supply to the blind riveting
system of at least 6 bar must be secured.
Broken-off mandrel jammed in jaw mechanism
(jaws jammed).
Maintain jaws, see Section 10.1 "Maintenance
Information" - "Lubricating Jaws"
Lock spring 2-8033 bent or broken
Replace lock spring 2-8033, see Section 21
"Riveting Gun Repair Instructions" - "Replacing
Lock Spring".
Insufficient grip of closing sleeve 2-8022 on
closing tube 2-8011 (spreader nosepiece is not
released).
Replace closing sleeve 2-8022. (The riveting
gun can be lifted with the closing sleeve 2-
8022 when the grip is correct.)
Holding force of O-rings 2-50 on spreader
nosepiece 2-80 too great.
Remove one O-ring 2-50 from spreader nose-
piece 2-80.
Snap ring 2-40 was deformed by blind riveting
without closing sleeve 2-22 (release stroke for
spreader nosepiece is not fully executed).
- Unscrew spreader nosepiece 2-80.
- Remove closing sleeve 2-22.
- Push back stop ring 2-6021.
- Replace snap ring 2-40.
- Reassemble in reverse order.
