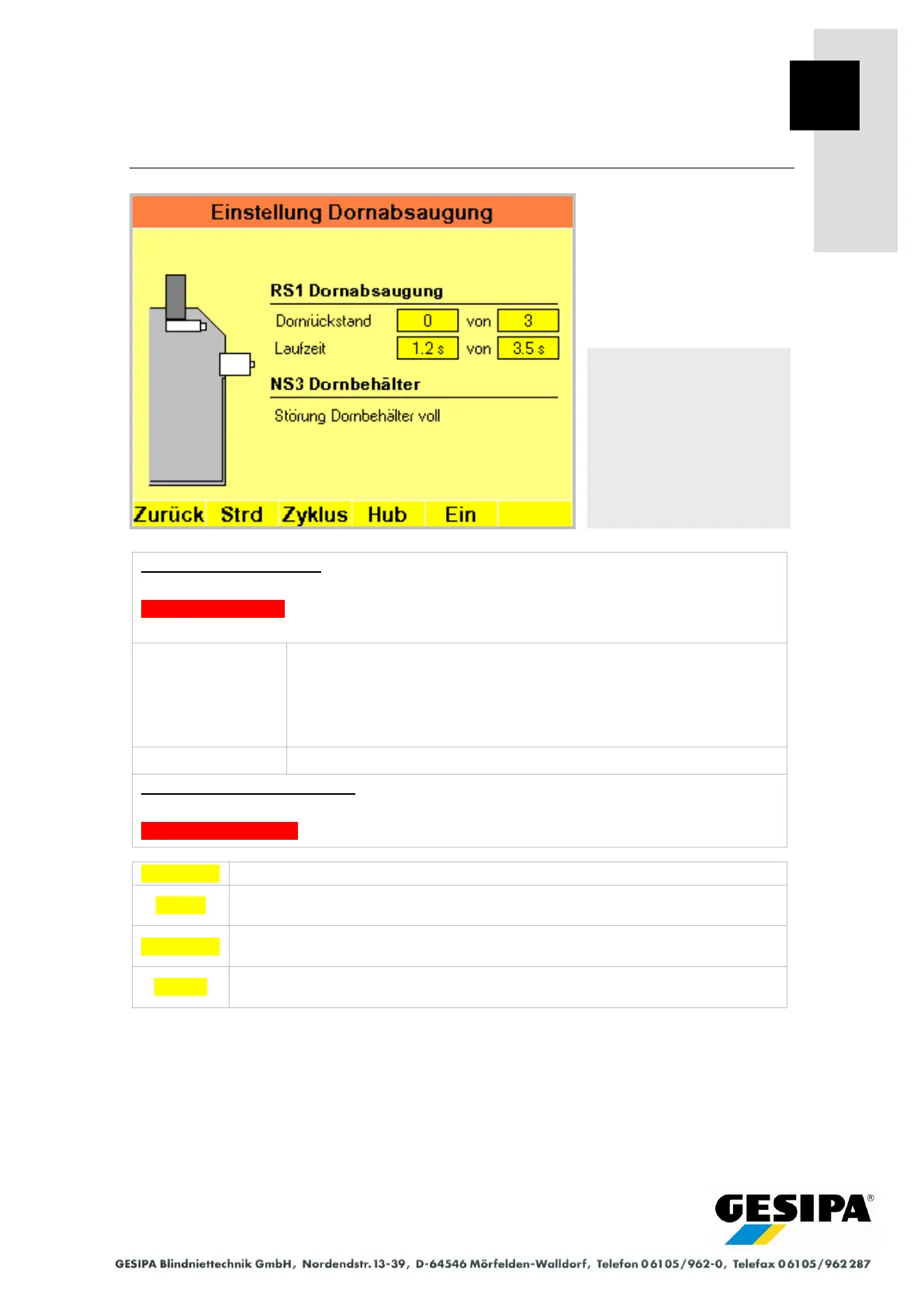

9.7 Mandrel Evacuation
GAV Settings
9.7 Mandrel Evacuation
RS1 mandrel evacuation
Registers spent mandrels.
Mandrel evacuation fault on exceeding the set value for "mandrel lag" and reaching the set
value for "runtime".
Mandrel lag
On exceeding the set value, the processing cycle is stopped in stroke
position until a spent mandrel is registered.
Settings greater than 0 facilitate faster operation as not every pro-
cessing cycle is interrupted until a spent mandrel reaches the spent
mandrel container.
Runtime
Switches off mandrel evacuation on reaching the set value.
NS3 spent mandrel container
Monitors the level in the mandrel container.
Mandrel container full fault when the mandrel container is full.
Default
Resets all settings to default.
Cycle
Executes one processing cycle
(see Section 8.7 "Manual Operation" "Cycle" function).
Stroke
Moves riveting gun to stroke position
(see Section 8.7 "Manual Operation" "Stroke Position" function).
ON
Activates mandrel evacuation
(see Section 8.7 "Manual Operation" "Mandrel Evacuation" function).
9
- 46 -
Navigation:
AUTO
►MAN
► Menu
► GAV settings
► Mandrel evacuation
Mandrel evacuation
settings menu
