11.9.2 Displacement Calibration
Not in GAV-8000 eco
Process Monitoring
11.9.2 Displacement Calibration

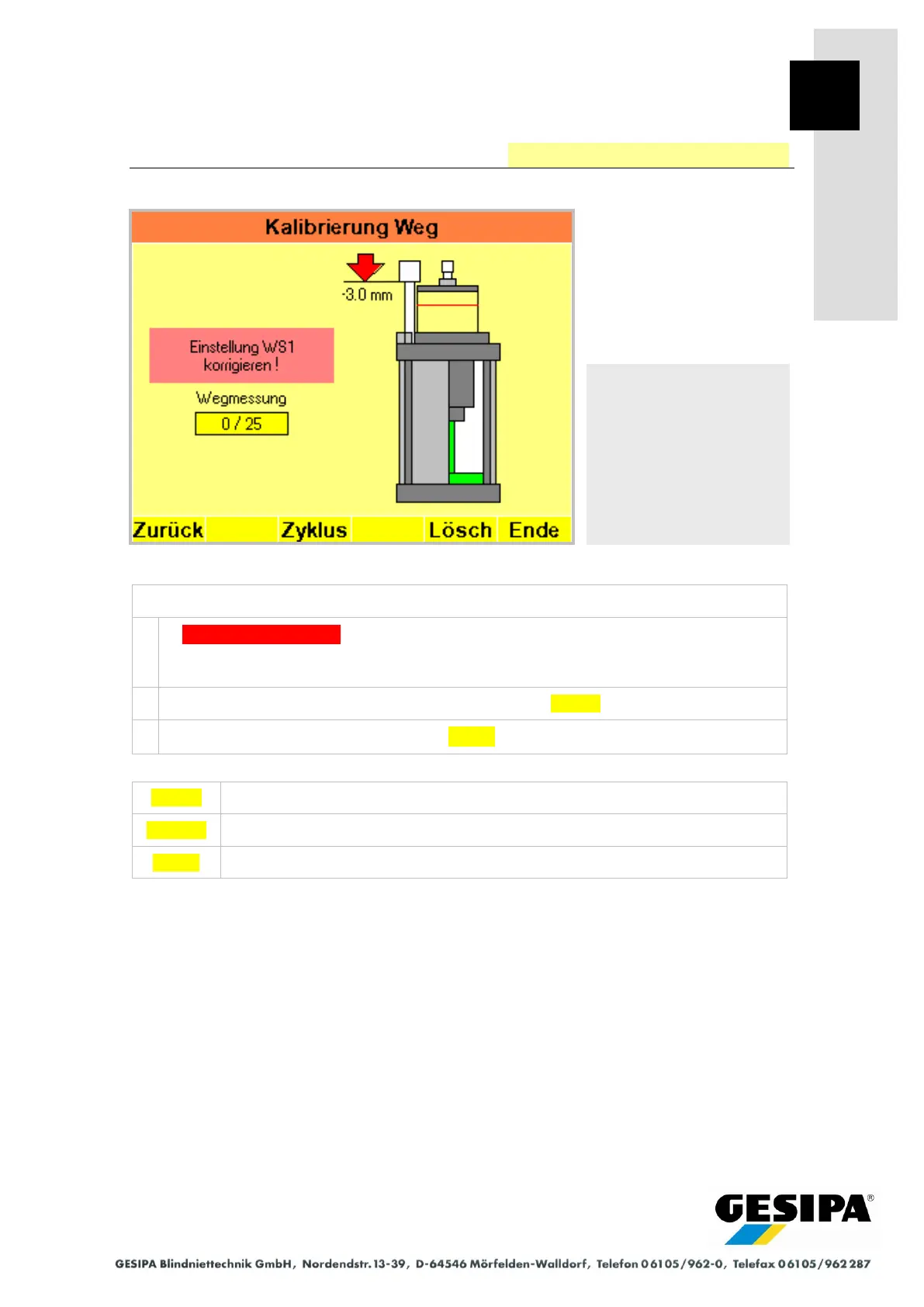

To perform calibration procedure:
-
If Correct WS1 Setting ! is displayed, correct the basic setting of the WS1 displace-
ment sensor by the displayed amount in the displayed direction (refer to Section 9.3
Large Pressure Booster)
-
Execute the required number of no-load cycles with the Cycle button
-
Conclude the calibration procedure with End on reaching the specified piece number
Cycle
Executes one processing cycle
Delete
Deletes the data recorded during the last processing cycle
End
Ends the calibration procedure on reaching the specified piece number
11
- 78 -
Navigation:
AUTO
►MAN
► Menu
► Process monitoring
► Cal
► Displacement
Displacement calibration
menu
