9.2 Pressure Sensors
Not in GAV-8000 eco
GAV Settings
9.2 Pressure Sensors
DS3 Pressure Sensor Calibration and Basic Setting
The DS3 pressure sensor is adapted at the connection for the
hydraulic line of the large pressure booster.
The calibration data "Signal Type" and "Measuring Range" are
set in the "DS3 Pressure Sensor Calibration" menu during de-
vice installation and must not be changed.
Basic setting of the pressure sensor is not required.
It is necessary to bleed the hydraulic system after replacing the
pressure sensor (see Section 24 "Filling Hydraulic Systems").
Calibration DS3
Signal type
(Standard 0-10 V)
Signal type of pressure sensor.
Measuring range
(Standard 0-400 bar)
Measuring range of pressure sensor.
Default
Resets all settings to default.
Cycle
Executes one processing cycle
(see Section 8.7 "Manual Operation" "Cycle" function).
Stroke
Moves riveting gun to stroke position
(see Section 8.7 "Manual Operation" "Stroke Position" function).
9
Navigation:
AUTO
►MAN
► Menu
► GAV settings
► Pressure sensors
► DS3

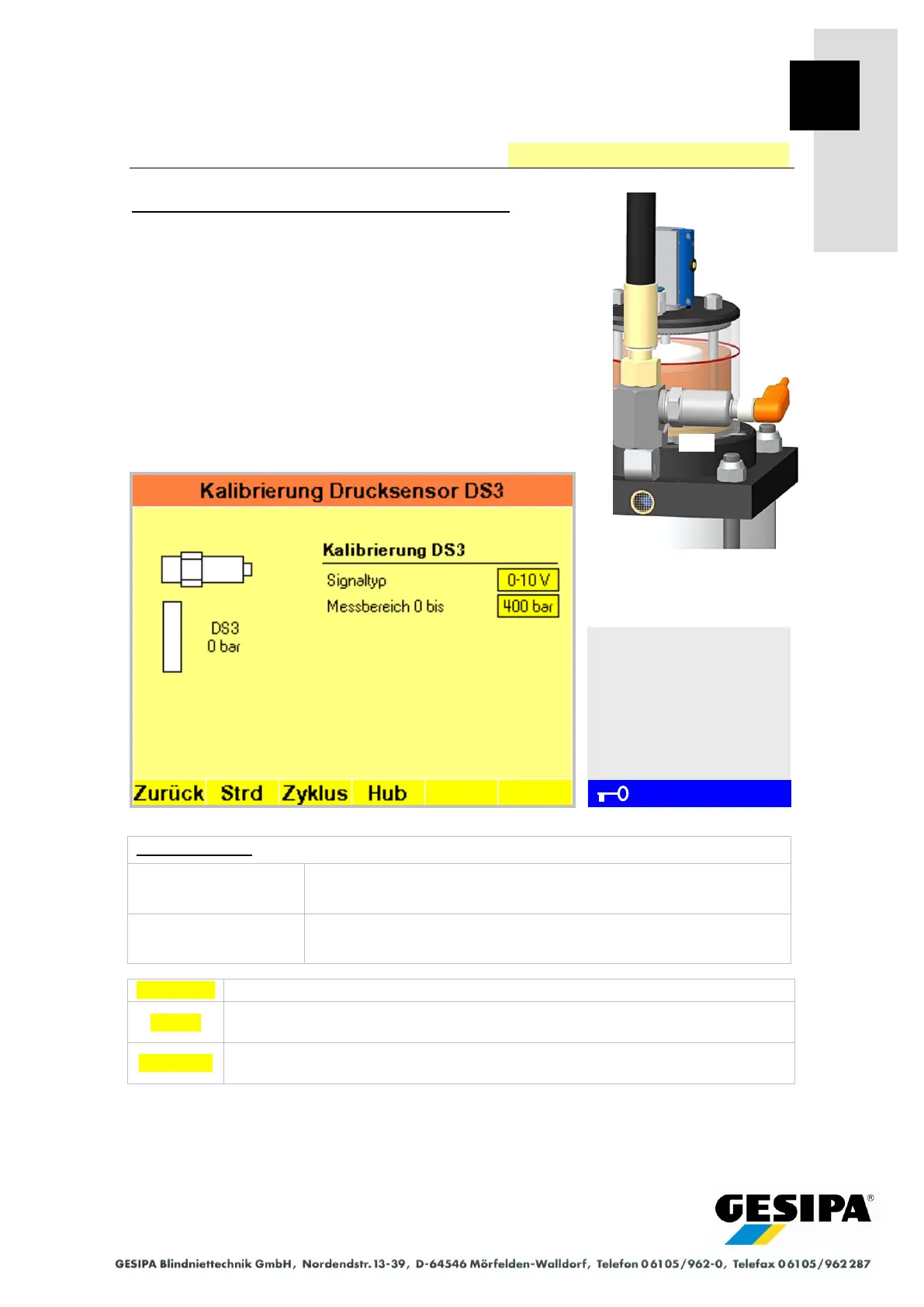

DS3 Pressure sensor
calibration menu
GESIPA code
- 35 -
DS3
