9.2 Pressure Sensors
GAV Settings
9.2 Pressure Sensors

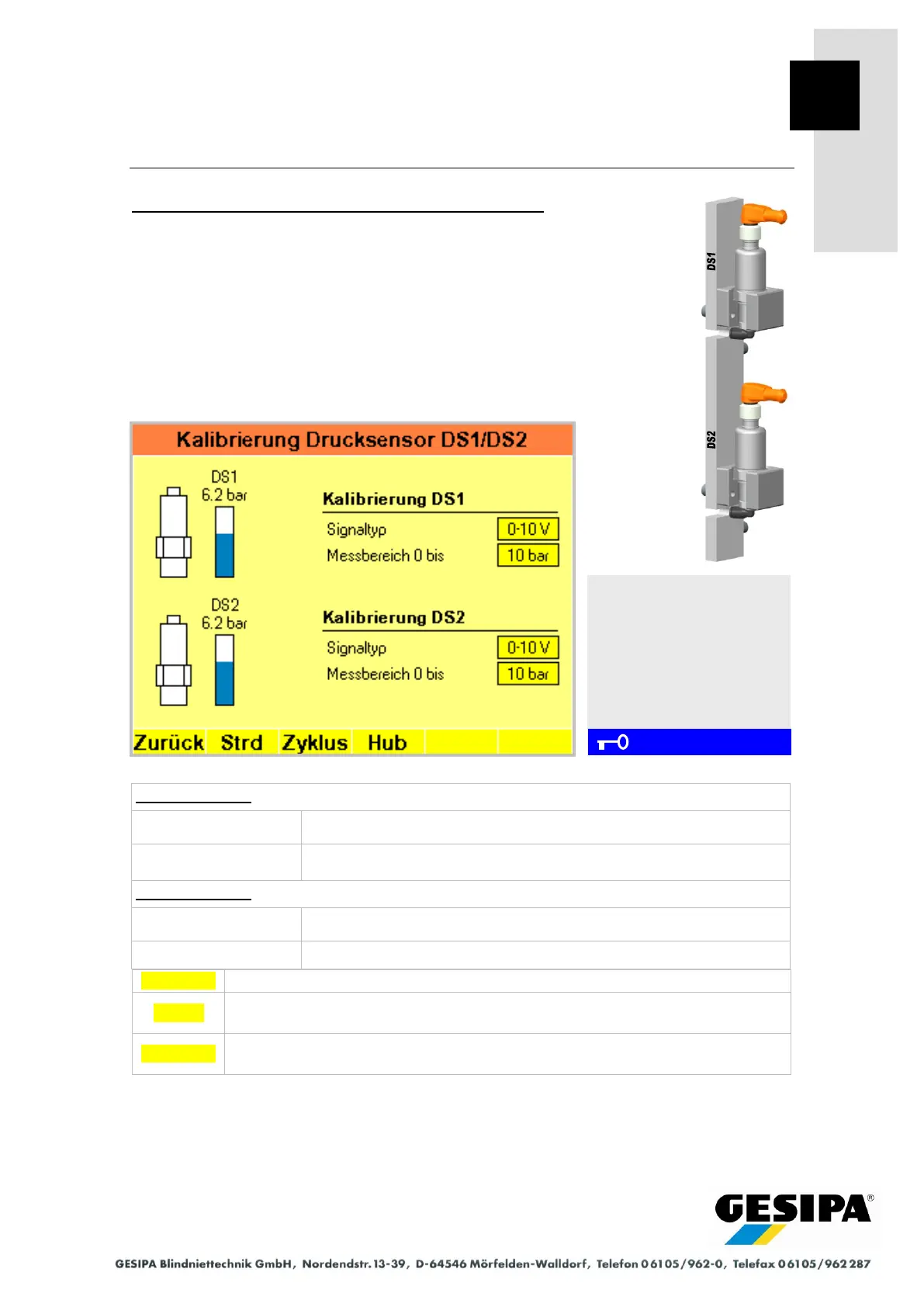

DS1/DS2 Pressure Sensor Calibration and Basic Setting
The calibration data "Signal Type" and "Measuring Range" are
set in the "DS1/DS2 Pressure Sensor Calibration" menu during
device installation and must not be changed.
Basic setting of the pressure sensors is not required.
Default
Resets all settings to default.
Cycle
Executes one processing cycle
(see Section 8.7 "Manual Operation" "Cycle" function).
Stroke
Moves riveting gun to stroke position
(see Section 8.7 "Manual Operation" "Stroke Position" function).
Calibration DS1
Signal type
Signal type of pressure sensor.
Measuring range
Measuring range of pressure sensor.
Calibration DS2
Signal type
Signal type of pressure sensor.
Measuring range
Measuring range of pressure sensor.
9
- 34 -
Navigation:
AUTO
►MAN
► Menu
► GAV settings
► Pressure sensors
► Cal
DS1/DS2
Pressure sensor
calibration
menu
