9.14-UA Proximity Switch, Overhead Gun with Spring
-Loaded Trigger System
GAV Settings

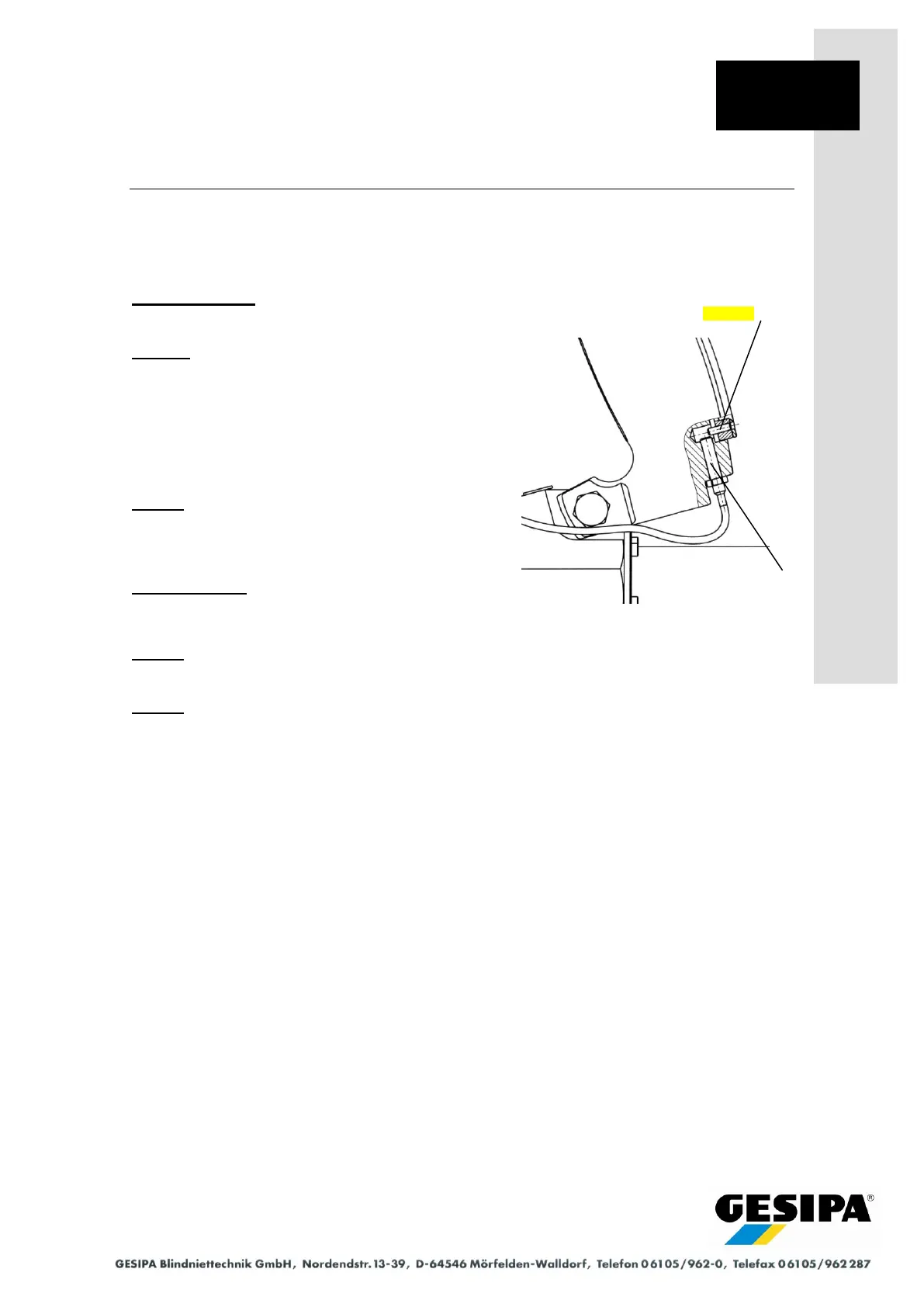

9.14-UA Proximity Switch, Overhead Gun with Spring-Loaded Trigger Sys-
tem
Proximity switch
(spring-loaded trigger system)
Setting:
With the spring-loaded trigger system
actuated, slightly turn the proximity switch towards
the setscrew and then release by a 1/4 turn.
Secure proximity switch with locknut.
Change the setting of the setscrew only if
necessary (secured with Loctite 222).
Check:
- The contact distance should be approx.
1 mm.
Possible faults:
- No triggering despite contact.
Cause: Contact distance too great.
- Triggering possible without contact.
Cause: Contact distance too small.
9-UA
- 52-UA -
Proximity switch
Setscrew
