Major Hardware Components Card Cage Assemblies
Page 4-2 MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013
T20229-G1 Card Cage Assembly Parts List
Following table lists the T20229-G1 Card Cage Assembly parts:
Item Description Part Number
1 Power Supply PCB T20138-G1
2 Transmitter PCB Assembly Q13579-01
3 DCB Q13563-01
4 UHF Receiver Assembly on DCB Q13564-01
5 Gateway Board T20128-G1
T20606-G2 Card Cage Assembly
T20606-G2 Card Cage is the updated version of the T20229-G1 Card Cage. It features a
multi-port DCB, LF Transmitter, and a high-gain UHF receiver. It also has a Card Cage
Harness, which reduces the number of field connections that must be made (compared to
T20229). This Card Cage comes ready to mount in an Encore unit, and also easily modified to
work in Eclipse, The Advantage Series, and MPD-3 units.

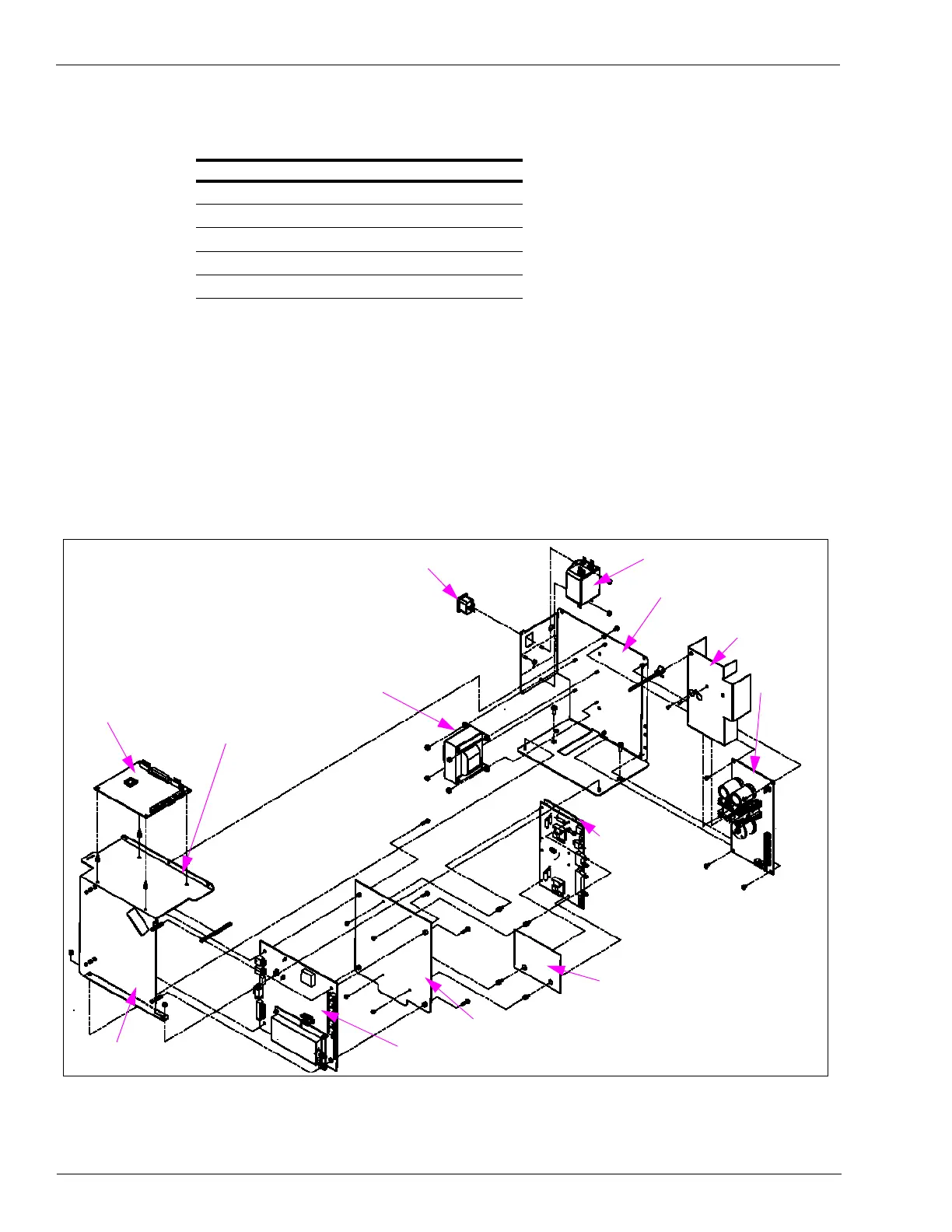

Figure 4-2: T20606-G2 Card Cage Assembly
TRIND Gateway PCB
24 VAC Transformer
Recessed Power Receptacle
10 A EMI Filter
TRIND PCB Shield Bracket
Low Frequency
Transmitter Module
PCB Insulator Board
Radio PCB Shield
Multi-port DCB
TRIND PCB Bracket
Circuit Board Support
Regulator
PCB Shield
Regulator
PCB
To Next Page
