Full System TRIND RS-485 Communication Cable (R20525-G1)
The Communication Cable is a 4-pin and 5-pin connector cable that is connected between the
Q13563 DCB and T20128 Gateway Board.

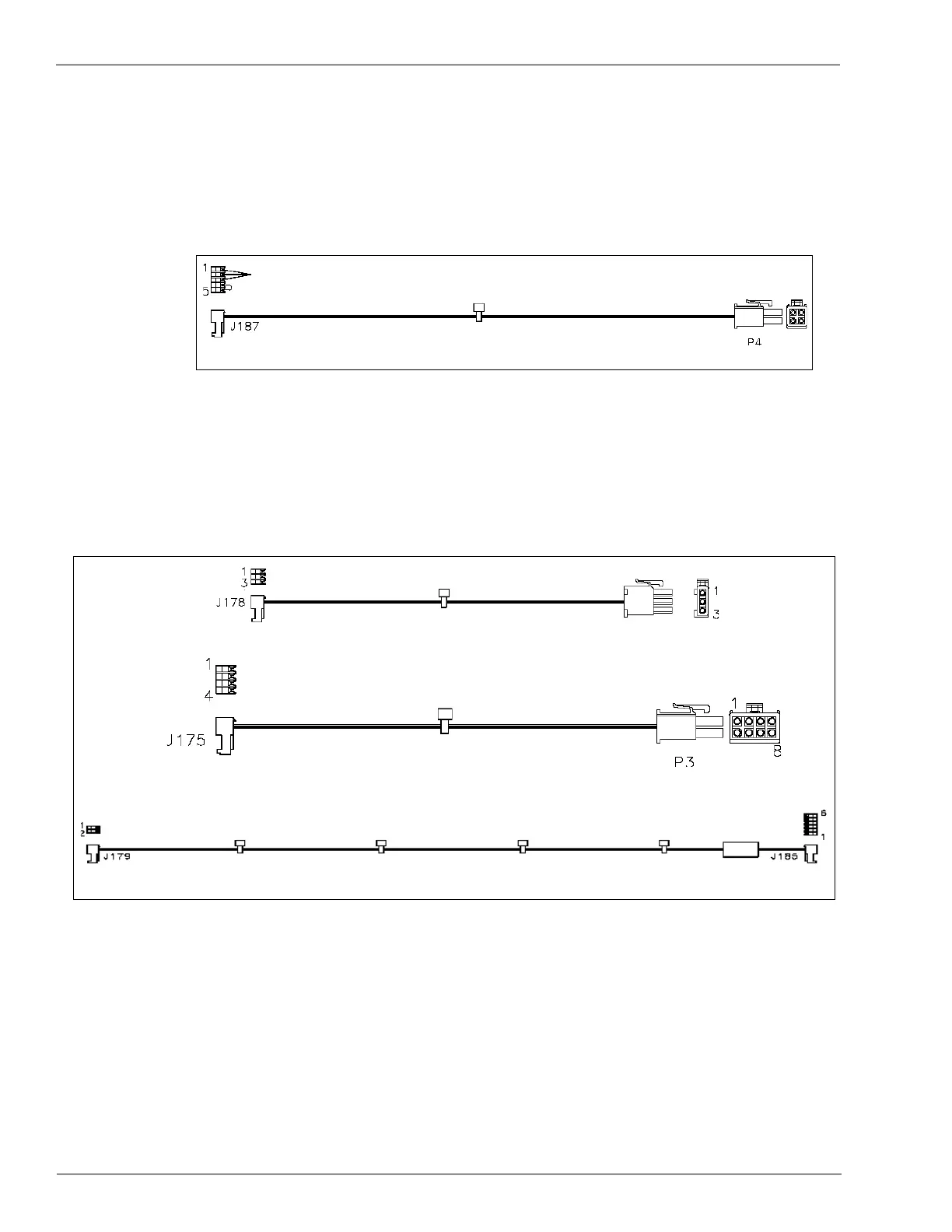

Figure 4-15: RS-485 Communication Cable
To Gateway Board
To Data Control Board
Full System TRIND Power Supply Cables (R20763-GX)
The Power Supply Cables connect the LF Transmitter (-G1), the DCB (-G2), and the
Gateway (-G3) Boards to the T20314 Power Supply.
Figure 4-16: Power Supply Cables
R20763-G1
R20763-G2
R20763-G3
