MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013 Page 4-29
TRIND Option Doors with Antennas Major Hardware Components
Encore CIM Door Option Assembly
This section provides the parts for the Encore CIM Door Option Assembly.

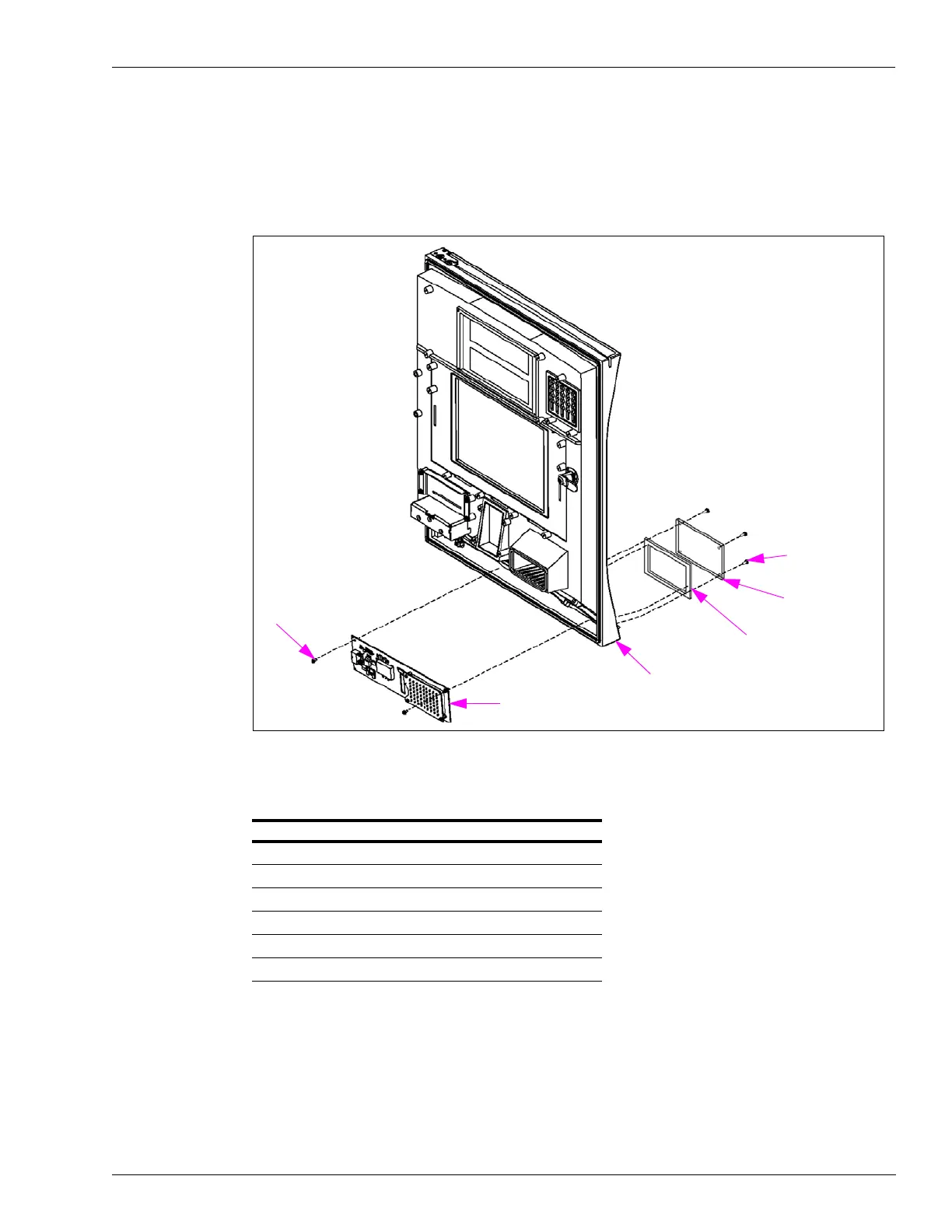

Figure 4-30: Encore CIM Door Option Assembly
Hex Head 6-20
Screw
Phillips Screw
TRIND Display
Window Lens
TRIND Panel Gasket
CIM Door with CRIND Assembly
TRIND Light and Indicator Assembly
Encore CIM Door Option Assembly Parts List
Following table lists the Encore CIM Door Option Assembly parts:
Item Part Description Part Number
1 Screw, Hex Head 6-20 Q11677-24
2 TRIND Light and Indicator Assembly M01218A00X*
3 CIM Door with CRIND Assembly M01208A001
4 TRIND Panel Gasket M01160B001
5 TRIND Display Window Lens M01234B001
6 Screw, Phillips
®
M00419B117
*Order entry item available as red (-A001) or orange (-A002).
