MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013 Page 8-5
Status Indicators Testing and Troubleshooting
T20601/M01560 Light/Micro Reader Boards
The Light/Micro Reader Boards (see Figure 8-5) will exhibit the following characteristic when
operating properly:
Note: The M01560 is a subassembly of Light and Inductor PCB
Assembly (M01218).
• SYNC LED blinking (CR1).
• OKT LED on solid (CR2) until a tag is presented, then i
t will flicker while a key tag is in
the field.
• STAT LED (CR3) blinking in unison with
the SYNC LED.
• If these LEDs are solid, then the TRIND has not
been told to look for tags, and
consequently will never light the LEDs on the Light/Micro Reader Board.

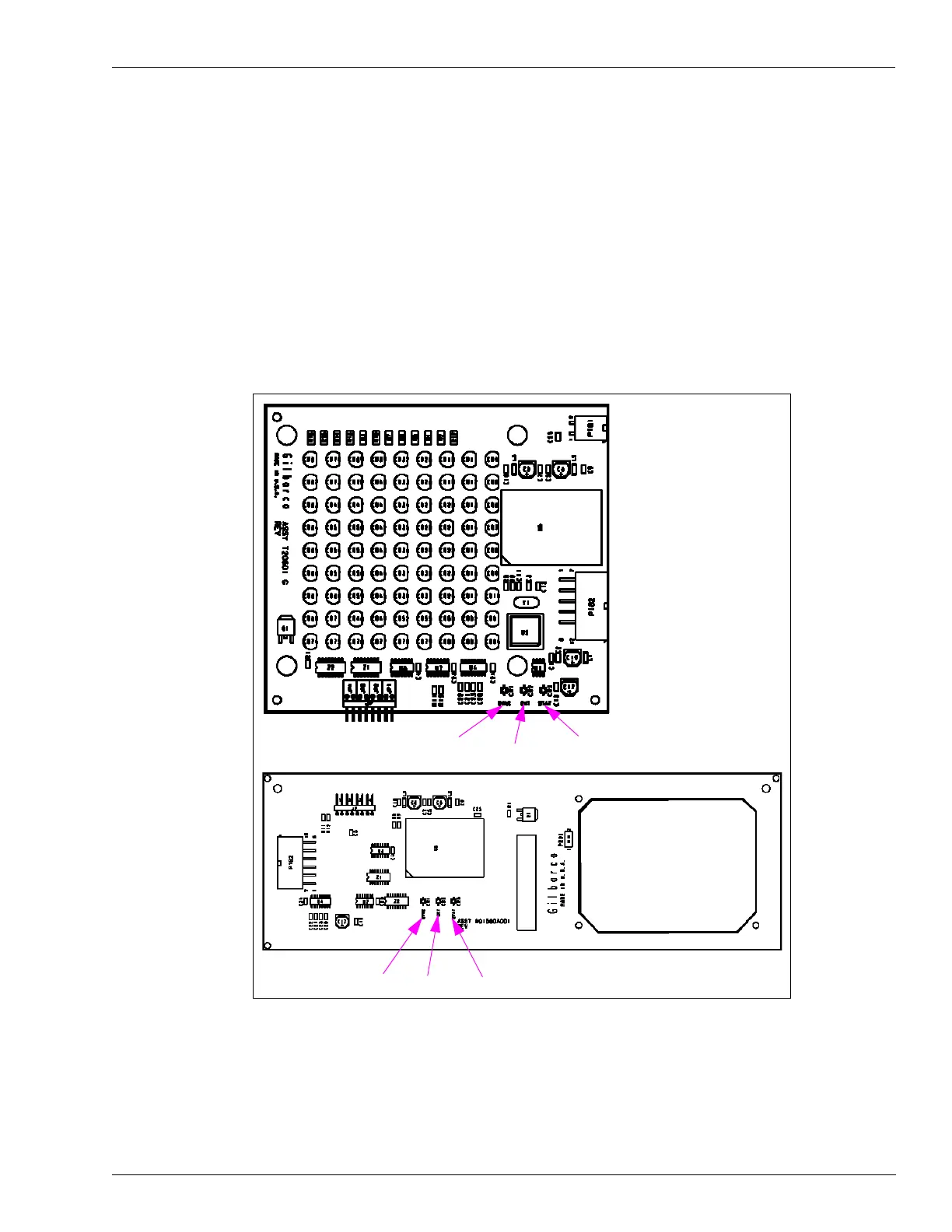

Figure 8-5: RFID Light/Micro Reader Boards
SYNC
OKT
STAT
SYNC
OKT
STAT
STAT
T20601
M01560
