MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013 Page 4-25
TRIND Option Doors with Antennas Major Hardware Components
Advantage Wide Frame Option Door Assemblies
This section provides parts data for The Advantage Series Wide Frame Option Doors
Assemblies.

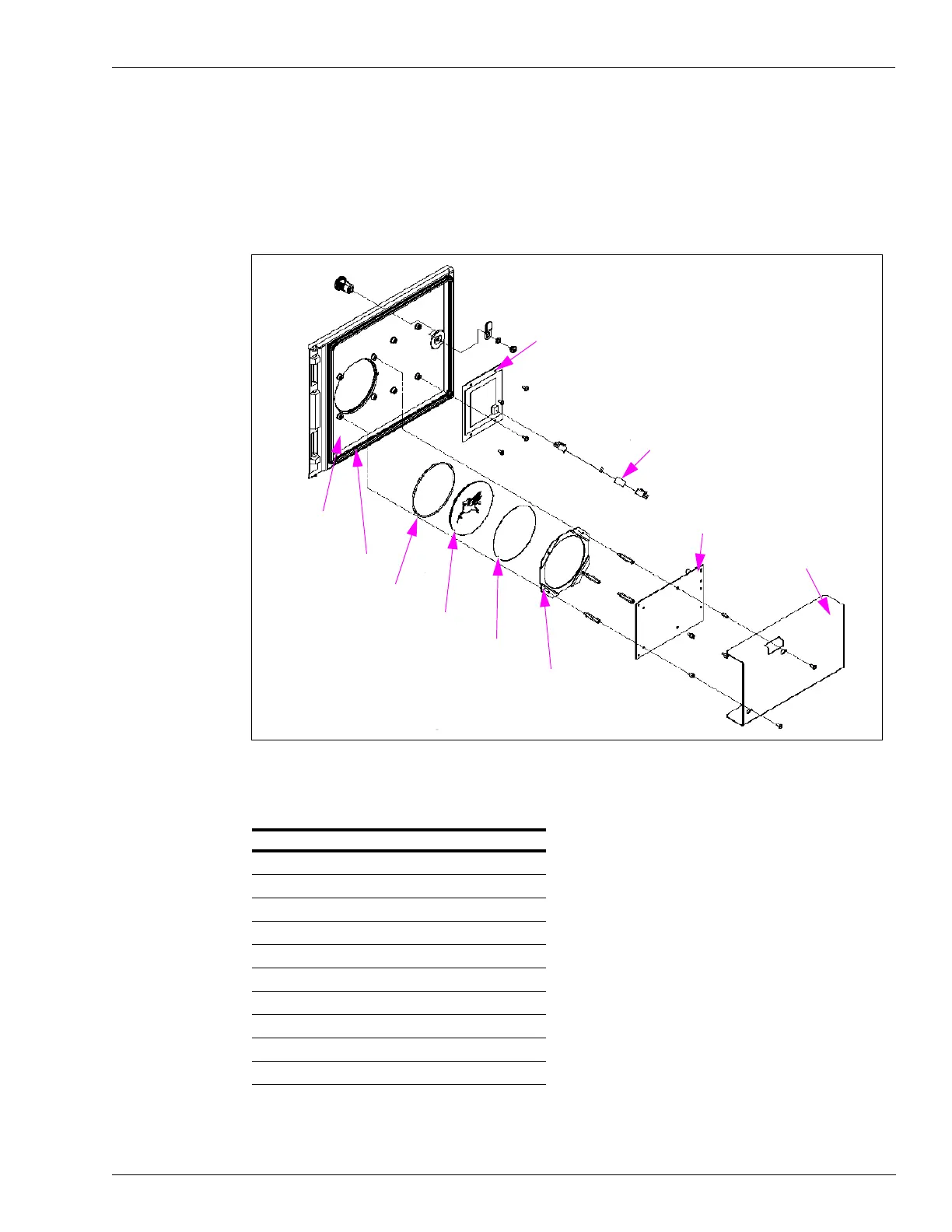

Figure 4-26: Advantage Wide Frame (48 inches) Option Door Assembly
Lens Retainer Bracket
Logo Lens
O-ring
Door Gasket
Right Option Door
TI/RFID Door Antenna
Antenna Interface Cable
Light Micro Reader PCB
Antenna Shield
Wayne
®
Diffuser
Advantage Wide Frame Option Door Assembly
Following table lists The Advantage Series Wide Frame Option Door Assembly parts:
Item Part Description Part Number
1 TI/RFID Door Antenna T20143-G1
2 Light Micro Reader PCB* T20446-G1
3 Antenna Shield T20210-01
4 Lens Retainer Bracket Q13575-04
5 Diffuser, Wayne Q13575-03
6 Logo Lens Q13575-01
7 O-ring Q13575-02
8 Door Gasket R20424-01
9 Option Door, Right T17499-06
10 Antenna Interface Cable R20522-G1
*Replaced T20182-G1 and T20295-G1.
