Major Hardware Components TRIND Option Doors with Antennas
Page 4-26 MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013

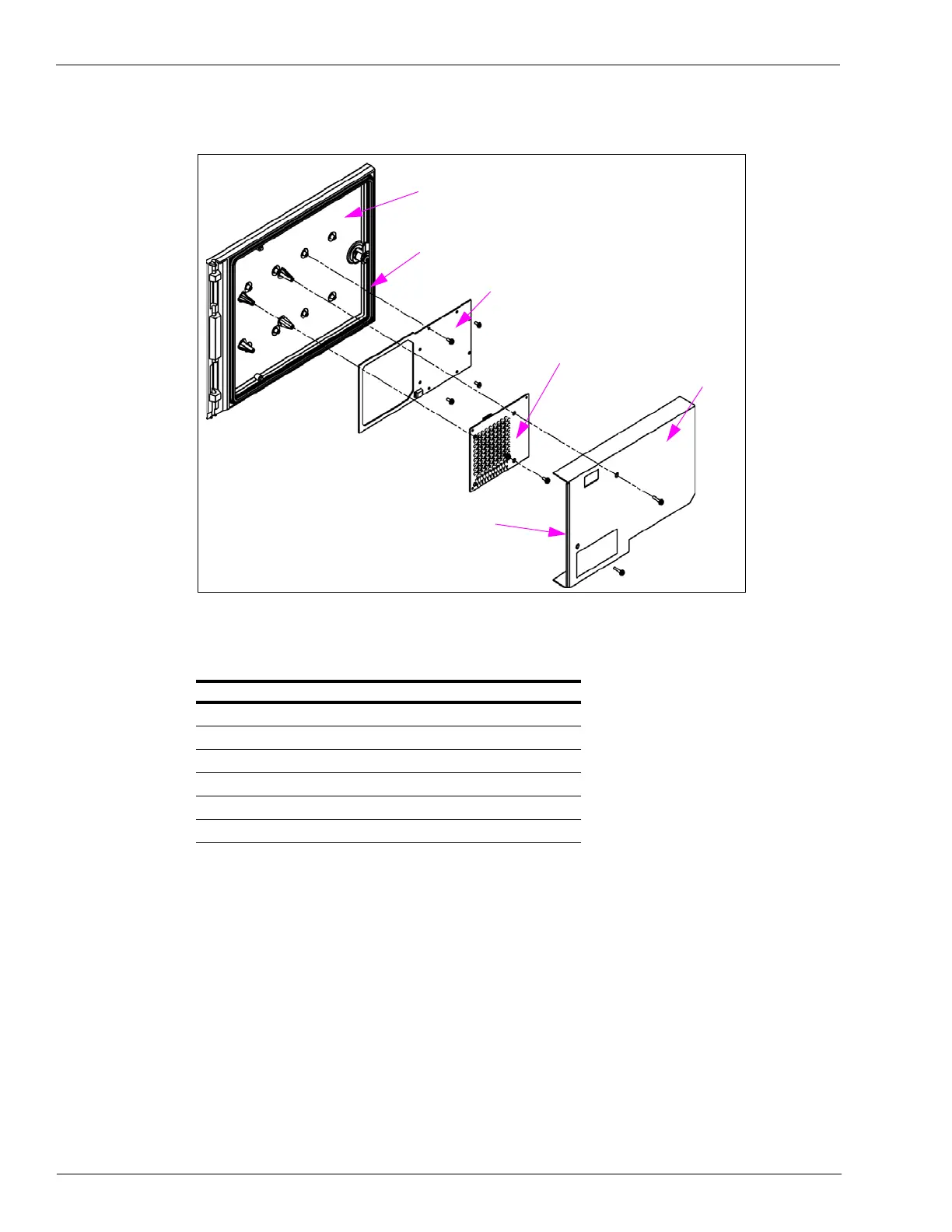

Figure 4-27: Advantage Wide Frame (48 inches) Option Door Assembly
Wide Frame Shield
Right Option Door
Door Gasket
TRIND Antenna PCB
RFID Light/Micro Reader PCA
Solid Strip Grommet
Advantage Wide Frame Option Door Assembly Parts List
Following table lists the Advantage Wide Frame Option Door Assembly parts:
Item Part Description Part Number
1 Wide Frame Shield T20570-G1
2 Solid Strip Grommet Q10315-06
3 RFID Light/Micro Reader PCA (see note 1) M01580A00X
4 TRIND Antenna PCB T20524-G1
5 Door Gasket R20424-01
6 Right Option Door (see note 2) T20415-0X
Notes:
1. Order entry item available as -A001 and -A002.
2. Order entry item available as -01 through -08.
