Major Hardware Components Card Cage Assemblies
Page 4-4 MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013
T20606-G3 Card Cage Assembly Parts List
Following table lists the T20606-G3 Card Cage Assembly parts:
Item Description Part Number
1 Regulator PCB T20314-G1
2 Regulator PCB Shield T20198-01
3 24 VAC Transformer R20719-G1
4 Enhanced Gateway PCB T20678-G1
5 10 A EMI Filter Q10895-01
T20606-G5 Card Cage Assembly
T20606-G5 Card Cage is a variation of the T20606-G2 Card Cage required for many
international “full system” TRIND applications (Europe and southeast Asia). It features a
European Telecommunications Standards Institute (ETSI) DCB, LF Transmitter, and a high-
gain UHF receiver. It also has a Card Cage Harness, which reduces the number of field
connections that must be made (compared to the original T20229). This Card Cage comes
ready to mount in an Encore unit, and is easily modified to also work in Eclipse, The
Advantage Series, and MPD-3 units.

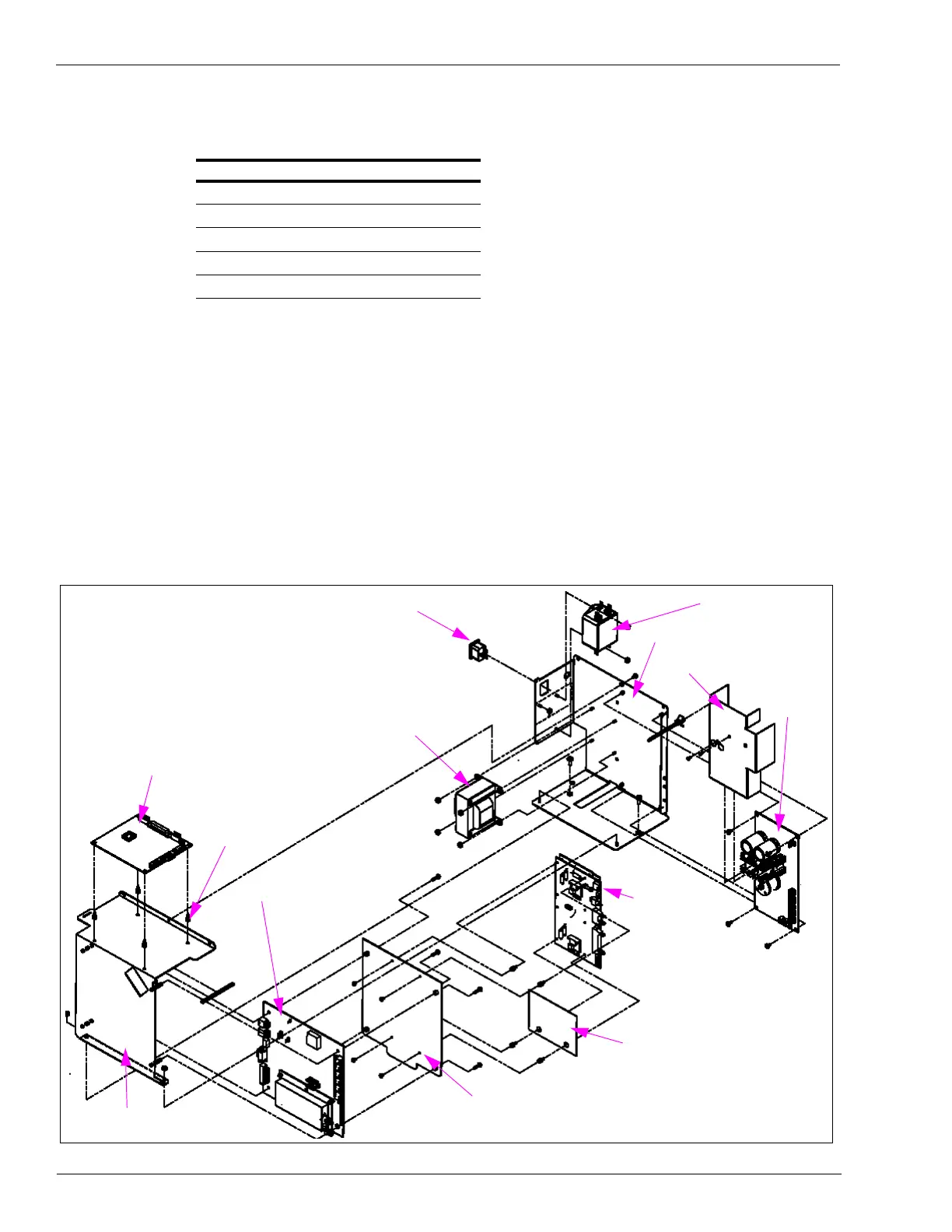

Figure 4-4: T20606-G5 Card Cage Assembly
TRIND Gateway PCB
24 VAC Transformer
Recessed Power Receptacle
10 A EMI Filter
TRIND PCB Shield Bracket
Low Frequency
Transmitter
Module
PCB Insulator Board
Radio PCB Shield
ETSI DCB
TRIND PCB Bracket
Circuit Board
Support
Regulator PCB Shield
Regulator
PCB
To Next Page
