System Accessories Dummy Load Transmitter (R20526)
Page 5-4 MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013
Dummy Load Transmitter (R20526)
Dummy Load Transmitter must be installed on JB of Transmitter PCB.

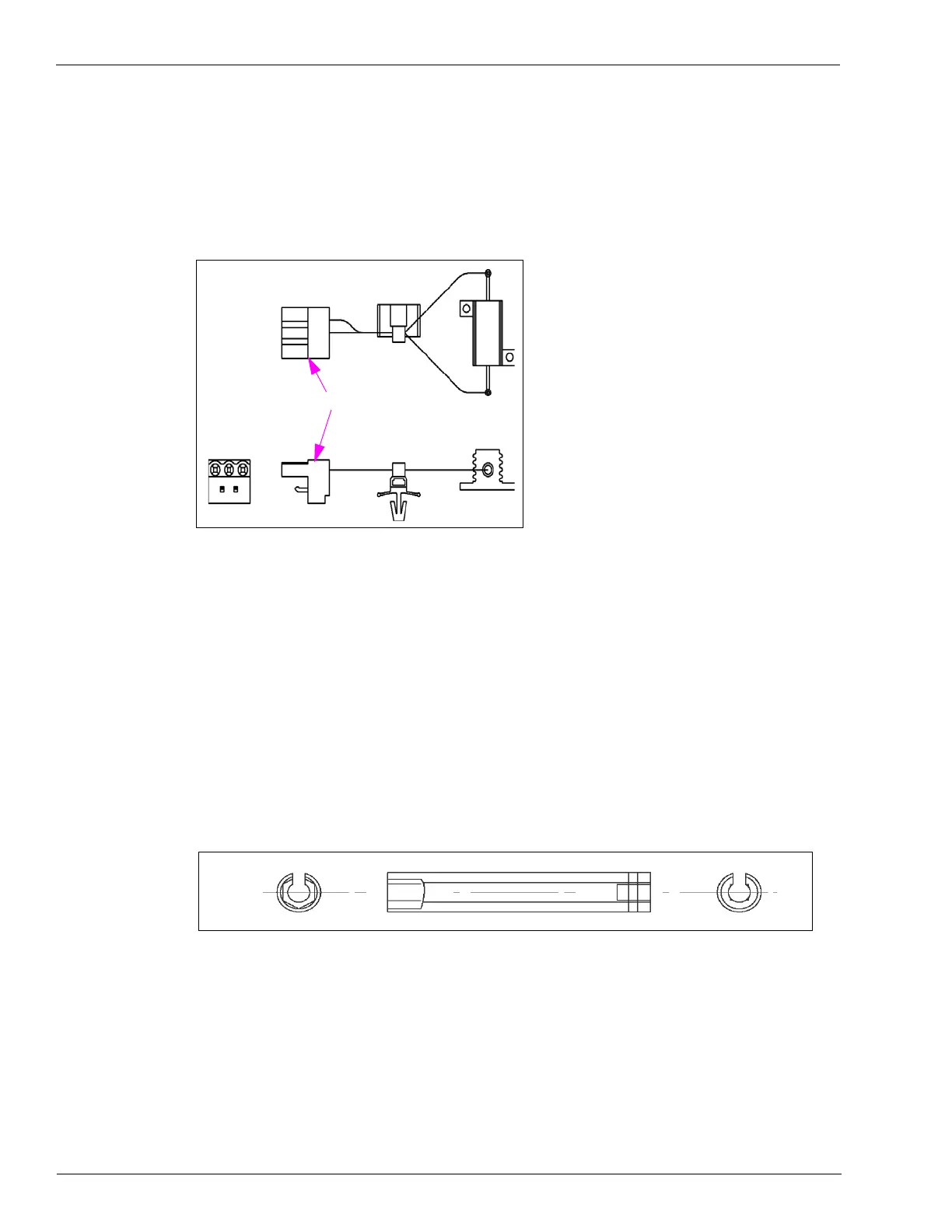

Figure 5-4: Dummy Load Transmitter
Co-axial Cable Tool (Q13628-01)
Co-axial Cable Tool is a hex-socket tool with a slit down its length. Co-axial cables are
(M00878A001, M00878A002, and Q13578-01) are used for transmission from TRIND
overhead antennas and come with hex connectors at either end. The Co-axial Cable Tool
allows the installer to tighten cable connections in tight areas of the TRIND Card Cage and
overhead connection box.
Note: Co-axial cable fits in to the slotted side of the
Co-axial Cable
Tool, allowing the socket
to surround the hex-head of the cable connector. This allows connections to be made
and tightened straight on, rather than from the side.
Figure 5-5: Co-axial Cable Tool
